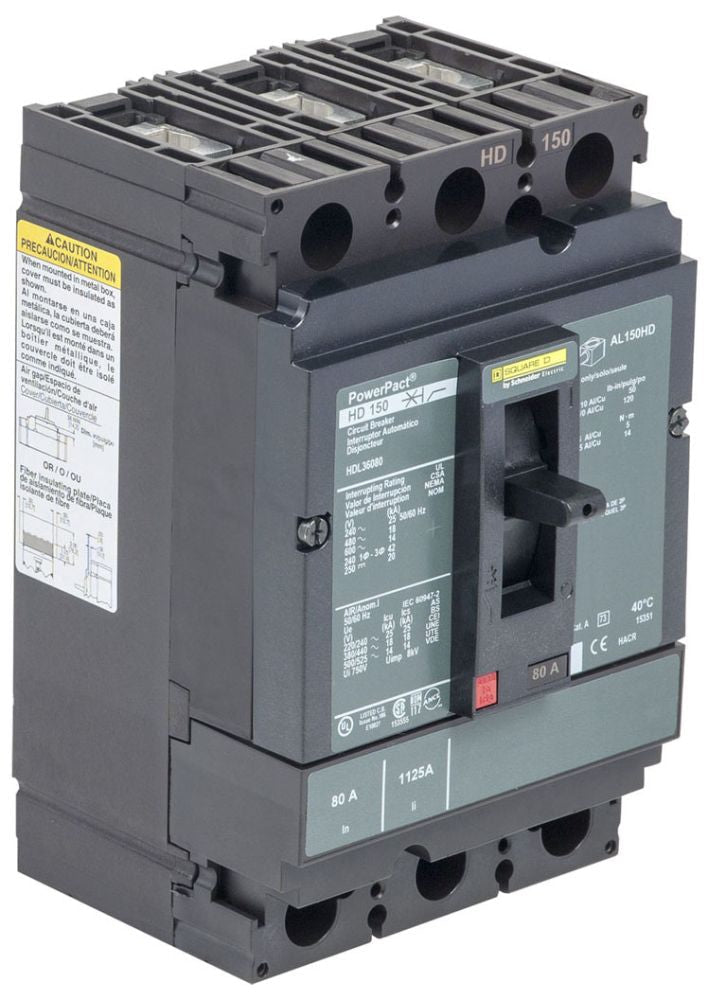

Square D HDL36080C Circuit Breaker | 600V 80A 3P 18kA@480V Bolt-On Powerpact
Square D HDL36080C Circuit Breaker | 600V 80A 3P 18kA@480V Bolt-On Powerpact
Price:
Sale
Sold out
Regular price
$748.63 USD
Regular price
$1,593.00 USD
Sale price
$748.63 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D HDL36080C is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 80 amp breaker rated for 600 Volts with an AIC rating of 18kA@480V. This unit features a bolt-on connection and provides thermal magnetic protection for reliable circuit interruption.
Key Features:
✔ Part Number: HDL36080C
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDL
✔ Voltage: 600
✔ Amperage: 80
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901682530
✔ GTIN: 00785901682530
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.81
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
The Square D HDL36080C is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 80 amp breaker rated for 600 Volts with an AIC rating of 18kA@480V. This unit features a bolt-on connection and provides thermal magnetic protection for reliable circuit interruption.
Key Features:
✔ Part Number: HDL36080C
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDL
✔ Voltage: 600
✔ Amperage: 80
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901682530
✔ GTIN: 00785901682530
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.81
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
