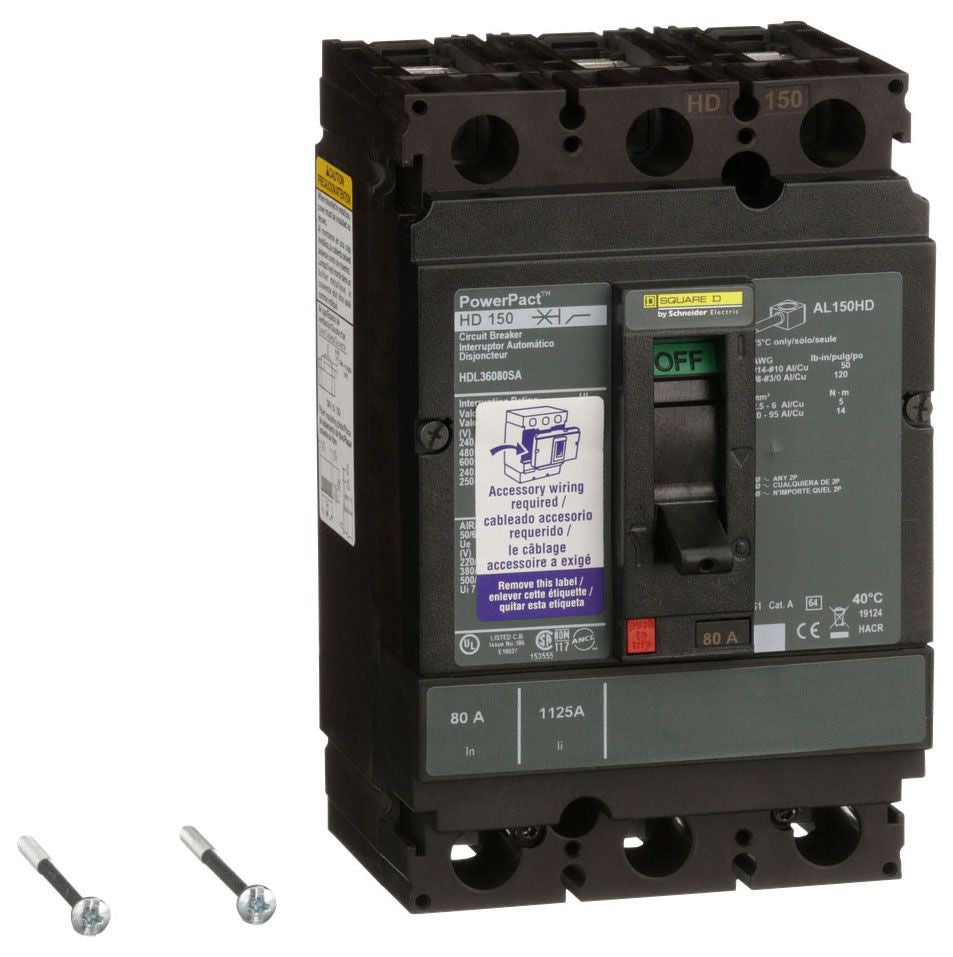

Square D HDL36080SA Circuit Breaker | 600V 80A 3P 18kA@480V Feed-Thru Powerpact

Product Description:
The Square D HDL36080SA is a Powerpact HDL series molded case circuit breaker designed for industrial and commercial electrical systems. It features a 3-pole configuration with a 600V voltage rating and 80A amperage capacity, providing reliable circuit protection. This breaker includes thermal magnetic protection and a feed-thru connection for efficient power distribution.

Key Features:
✔ Part Number: HDL36080SA
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDL
✔ Voltage: 600
✔ Amperage: 80
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: H Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901930662
✔ GTIN: 00785901930662
✔ Country of Origin: Mexico
✔ Dimensions: Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1.9
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
