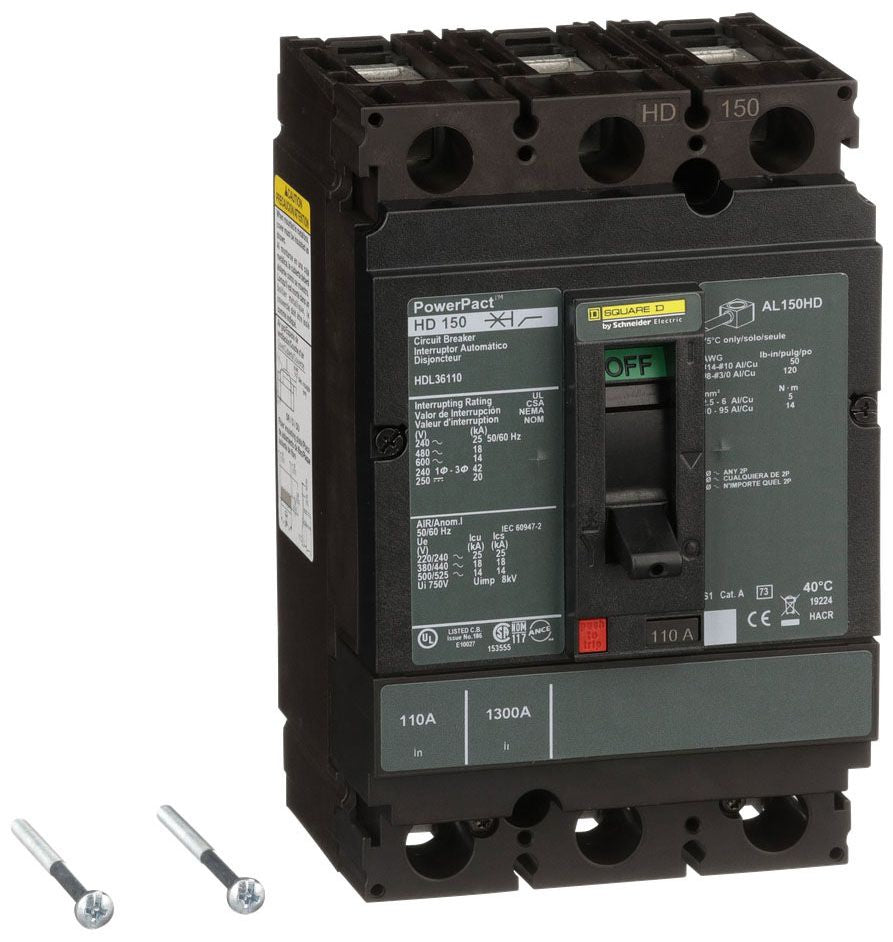

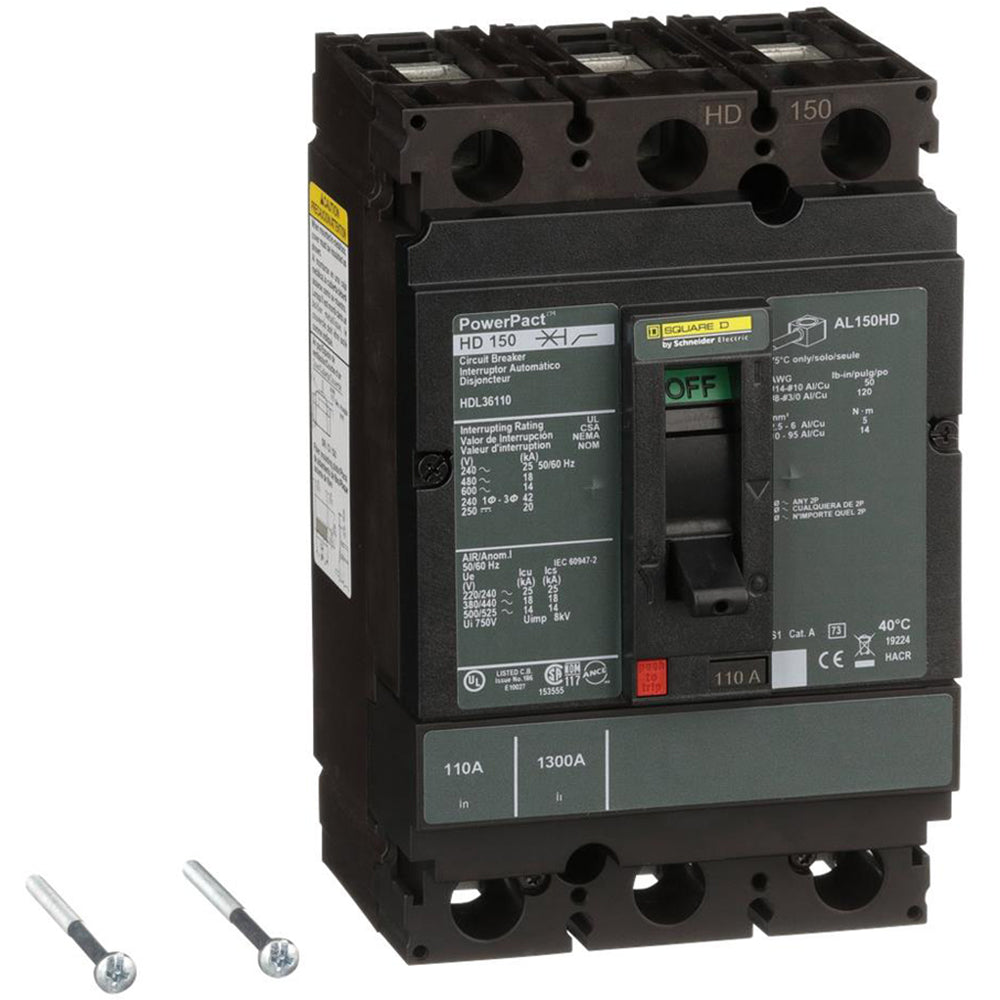

Square D HDL36110 Circuit Breaker | 600V 110A 3P 18kA@480V Feed-Thru Powerpact
Square D HDL36110 Circuit Breaker | 600V 110A 3P 18kA@480V Feed-Thru Powerpact
Price:
Sale
Sold out
Regular price
$522.32 USD
Regular price
$2,600.00 USD
Sale price
$522.32 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 1 left
Couldn't load pickup availability
Product Description:
The Square D HDL36110 is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and 110A amperage with an 18kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: HDL36110
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDL
✔ Voltage: 600
✔ Amperage: 110
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901623199
✔ GTIN: 00785901623199
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.86
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
