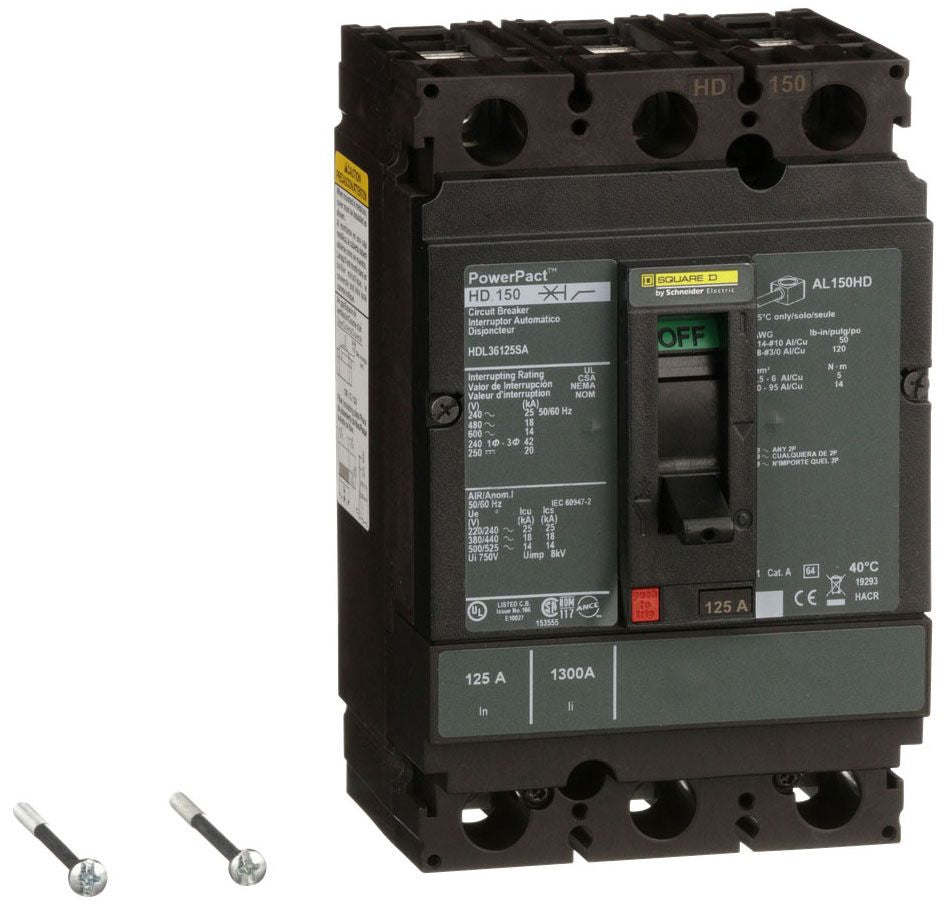

Square D HDL36125SA Circuit Breaker | 600V 125A 3P 18kA@480V Bolt-On Powerpact

Product Description:
The Square D HDL36125SA is a Powerpact family molded case circuit breaker designed for robust electrical protection. It is a 3-pole, 125 amp breaker rated for 600 volts with an 18kA interrupting capacity at 480V. This thermal magnetic circuit breaker features a bolt-on connection and includes a 110/130Vac shunt trip for enhanced control.

Key Features:
✔ Part Number: HDL36125SA
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDL
✔ Voltage: 600
✔ Amperage: 125
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901568483
✔ GTIN: 00785901568483
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.9
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
