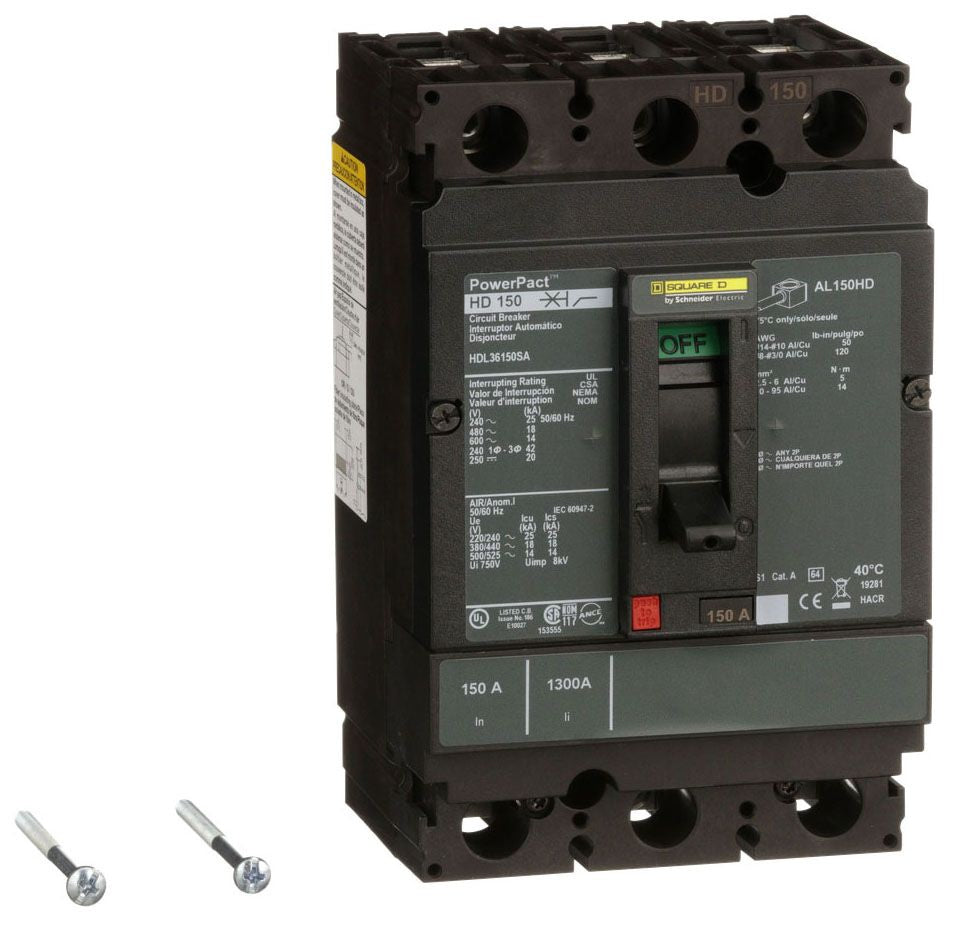

Square D HDL36150SA Circuit Breaker | 600V 150A 3P 18kA@480V Feed-Thru Powerpact

Product Description:
The Square D HDL36150SA is a Powerpact family Molded Case Circuit Breaker designed for industrial and commercial electrical systems. It is a 3-pole, 150 amp breaker rated for 600 volts with an 18kA interrupting capacity at 480V. This model features thermal magnetic protection and a feed-thru connection, and it comes complete with a 110/130Vac shunt trip.

Key Features:
✔ Part Number: HDL36150SA
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDL
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: H Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901581888
✔ GTIN: 00785901581888
✔ Country of Origin: Mexico
✔ Dimensions: Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1.9
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
