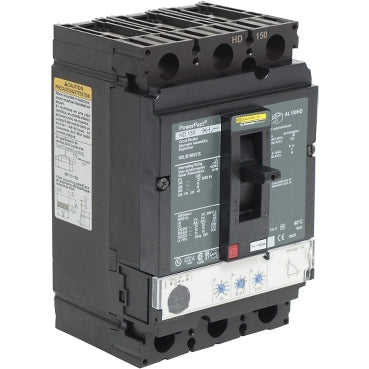

Square D HDL36150SN Circuit Breaker | Powerpact HDL 600V 150A
Square D HDL36150SN Circuit Breaker | Powerpact HDL 600V 150A
Price:
Sale
Sold out
Regular price
$1,133.27 USD
Regular price
$3,776.00 USD
Sale price
$1,133.27 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 1 left
Couldn't load pickup availability
Product Description:
The Square D HDL36150SN is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 150A rating and an 18kA@480V AIC rating. This breaker includes Thermal Magnetic protection and a Feed-Thru connection. It also comes with a 12Vdc shunt trip for added functionality.
Key Features:
✔ Part Number: HDL36150SN
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDL
✔ Voltage: 600V
✔ Amperage: 150A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Frame Size: H Frame
✔ UPC: 078590157598
✔ GTIN: 00785901575986
✔ Dimensions: 6.42" H x 3.09" D x 4.44" W (163mm x 78.49mm x 112.78mm)
✔ Weight: 5 lbs
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
The Square D HDL36150SN is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 150A rating and an 18kA@480V AIC rating. This breaker includes Thermal Magnetic protection and a Feed-Thru connection. It also comes with a 12Vdc shunt trip for added functionality.
Key Features:
✔ Part Number: HDL36150SN
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDL
✔ Voltage: 600V
✔ Amperage: 150A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Frame Size: H Frame
✔ UPC: 078590157598
✔ GTIN: 00785901575986
✔ Dimensions: 6.42" H x 3.09" D x 4.44" W (163mm x 78.49mm x 112.78mm)
✔ Weight: 5 lbs
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
