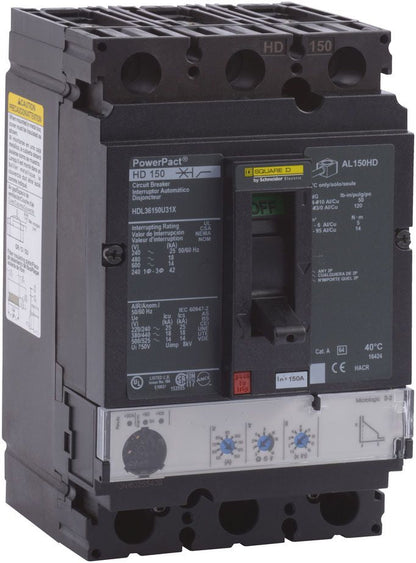

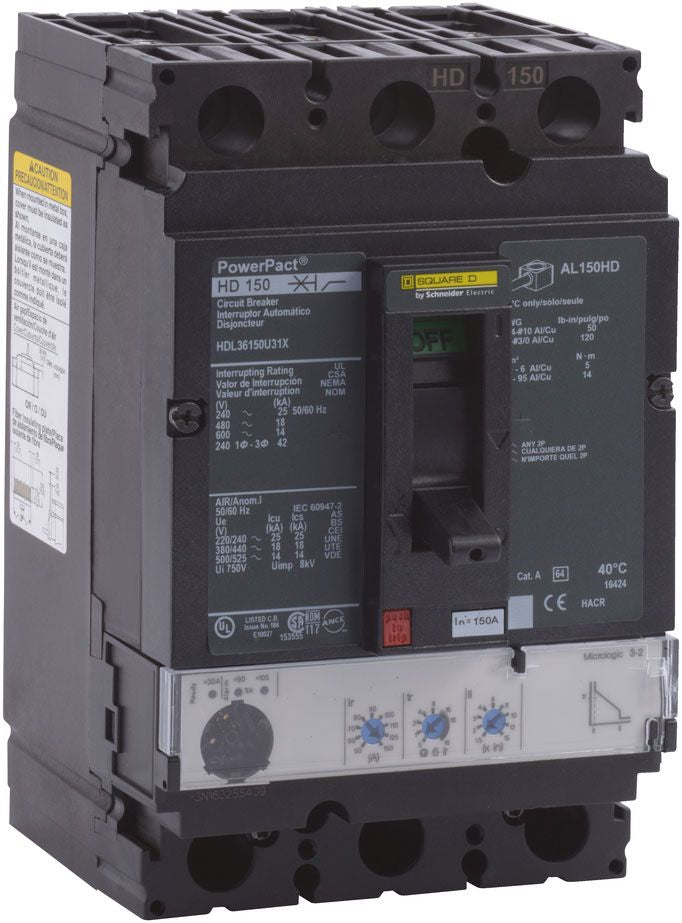

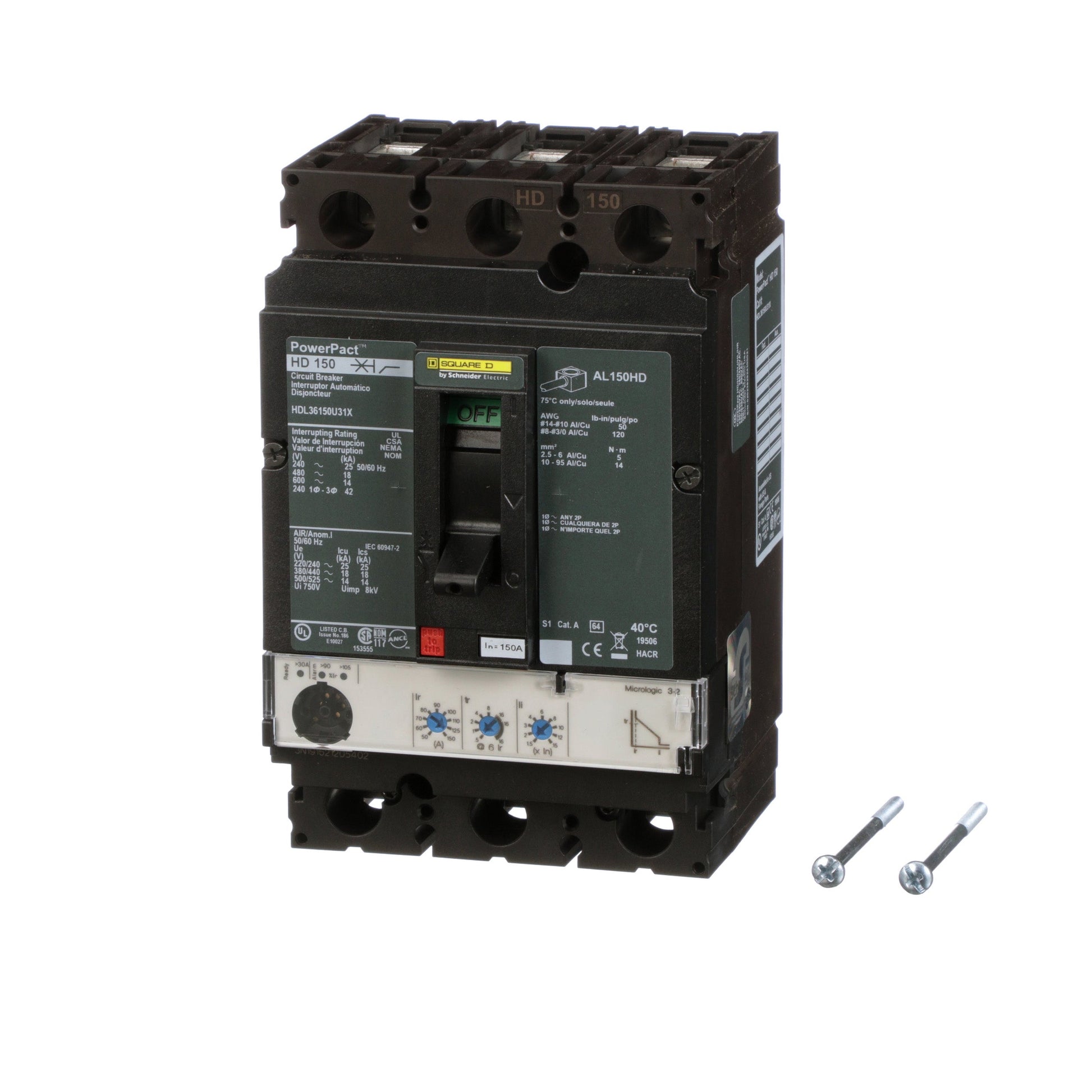

Square D HDL36150U31X Circuit Breaker | 600V 150A 3P 18kA@480V Feed-Thru Powerpact
Square D HDL36150U31X Circuit Breaker | 600V 150A 3P 18kA@480V Feed-Thru Powerpact
Price:
Sale
Sold out
Regular price
$906.19 USD
Regular price
$2,759.00 USD
Sale price
$906.19 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 1 left
Couldn't load pickup availability
Product Description:
The Square D HDL36150U31X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 150 amp rating with an 18kA@480V AIC rating. This circuit breaker uses a Feed-Thru connection and includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: HDL36150U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDL
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ Wire Size: Min. 14 AWG (Cu/Al) Max. 3/0 AWG (Cu/Al)
✔ Protection: Solid State
✔ UPC: 785901548676
✔ GTIN: 00785901548676
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 2.85
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
