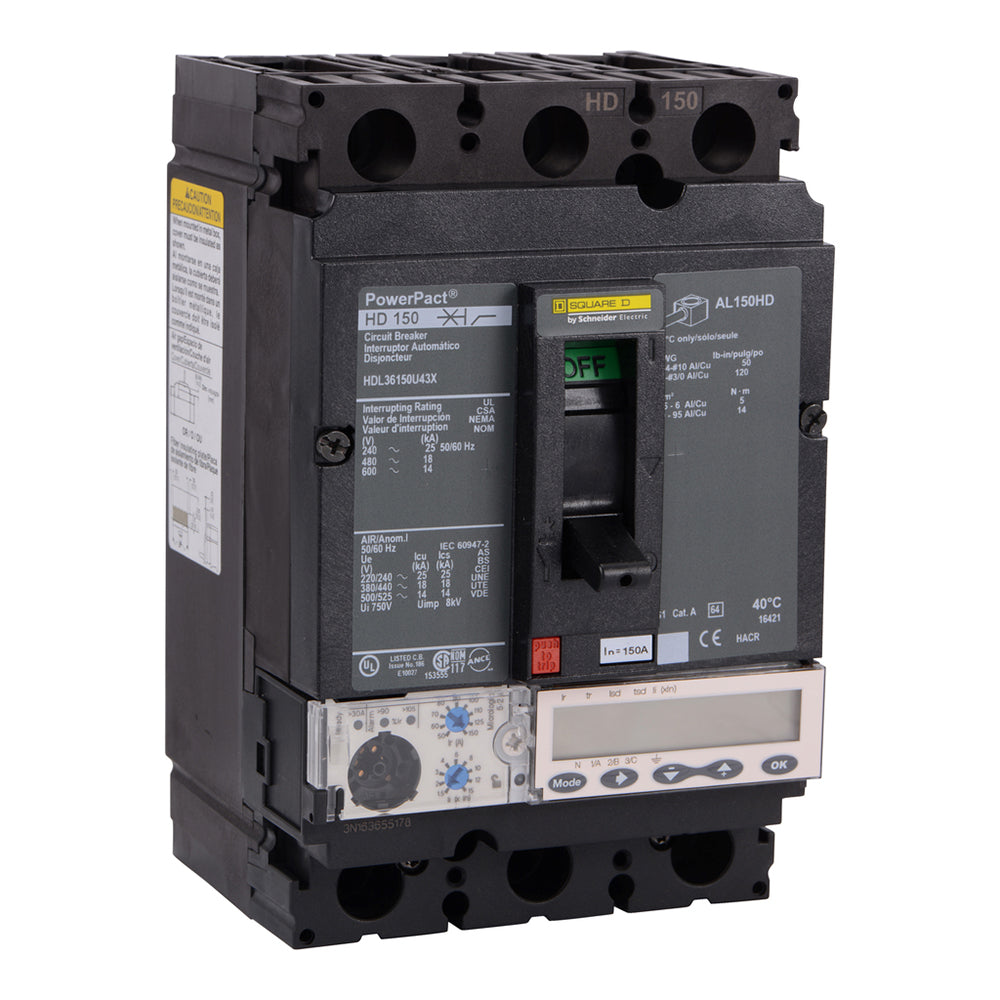

Square D HDL36150U43X Molded Case Circuit Breaker | 600V 150A 3P A@480V Feed-Thru Powerpact

Product Description:
The Square D HDL36150U43X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 600 Volt, 150 amp rated breaker with an AIC rating of A@480V. This circuit breaker features a Feed-Thru connection and includes Solid State protection.

Key Features:
✔ Part Number: HDL36150U43X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDL
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: A@480V
✔ Connection: Feed-Thru
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Solid State
✔ UPC: 785901012122
✔ GTIN: 00785901012122
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 2.27
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
