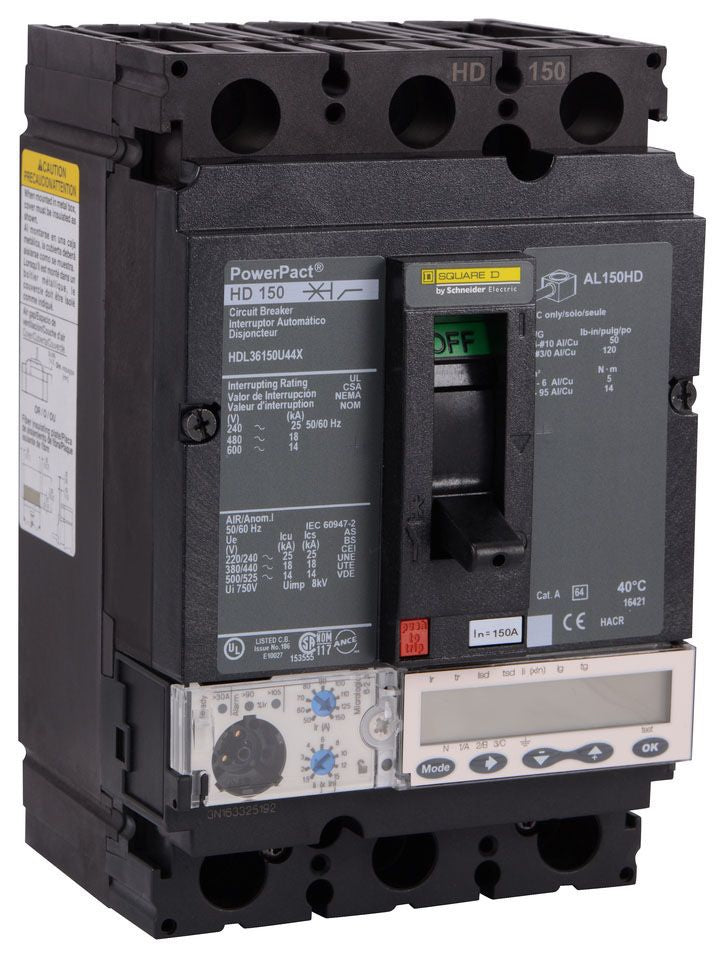

Square D HDL36150U44X Circuit Breaker | 600V 150A 3P 18kA@480V Feed-Thru Powerpact
Square D HDL36150U44X Circuit Breaker | 600V 150A 3P 18kA@480V Feed-Thru Powerpact
Price:
Sale
Sold out
Regular price
$1,545.47 USD
Regular price
$4,263.00 USD
Sale price
$1,545.47 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 2 left
Couldn't load pickup availability
Product Description:
The Square D HDL36150U44X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole breaker rated for 600 Volts and 150 amps, with an AIC rating of 18kA@480V. This circuit breaker features solid state protection and a feed-thru connection for reliable performance.
Key Features:
✔ Part Number: HDL36150U44X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDL
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Solid State
✔ UPC: 785901085478
✔ GTIN: 00785901085478
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 2.27
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
