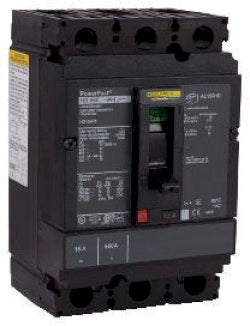

Square D HDP36100 Circuit Breaker | 600V 100A 3P 18kA@480V Bolt-On Powerpact HDP

Product Description:
The Square D HDP36100 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 100 amp breaker rated for 600 volts with an AIC rating of 18kA@480V. This unit features a bolt-on connection and provides thermal magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: HDP36100
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDP
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug, Terminal Nut
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901582052
✔ GTIN: 00785901582052
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.91
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
