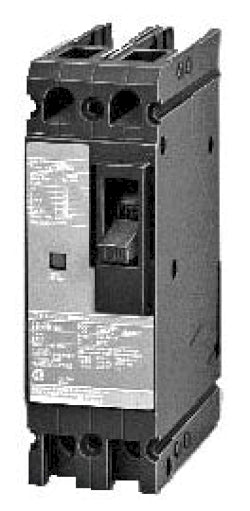

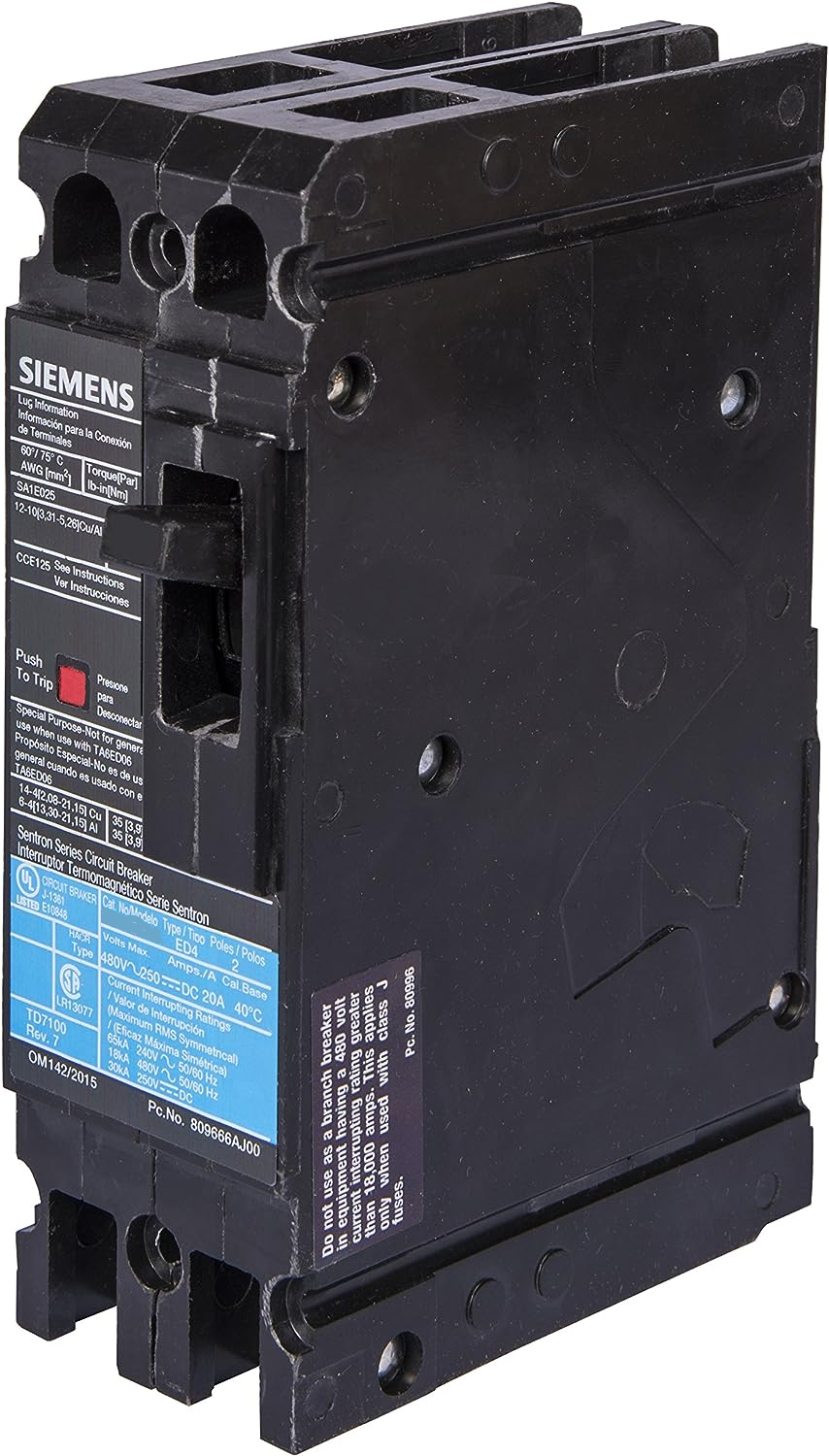

Siemens HED42B015 Circuit Breaker | 480V 15A 2P 42kA@480V Sentron Series

Product Description:
The Siemens HED42B015 is a Molded Case Circuit Breaker from the Sentron Series family. It is a 2-pole, 480V, 15A breaker with a 42kA@480V AIC rating and thermal magnetic protection. Designed for use in SB Switchboards and Sentron Panelboards, it features a lug-in panelboard connection and complies with IEC 60947-2 and UL 489 standards.

Key Features:
✔ Part Number: HED42B015
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: HED
✔ Voltage: 480
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 42kA@480V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ Phase Connection: Any
✔ UPC: 783643209947
✔ GTIN: 00783643209947
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 6.35 in
✔ Weight: 5
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: IEC 60947-2, UL 489
✔ Certification: IEC 60947-2, UL 489
