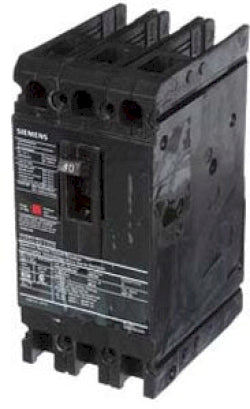

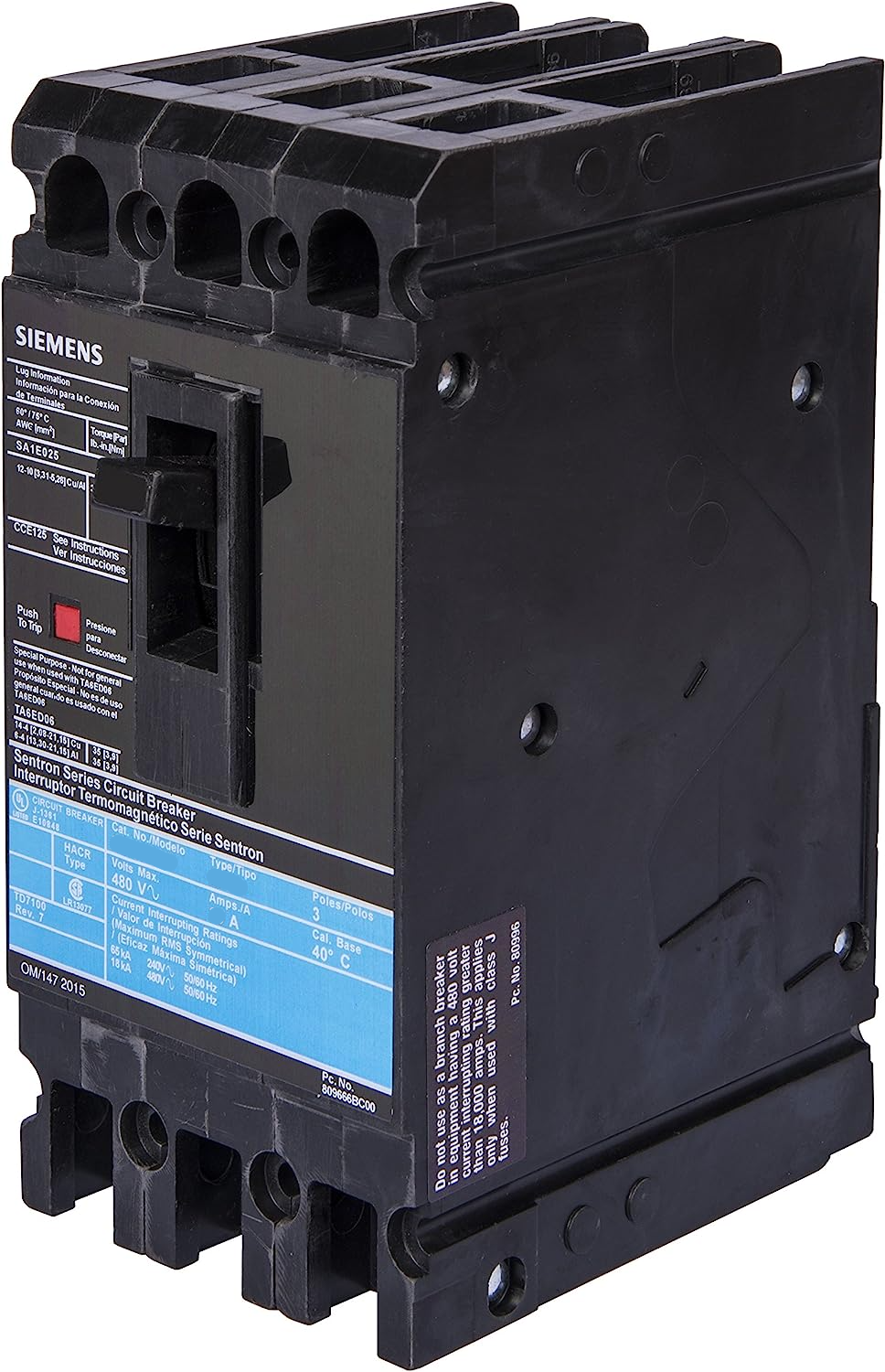

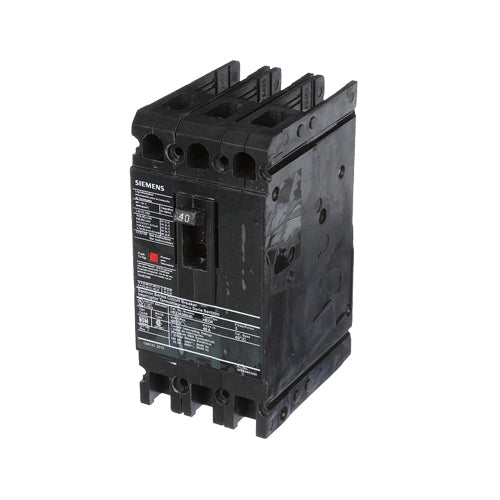

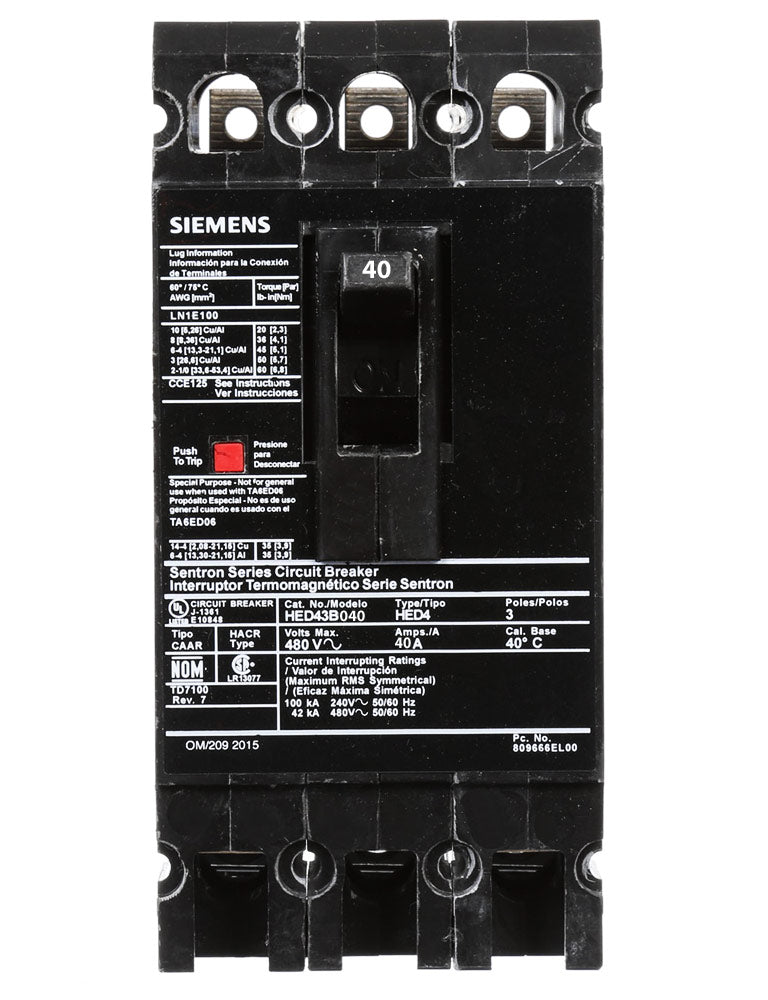

Siemens HED43B040 Molded Case Circuit Breaker | 480V 40A 3P 42kA@480V Lug In Panelboard Sentron Series

Product Description:
The Siemens HED43B040 is a Molded Case Circuit Breaker from the Sentron Series family. It is a 3-pole, 40 amp breaker rated for 480 volts with an interrupting capacity of 42kA. This model features thermal magnetic protection and is designed for use with a lug-in panelboard connection.

Key Features:
✔ Part Number: HED43B040
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: HED
✔ Voltage: 480
✔ Amperage: 40
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 42kA@480V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 783643210141
✔ GTIN: 00783643210141
✔ Country of Origin: United States
✔ Dimensions: 3 in x 6.34 in
✔ Weight: 7
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
✔ Wire Size: 10 to 1/0 AWG Aluminum/Copper
