Images are for reference only
Siemens

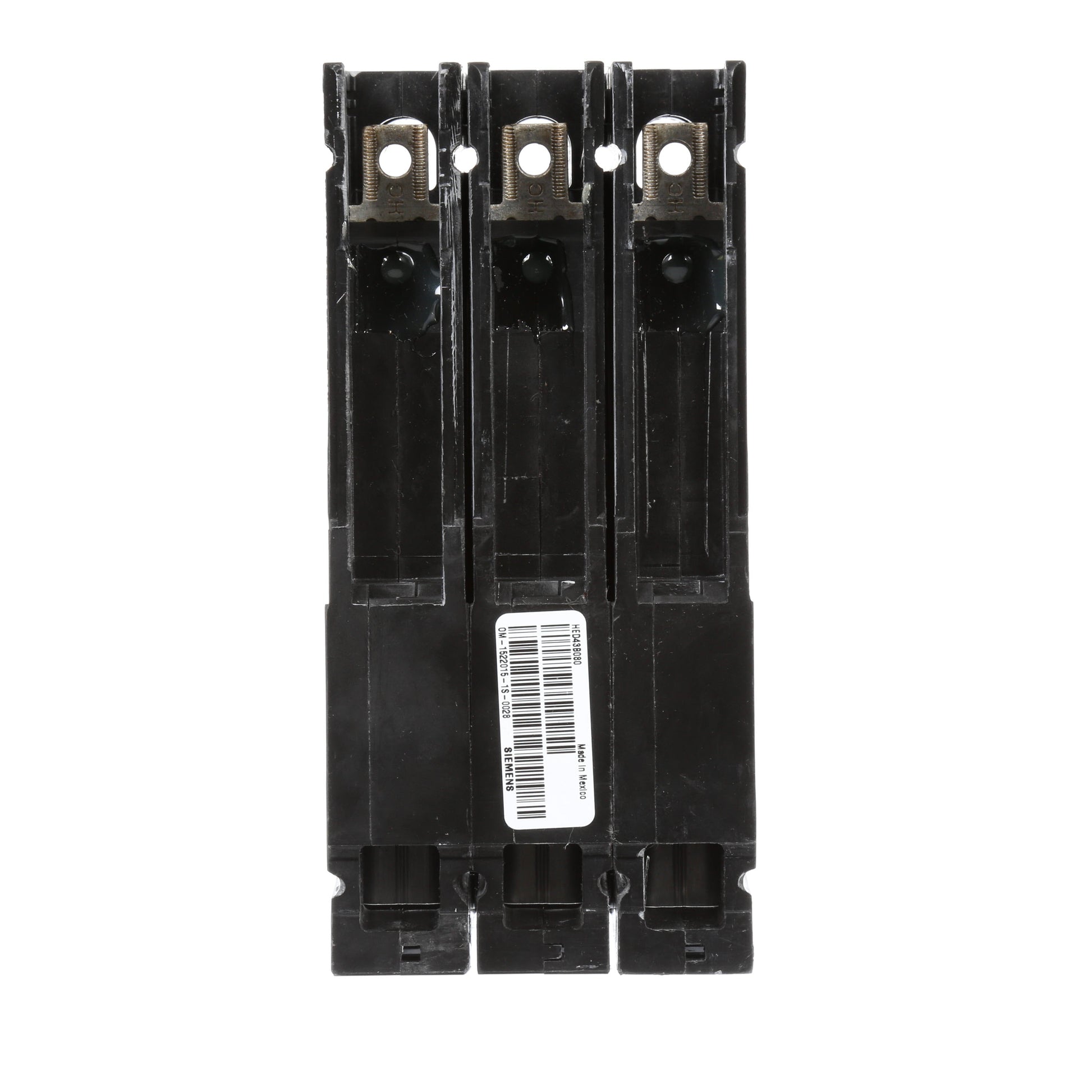

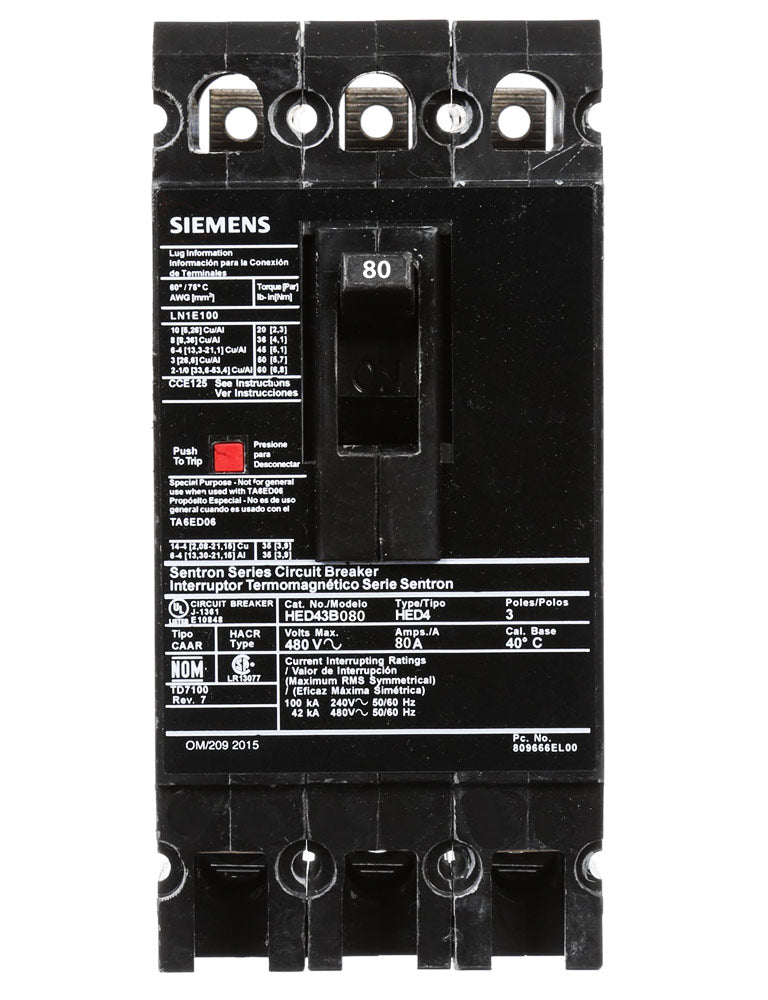

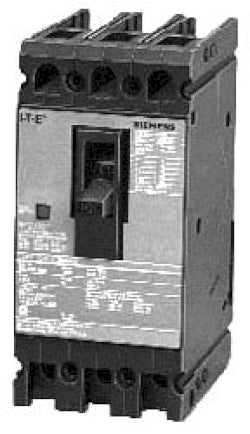

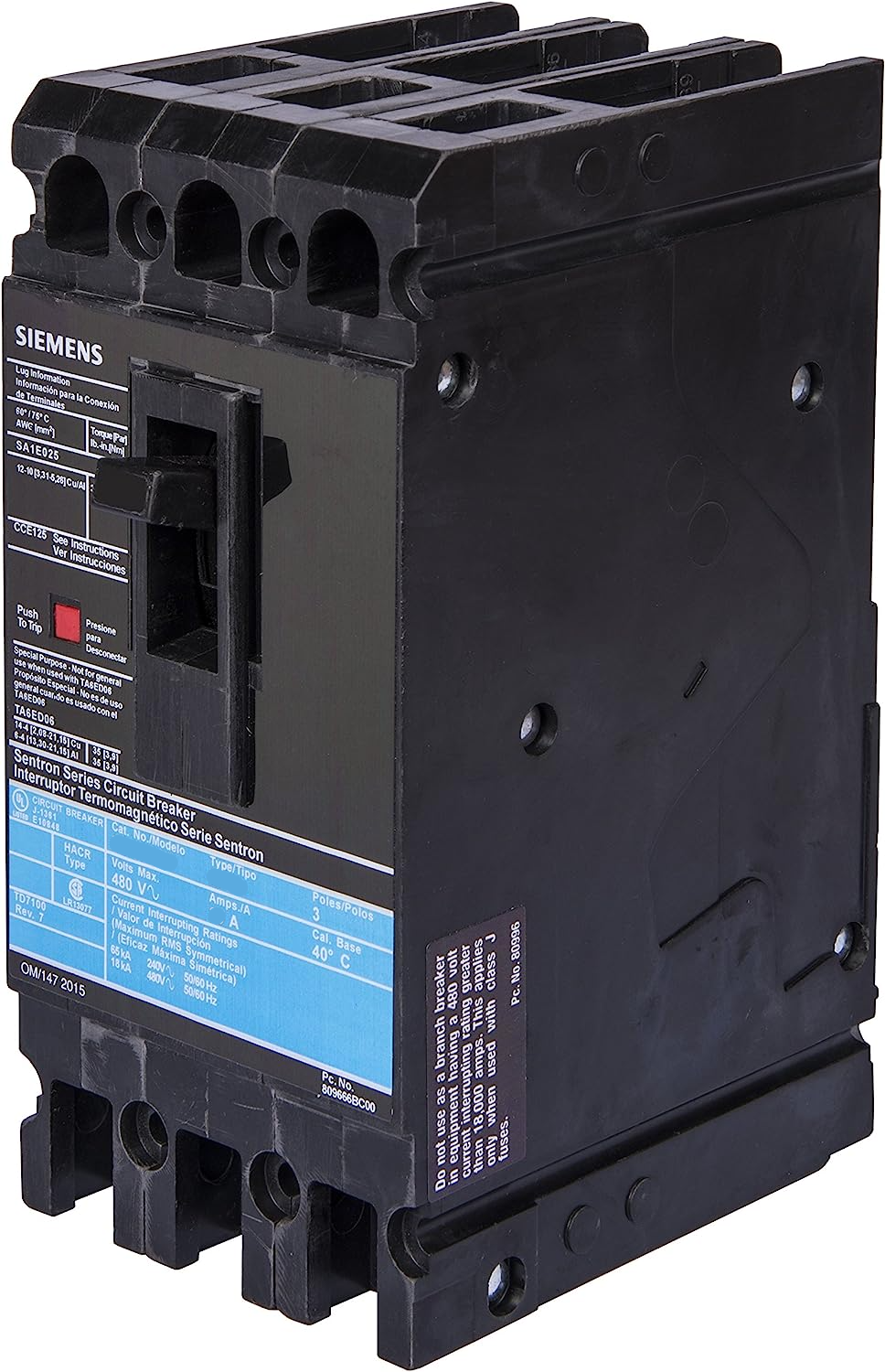

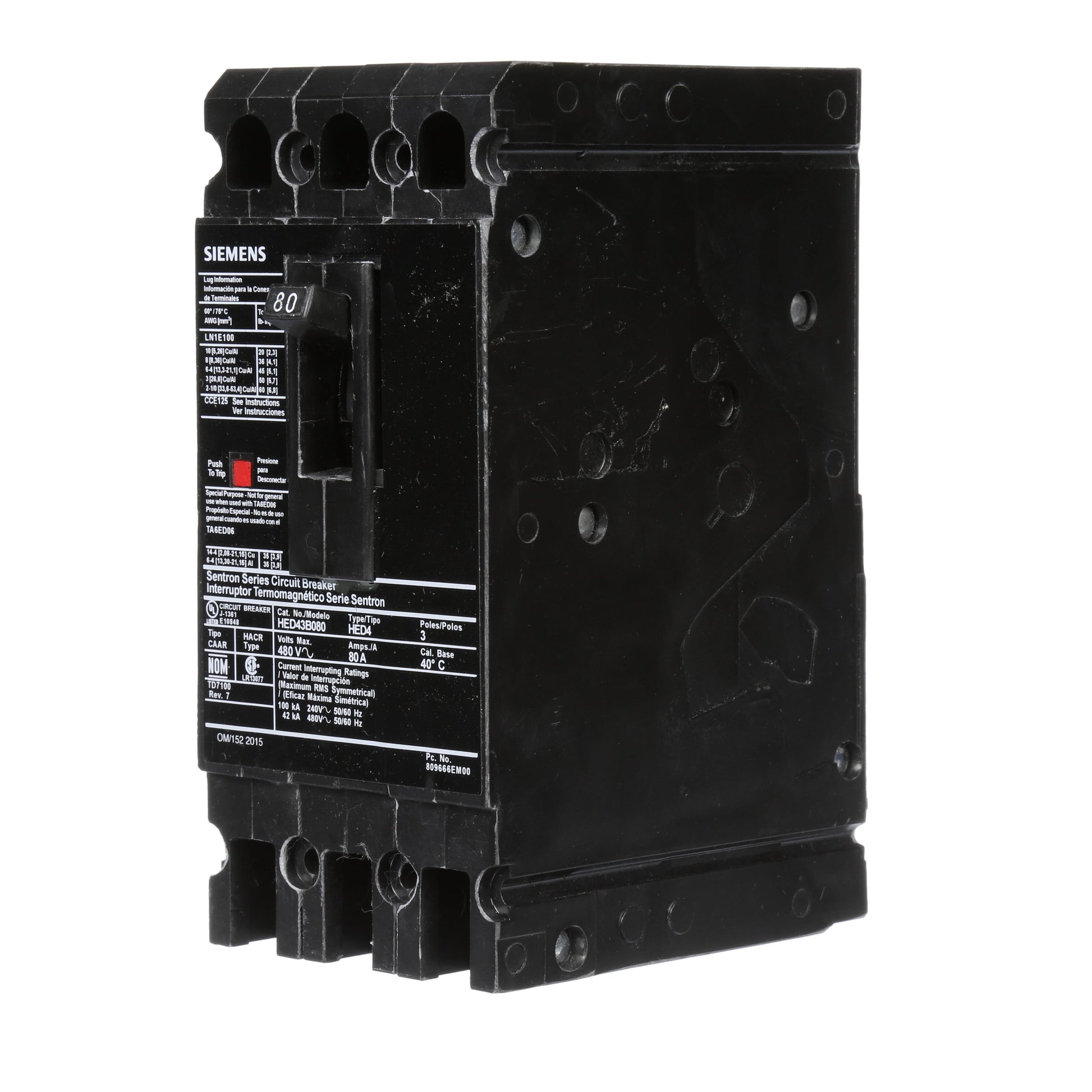

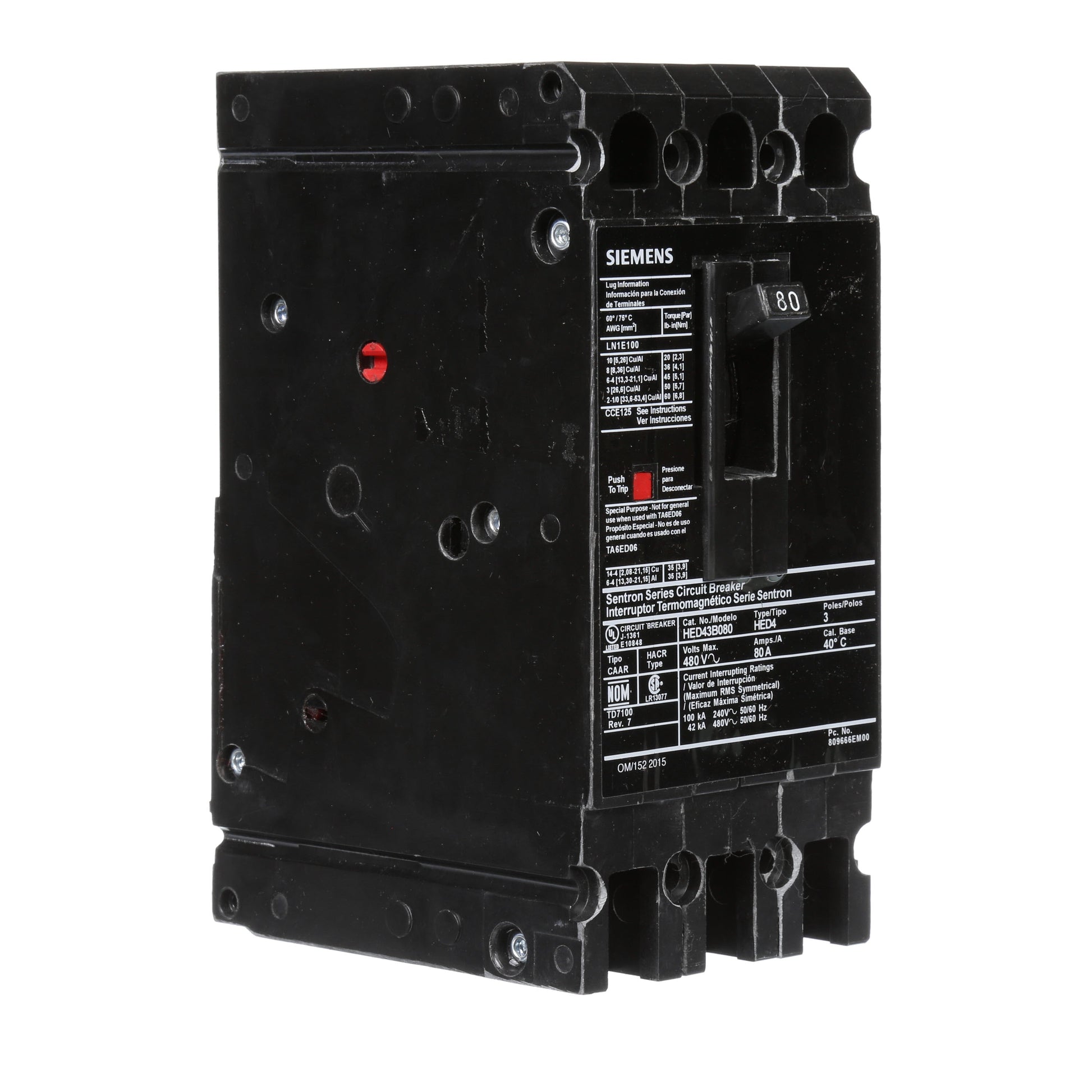

Siemens HED43B080 Circuit Breaker | 480V 80A 3P 42kA@480V Lug In Panelboard Sentron Series
Siemens HED43B080 Circuit Breaker | 480V 80A 3P 42kA@480V Lug In Panelboard Sentron Series
Price:
Sale
Sold out
Regular price
$612.46 USD
Regular price
$4,897.00 USD
Sale price
$612.46 USD
Unit price
per
Shipping calculated at checkout.
Stock:
30 in stock
Couldn't load pickup availability
Product Description:
The Siemens HED43B080 is a Molded Case Circuit Breaker from the Sentron Series family. It is a 3-pole, 80 amp breaker rated for 480 volts with an interrupting capacity of 42kA. This thermal magnetic breaker features a lug-in panelboard connection for reliable electrical protection.
Key Features:
✔ Part Number: HED43B080
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: HED
✔ Voltage: 480
✔ Amperage: 80
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 42kA@480V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 783643210196
✔ GTIN: 00783643210196
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 6.34 in
✔ Weight: 7
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
