Product Description:

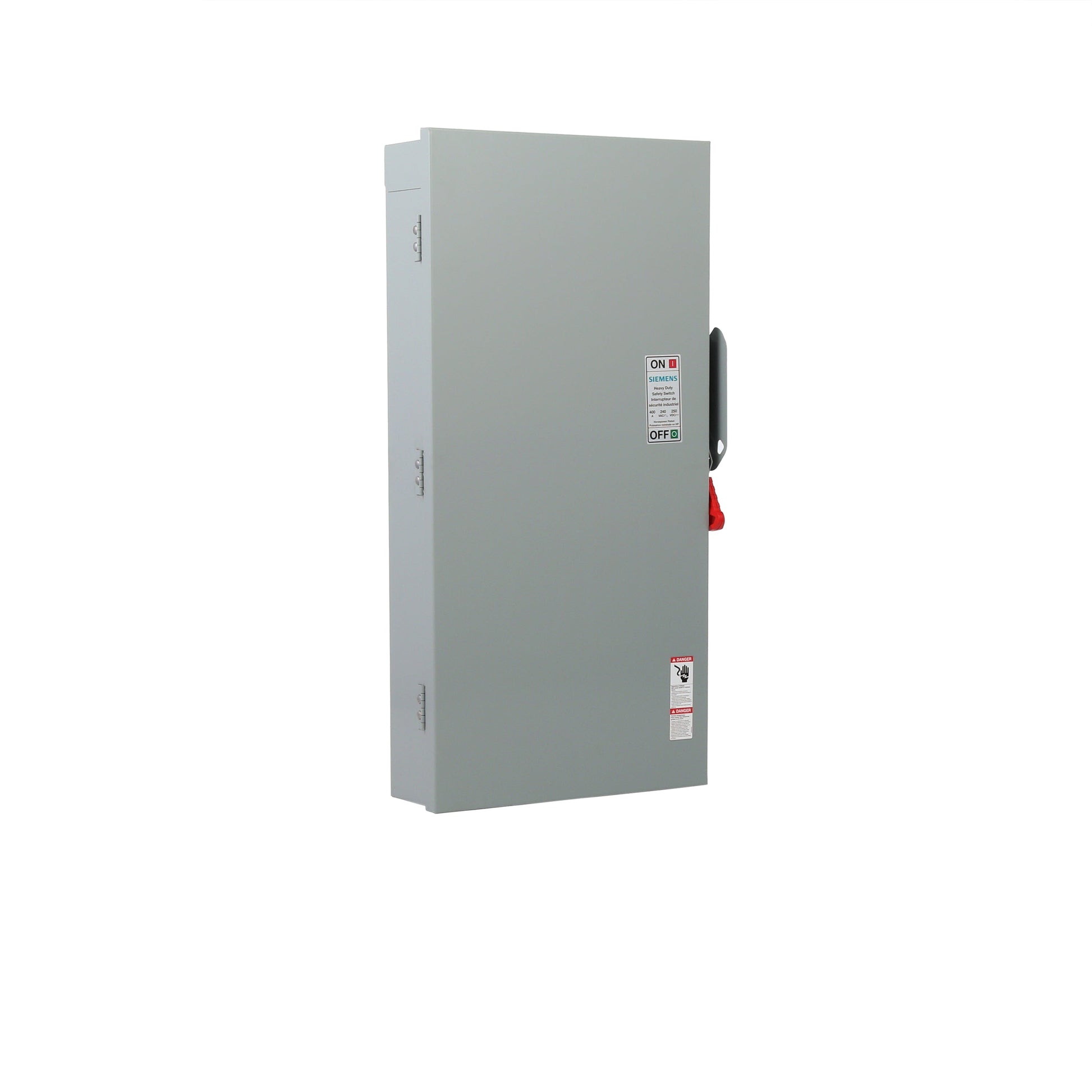

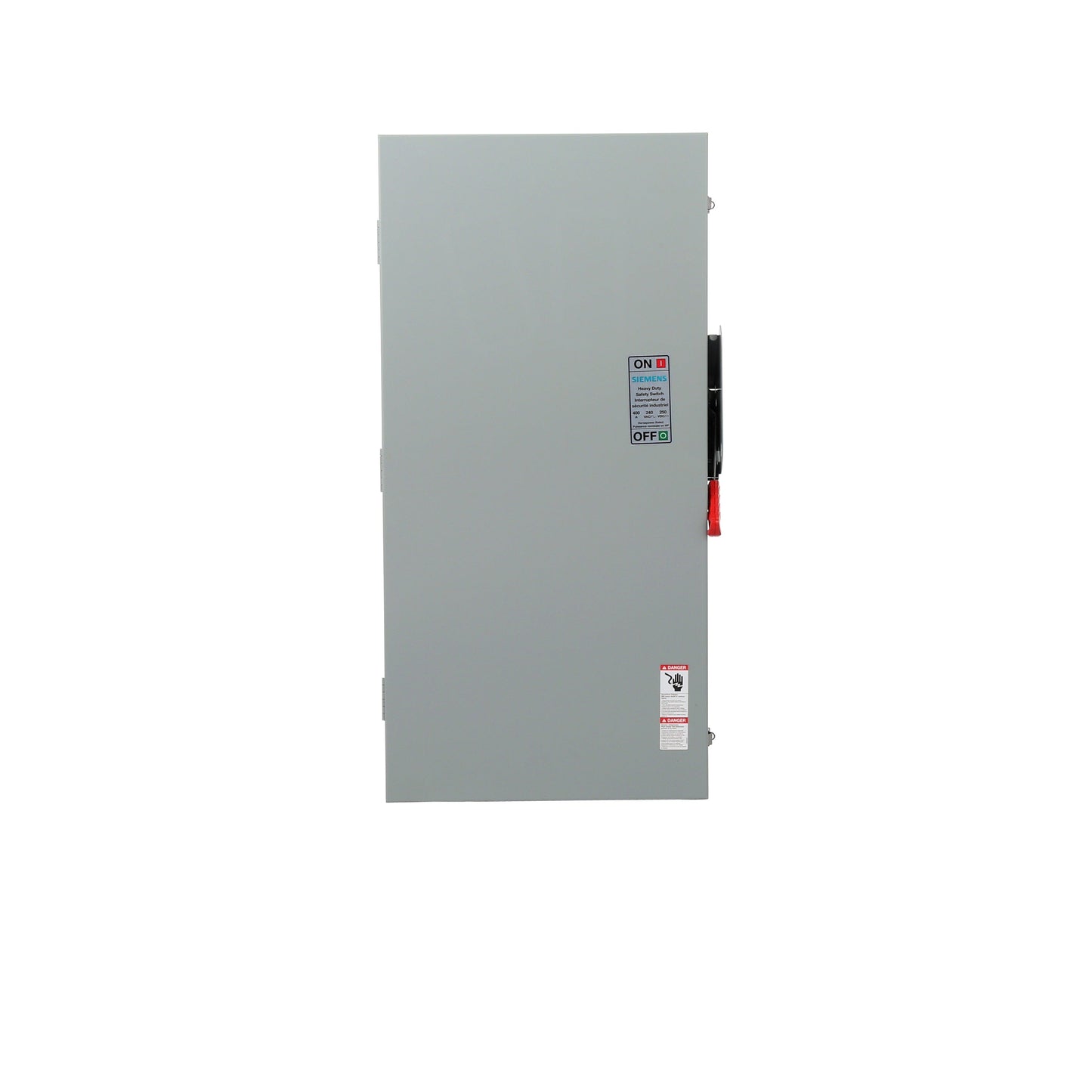

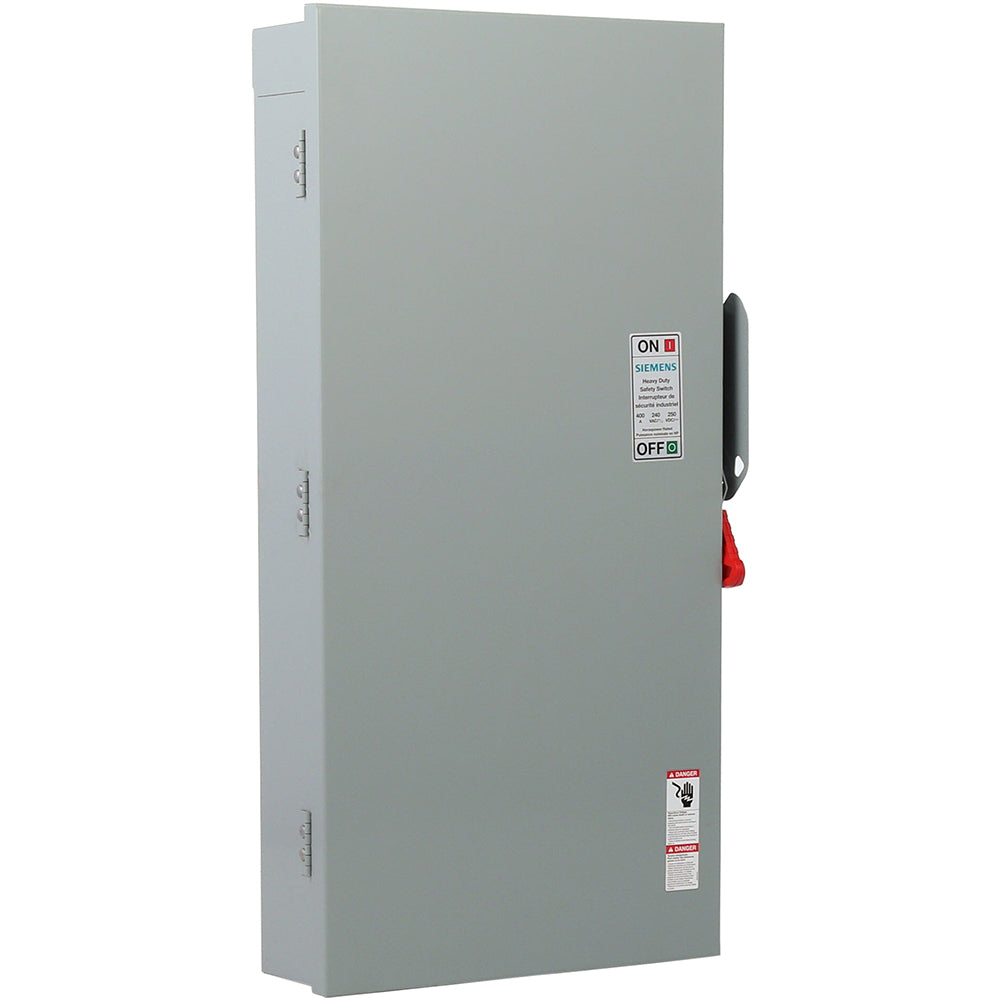

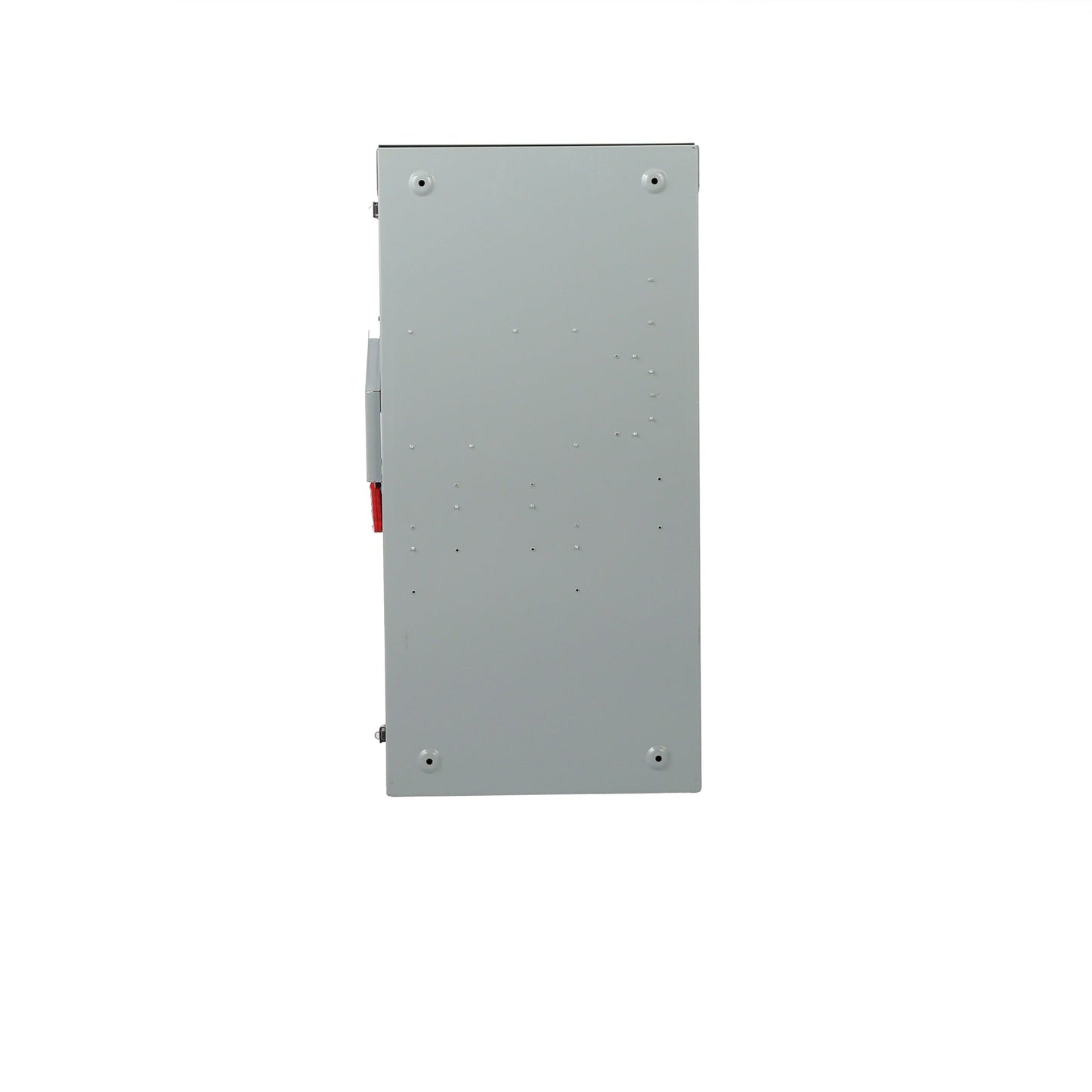

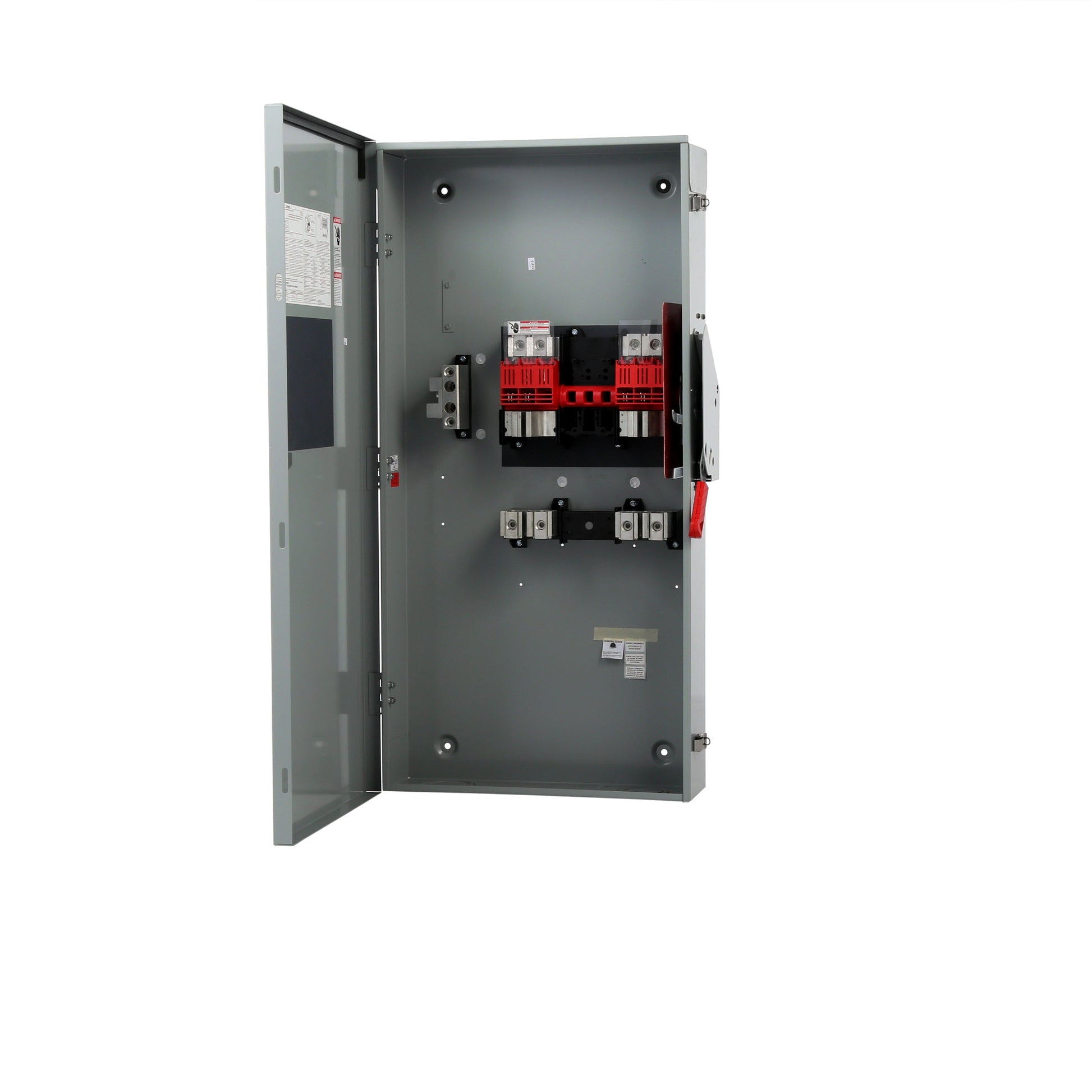

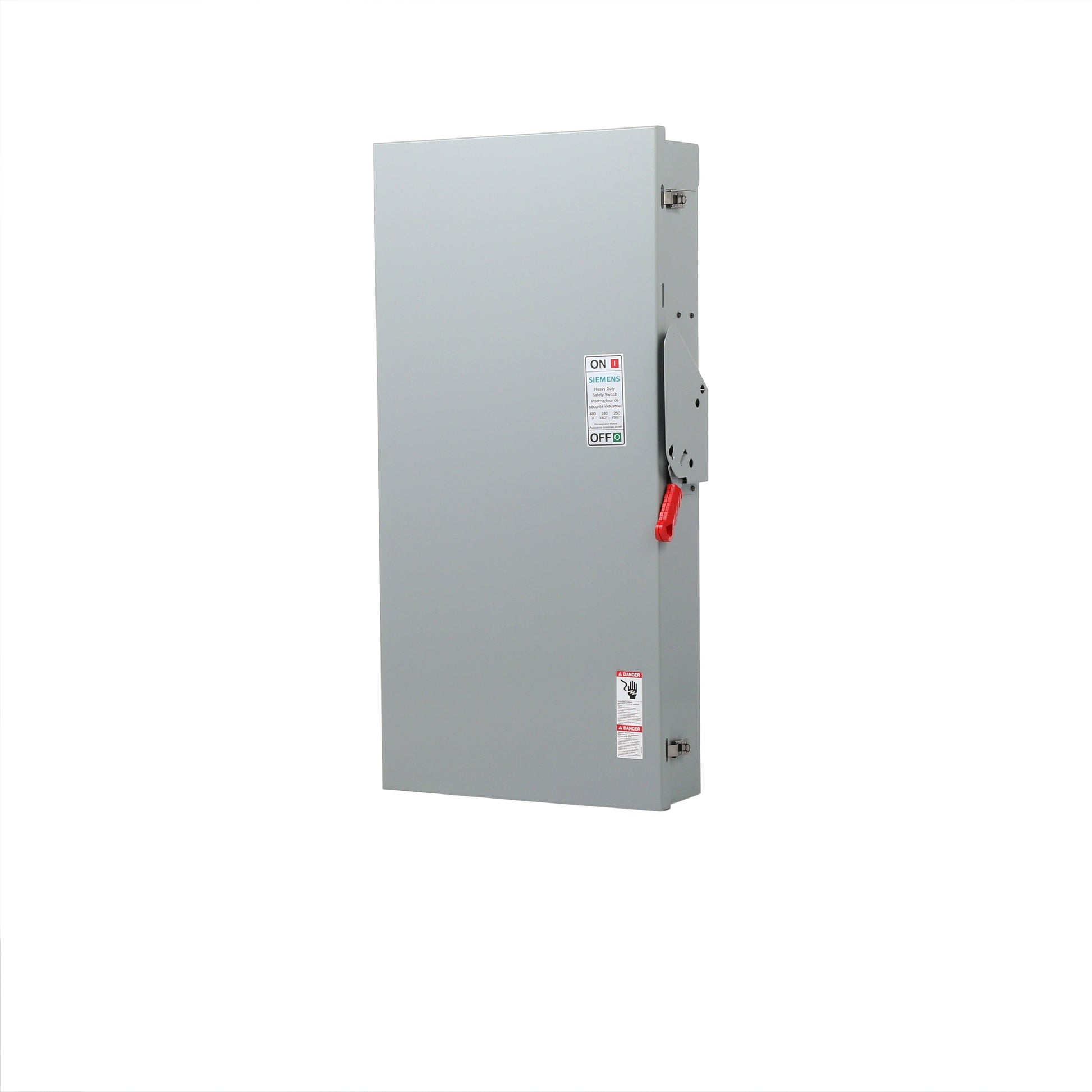

The Siemens HF225NRA is a heavy-duty 3-phase disconnect switch designed for industrial applications. It features a 240V/400A capacity with a NEMA 3R rating for outdoor use and a high 200kA@600V AIC rating. This fusible switch is part of the VBII Series and offers reliable circuit protection with class R fuses.
Key Features:
✔ Part Number: HF225NRA
✔ Manufacturer: Siemens
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: VBII Series
✔ Type: HF
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 1
✔ Poles: 3
✔ AIC rating: 200kA@240V
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: NEMA 3R
✔ Amperage Maximum: 400
✔ Amperage Minimum: 200
✔ Switch Type: Fusible
✔ UPC: 887621872618
✔ GTIN: 00887621872618
✔ Country of Origin: Mexico
✔ Dimensions: 22.047 x 6.693 x 45.276
✔ Weight: 99.8 lb
