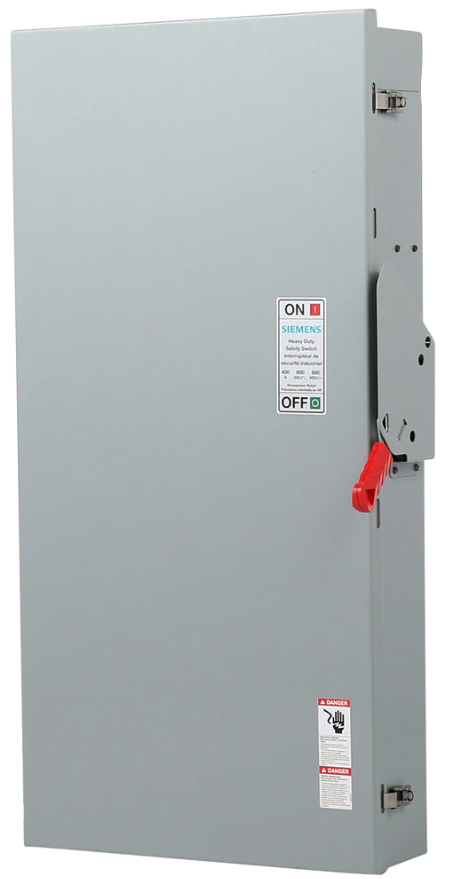

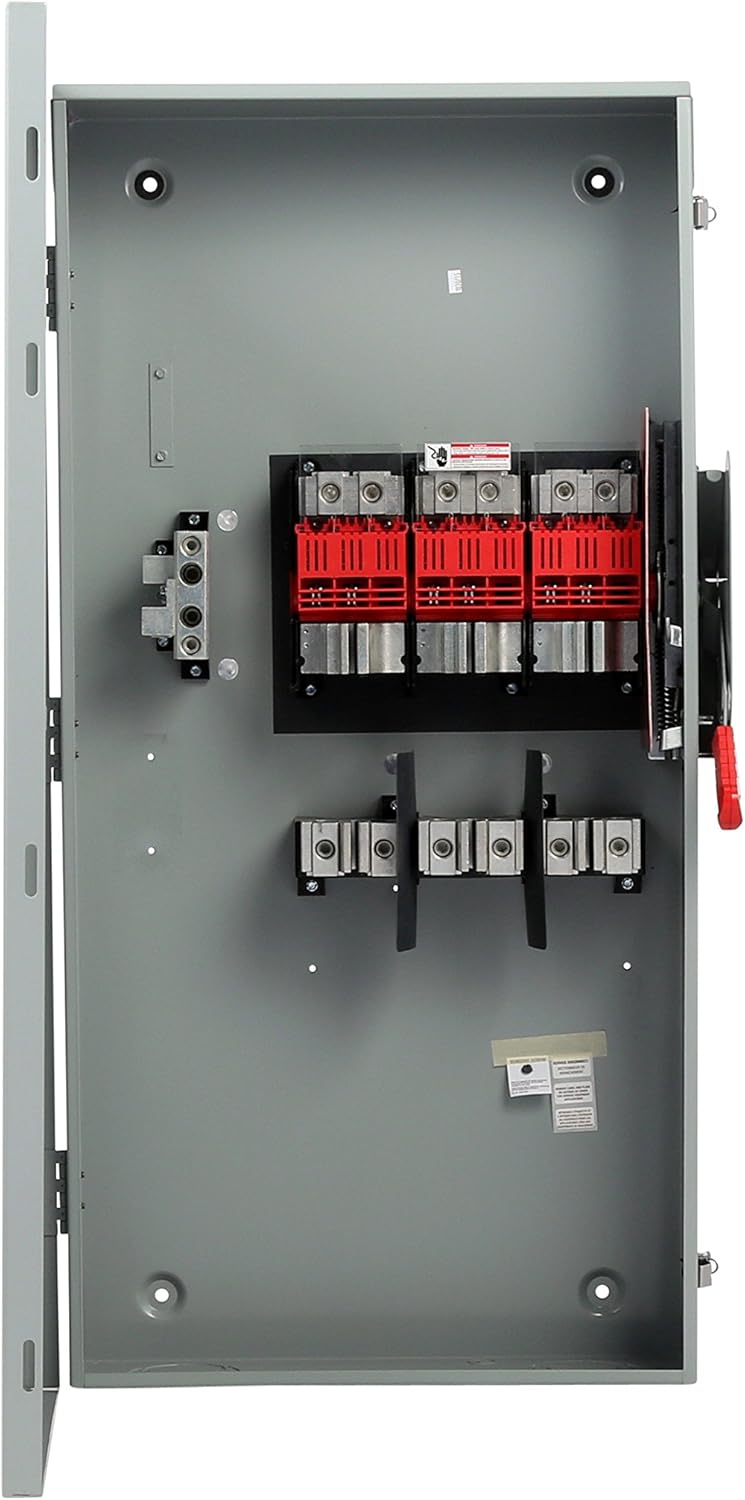

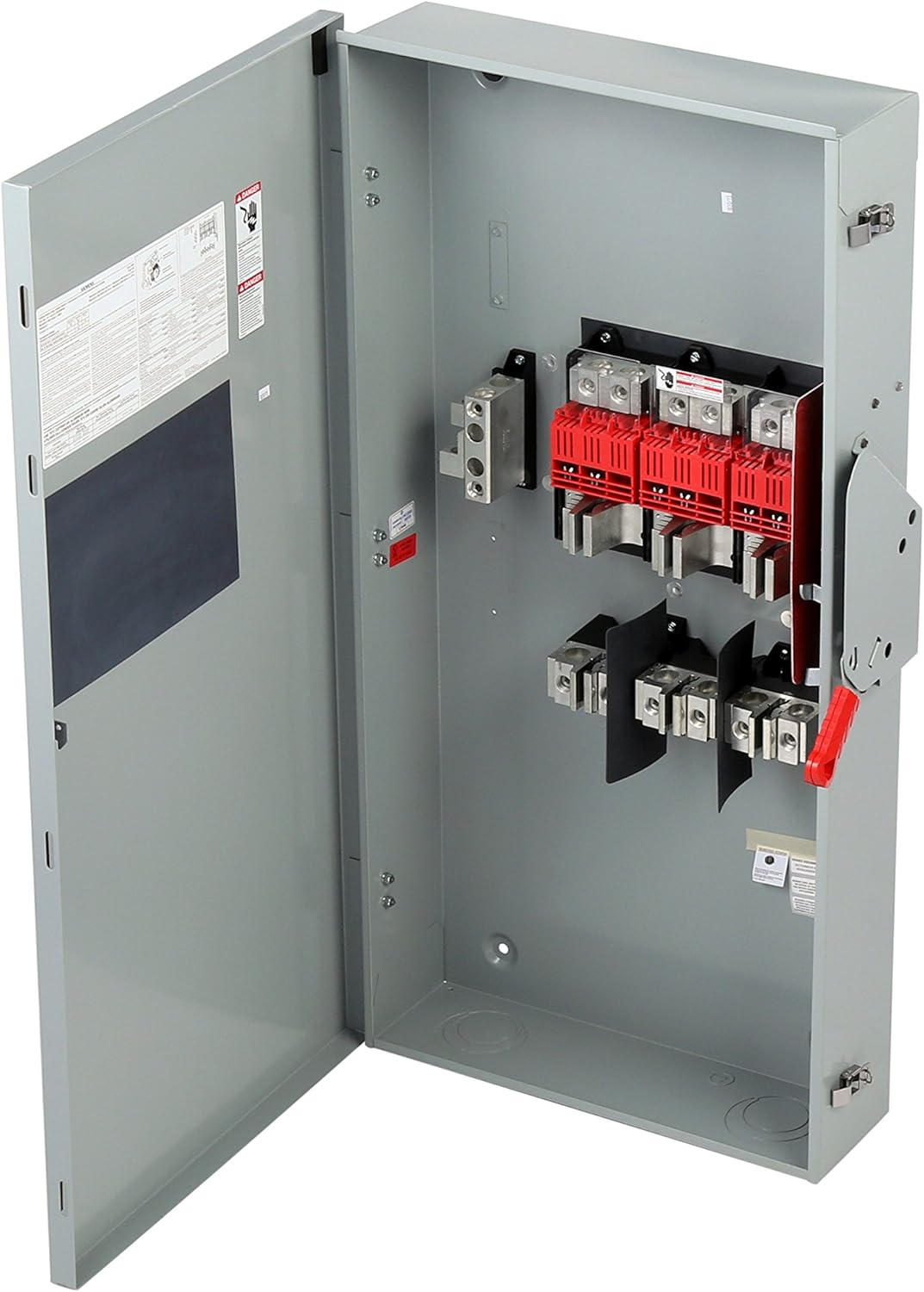

Siemens HF325NRA Disconnect Switch | 240V 400A Fusible 3P VBII Series

Product Description:
The Siemens HF325NRA is a heavy-duty 3 phase, 3 pole disconnect switch rated for 240 Volts and 400 Amps. It features a NEMA 3R rating for outdoor use and a high AIC rating of 200kA@600V for reliable circuit protection. This fusible switch is configured as a single unit and is designed for use with class R fuses.

Key Features:
✔ Part Number: HF325NRA
✔ Manufacturer: Siemens
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: VBII Series
✔ Type: HF
✔ Voltage: 240
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 200kA@600V
✔ Fuse Class: R
✔ Configuration: Single
✔ Switch Style: Fusible
✔ NEMA Rating: NEMA 3R
✔ Amperage Maximum: 400
✔ Amperage Minimum: 200
✔ UPC: 887621872502
✔ GTIN: 00887621872502
✔ Country of Origin: Mexico
✔ Dimensions: 6.94 x 22.4 x 45.32 inches
✔ Weight: 99.8 lb
✔ Temp Rating: 85 °C - -29 °C
