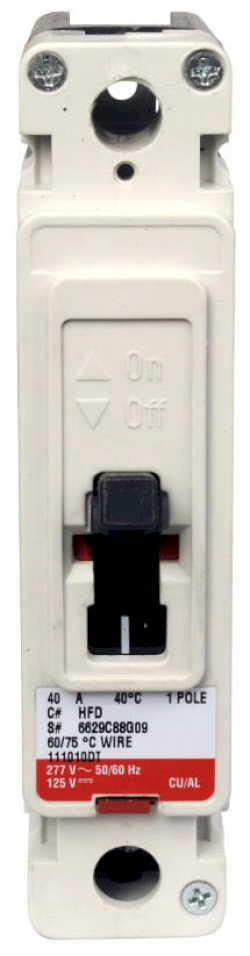

Cutler Hammer HFD1020 Circuit Breaker | Series C HFD 277V 20A

Product Description:
The Cutler Hammer HFD1020 is a Molded Case Circuit Breaker from the Series C family. It features a 1-pole design with a 277V, 20A rating and a 65kA@277V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection. It is CSA Certified, IEC Rated, and UL Listed for safety compliance.

Key Features:
✔ Part Number: HFD1020
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: HFD
✔ Voltage: 277V
✔ Amperage: 20A
✔ Phase: 1
✔ Poles: 1
✔ AIC Rating: 65kA@277V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 225A/F
✔ Wire Size: Min. 14 AWG, Max. 1/0 AWG
✔ Breaker Type: Standard
✔ Phase Connection: AB
✔ Certification: CSA Certified, IEC Rated, UL Listed
✔ UPC: 786679175262
✔ GTIN: 007866791752
