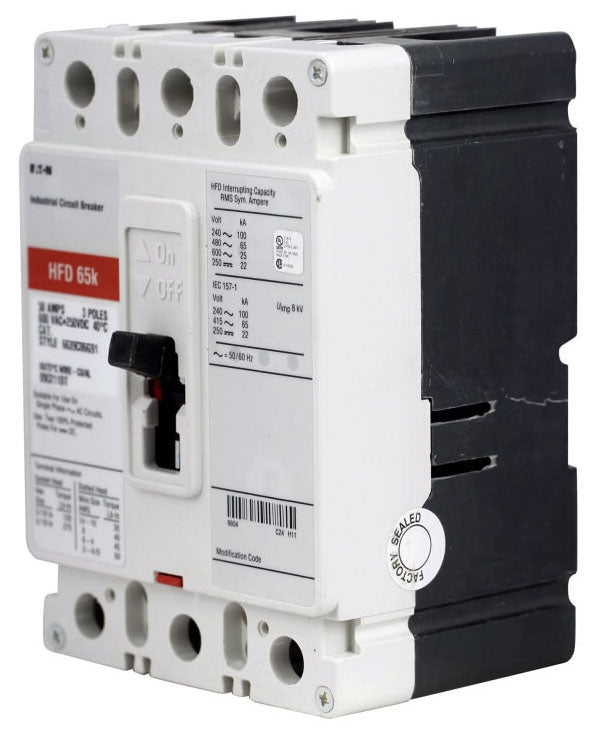

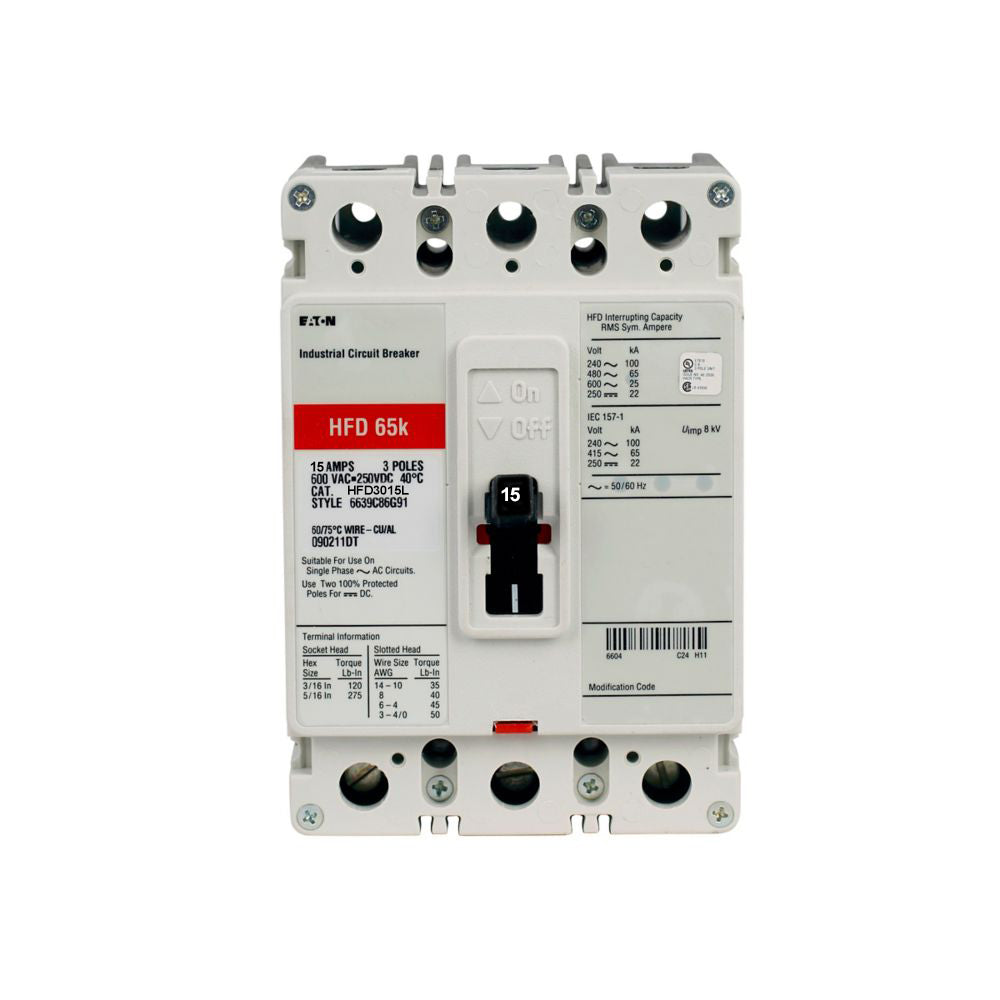

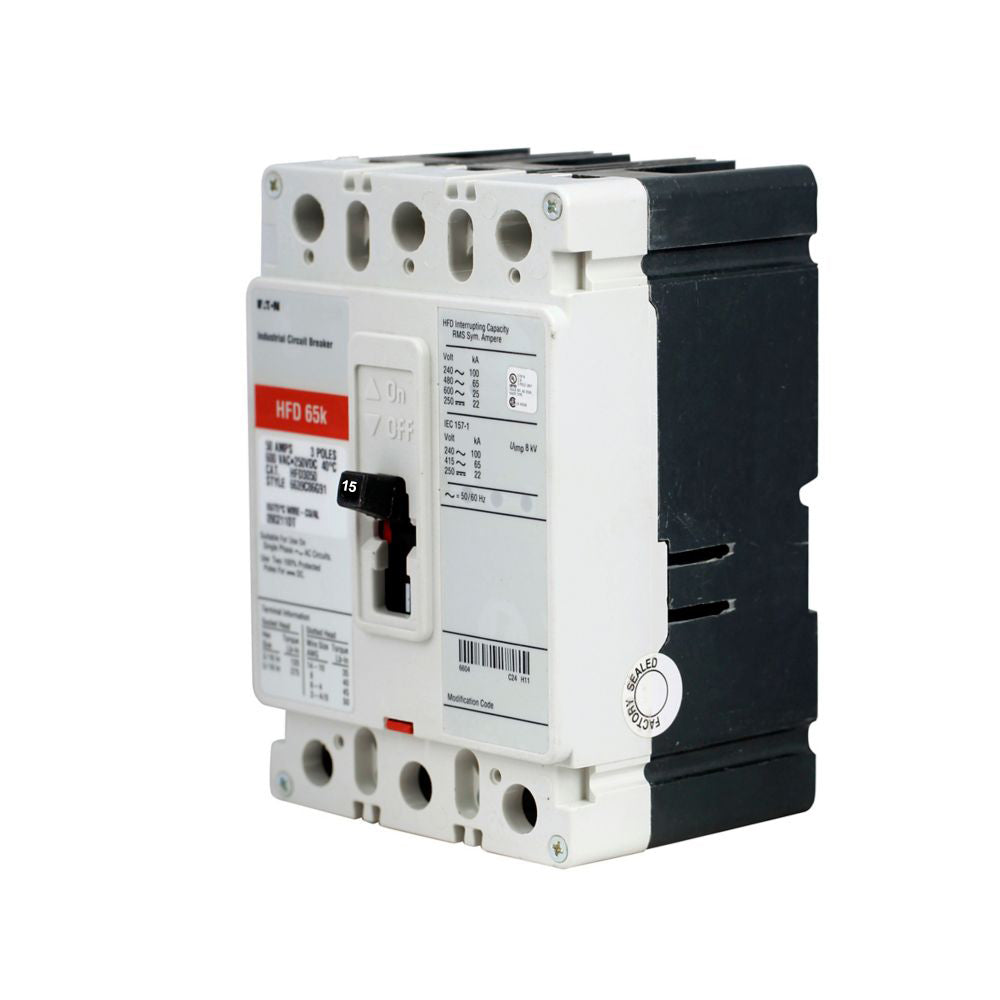

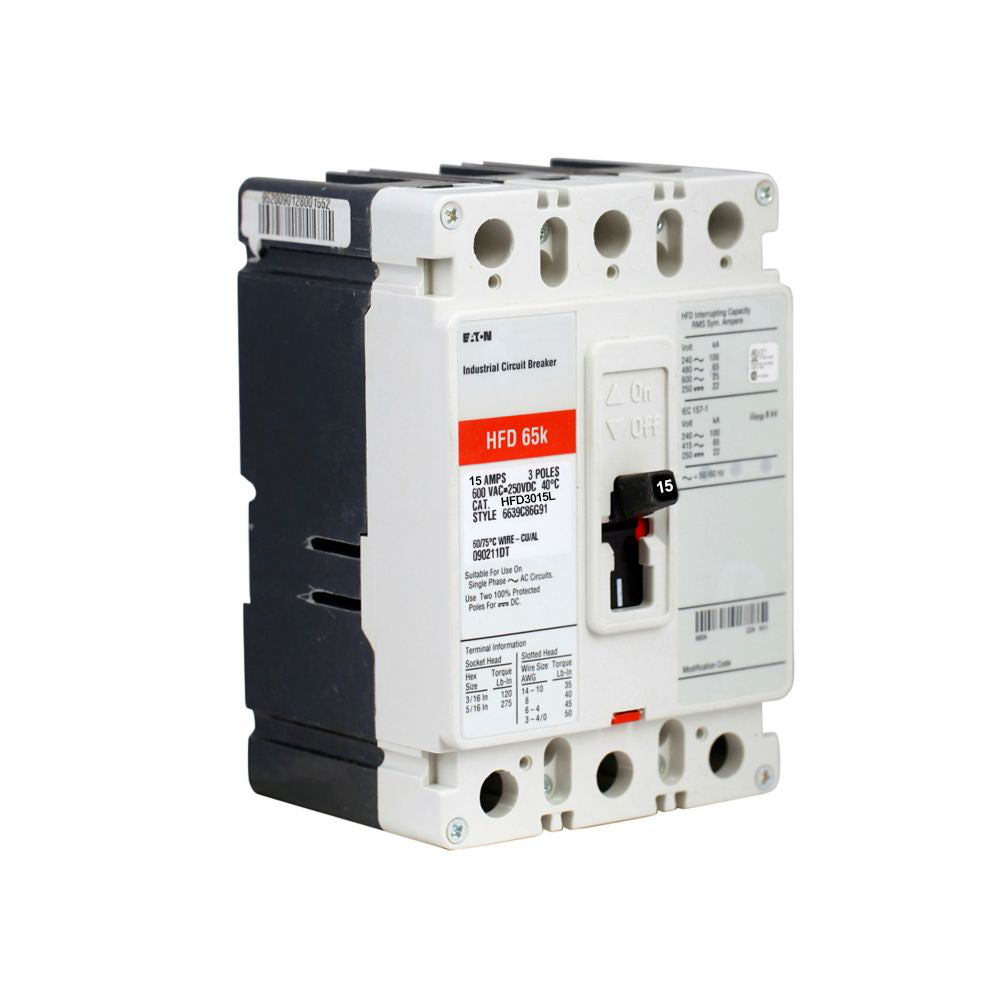

HFD3015L Cutler-Hammer Eaton HFD Breaker, 15A 3-Pole 600V, 65kA, Line and Load Lugs, F-Frame

HFD3015L Cutler-Hammer Eaton HFD Breaker, 15A 3-Pole 600V, 65kA, Line and Load Lugs, F-Frame

Need a 15 amp, 3-pole HFD for a panel where the fault current runs high? The Cutler-Hammer HFD3015L is an Eaton Series C F-Frame breaker that comes with lugs on both the line and load ends, so you are not hunting down terminals before you land wire.

It handles 100kAIC at 240VAC and 65kAIC at 480VAC, carries a 600VAC / 250VDC rating, and trips on a fixed thermal-magnetic element (T186). Nothing to set on this one. It is UL Listed, HACR rated, and Eaton says it is fine for reverse feed.

Common Applications

• Three-pole circuit protection at 15A
• HACR equipment circuits (heating, air conditioning, and refrigeration)
• Reverse-feed installations
• AC systems up to 600V and DC systems up to 250V

Key Features

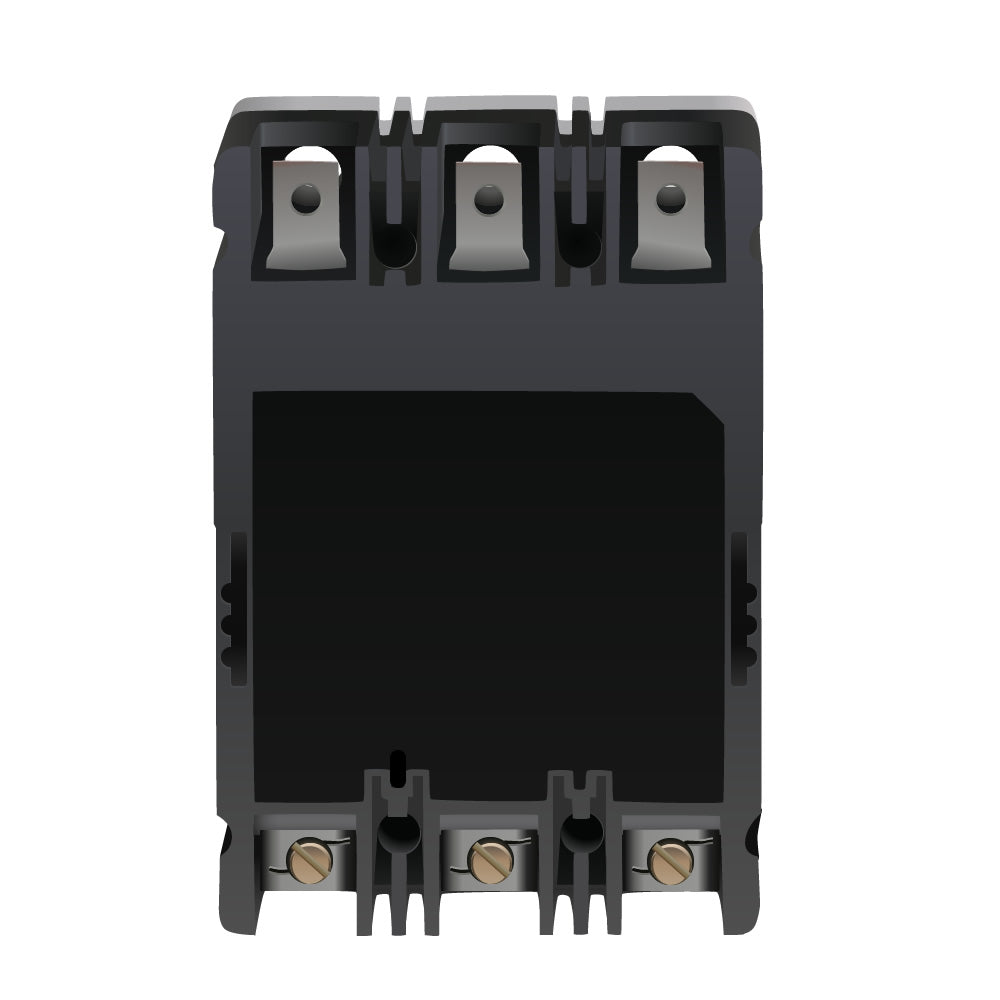

• Lugs both ends: The L suffix means line and load terminals come on the breaker.
• Built for high fault current: 65kAIC at 480VAC, 100kAIC at 240VAC.
• Set-and-forget trip: Fixed thermal, fixed magnetic (T186), no adjustment needed.
• HACR rated: Good to go on HVAC and refrigeration equipment circuits.
• Reverse feed OK: Eaton lists F-Frame breakers as suitable for reverse feed.

Specifications

• Manufacturer: Eaton (Cutler-Hammer)
• Catalog Number: HFD3015L
• Product Type: Series C complete molded case circuit breaker
• Frame: F-Frame
• Circuit Breaker Type: HFD
• Amperage Rating: 15A
• Number of Poles: 3
• Voltage Rating: 600VAC, 250VDC
• Interrupting Rating: 100kAIC at 240VAC; 65kAIC at 480VAC
• Trip Type: Fixed thermal, fixed magnetic (Eaton trip code T186)
• Terminals: Line and load
• Frequency: 50/60 Hz
• HACR Rated: Yes
• Reverse Feed: Suitable
• Certification: UL Listed (UL 489)

Product Identification

• UPC: 786679175064
• Product Dimensions: 6.00 in H x 4.13 in W x 3.38 in D (152.4 mm x 104.8 mm x 85.7 mm)
• Product Weight: 4.5 lb (2.0 kg)

FAQ

Does the HFD3015L come with lugs?
Yes. The L at the end means it ships with line and load terminals. The plain HFD3015 only has load side terminals.

What's the AIC on an HFD3015L?
65kAIC at 480VAC and 100kAIC at 240VAC, per Eaton.

Can I adjust the trip on the HFD3015L?
No. It is a fixed thermal, fixed magnetic trip (T186), so the 15A setting is what you get.

Is the HFD3015L HACR rated?
Yes. Eaton rates every F-Frame breaker, HFD3015L included, for HACR use.

Is the HFD3015L Cutler-Hammer or Eaton?
Both names point to the same part. Cutler-Hammer is an Eaton brand name, and the catalog number HFD3015L is the same under either name.
