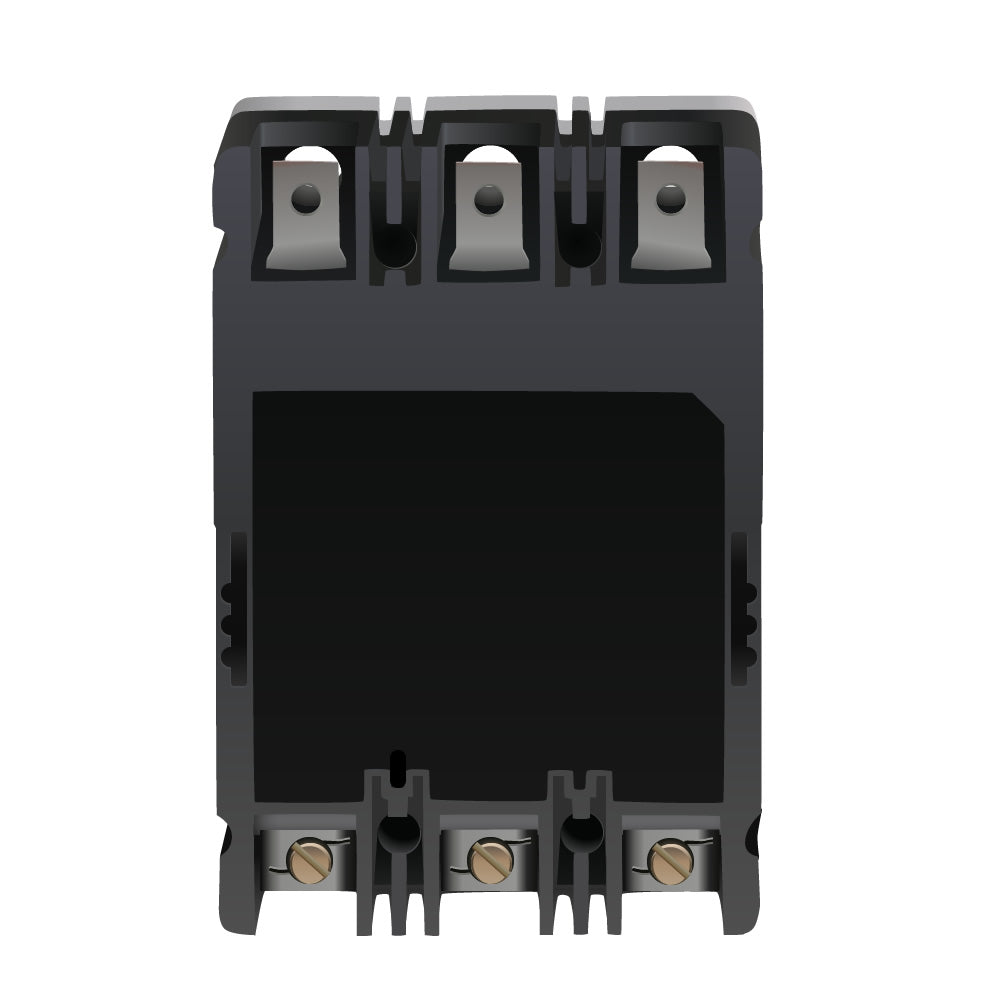

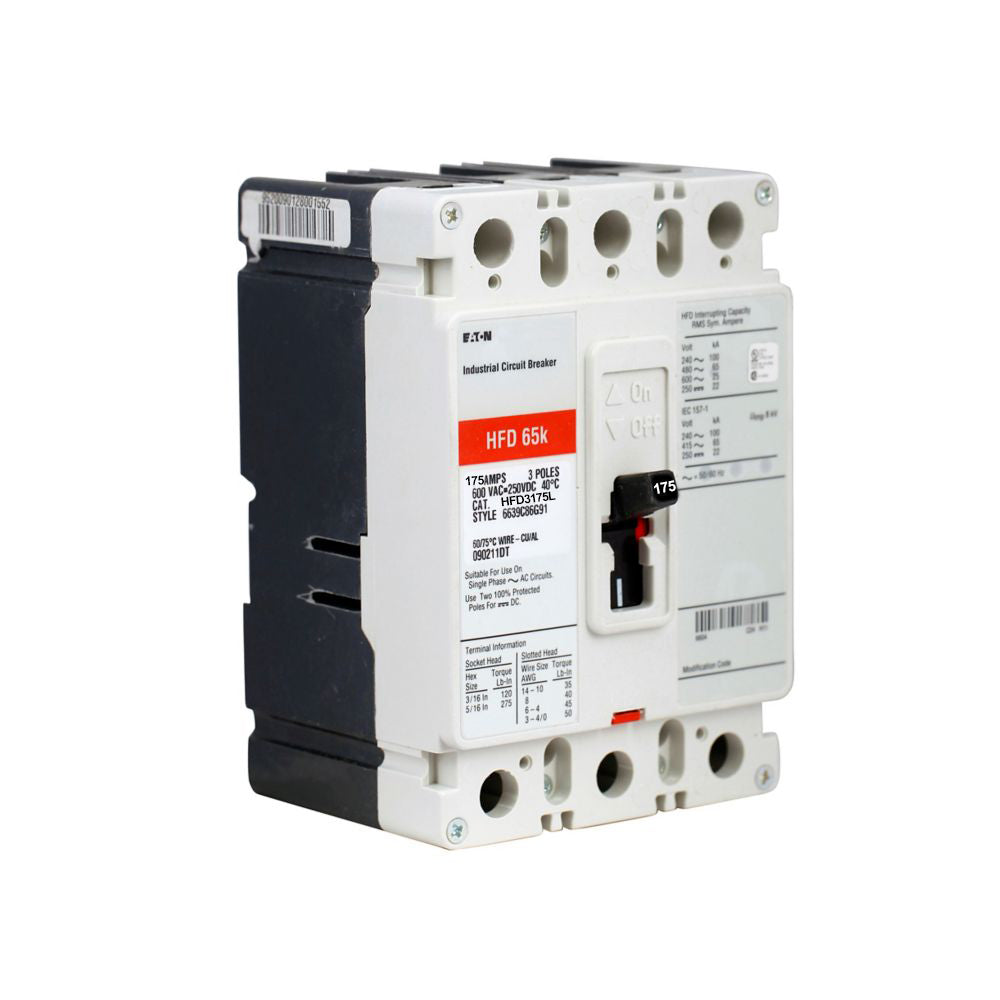

Eaton HFD3175L Circuit Breaker | 600V 175A 3P 65kA@480V Feed-Thru Series C

Product Description:
The Cutler Hammer HFD3175L is a Molded Case Circuit Breaker from the Series C family. It is a 3-pole breaker rated for 175 amps and 600 volts, with an AIC rating of 65kA at 480V. This model features a Feed-Thru connection and provides Thermal Magnetic protection for reliable operation.

Key Features:
✔ Part Number: HFD3175L
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: HFD
✔ Voltage: 600
✔ Amperage: 175
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ UPC: 786679015476
✔ GTIN: 00786679015476
✔ Country of Origin: Dominican Republic
✔ Dimensions: Length 3.38in Height 4.13in Width 4.13in
✔ Weight: 5
✔ Certification: UL Listed
