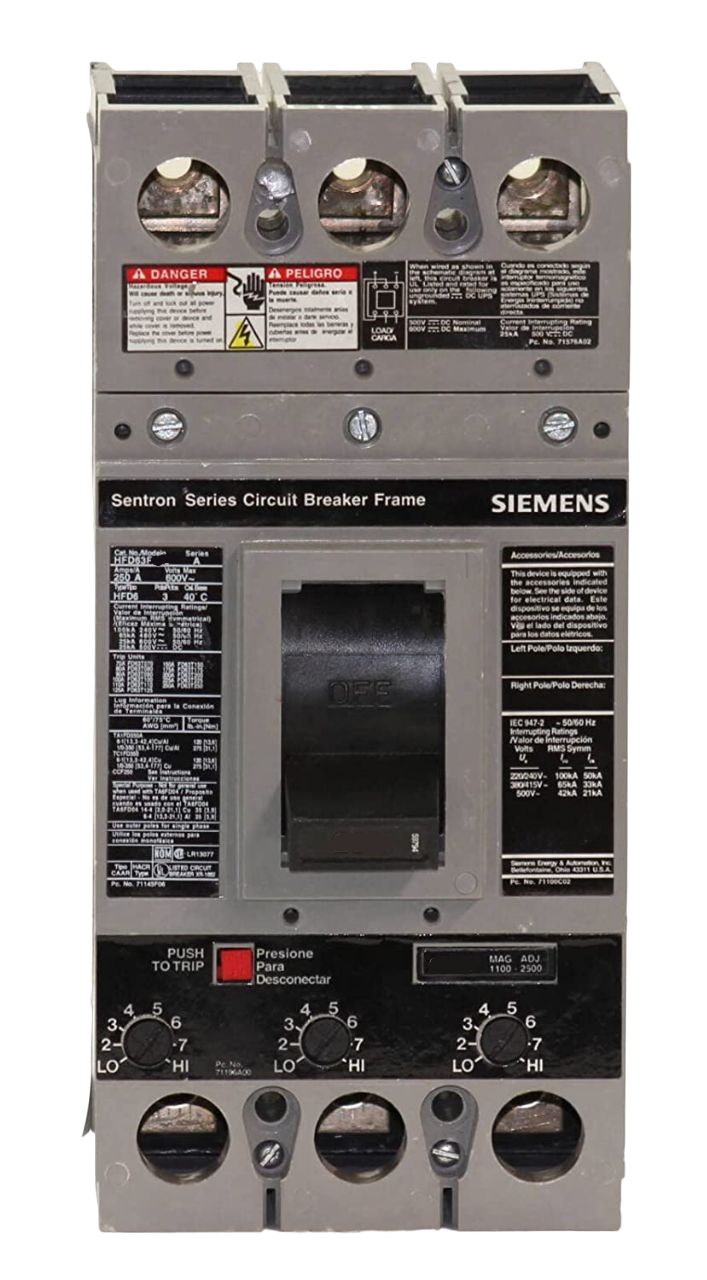

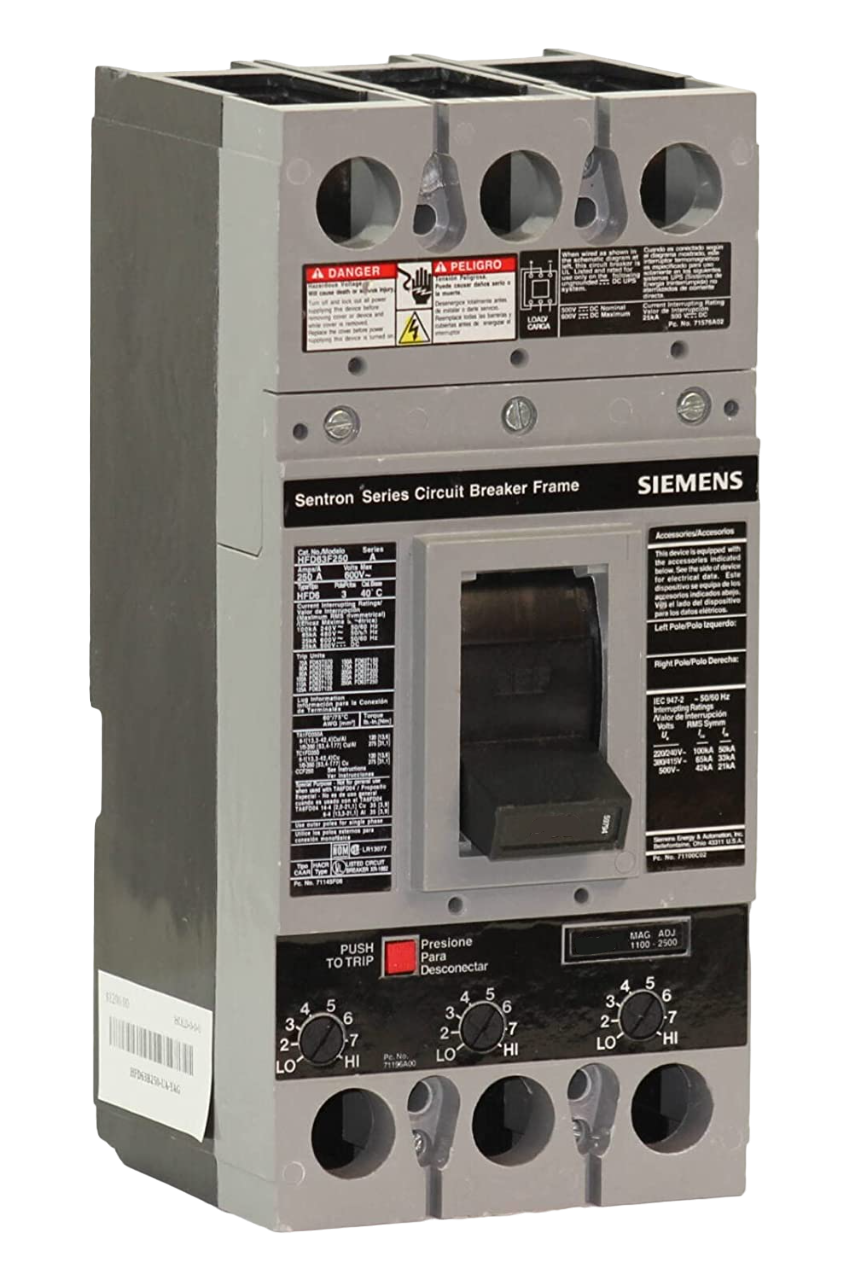

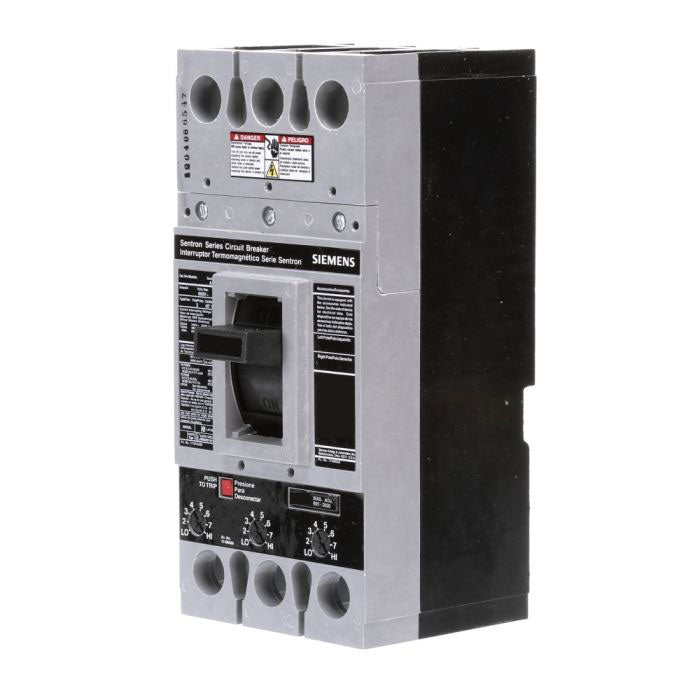

Siemens HFD63B070L Molded Case Circuit Breaker | 600V 70A 3P 65kA@480V Feed-Thru Sentron Series

Product Description:
The Siemens HFD63B070L is a Molded Case Circuit Breaker from the Sentron Series family. It is a 3-pole breaker rated for 70 amps and 600 volts, with an AIC rating of 65kA at 480V. This model features a feed-thru connection and provides thermal magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: HFD63B070L
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: HFD
✔ Voltage: 600
✔ Amperage: 70
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: FD Frame
✔ Protection: Thermal Magnetic
✔ UPC: 783643235830
✔ GTIN: 00783643235830
✔ Country of Origin: Mexico
✔ Dimensions: 5.906 x 9.843 x 6.693 (W x H x D) Inches
✔ Weight: 13
✔ Panel Type: S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
✔ Wire Size: 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL
