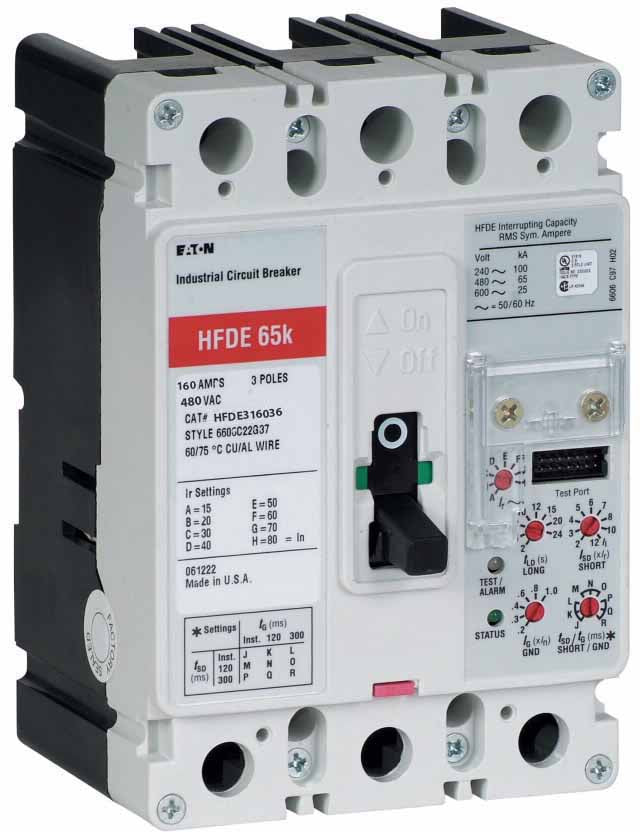

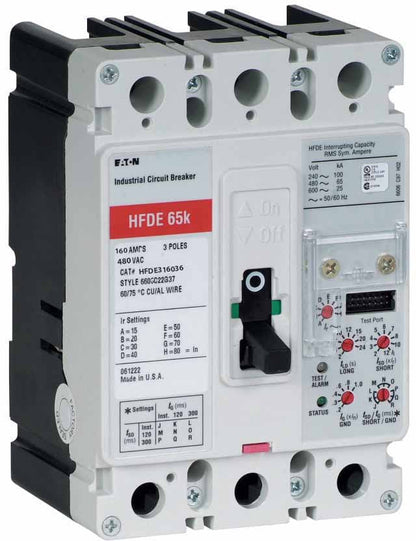

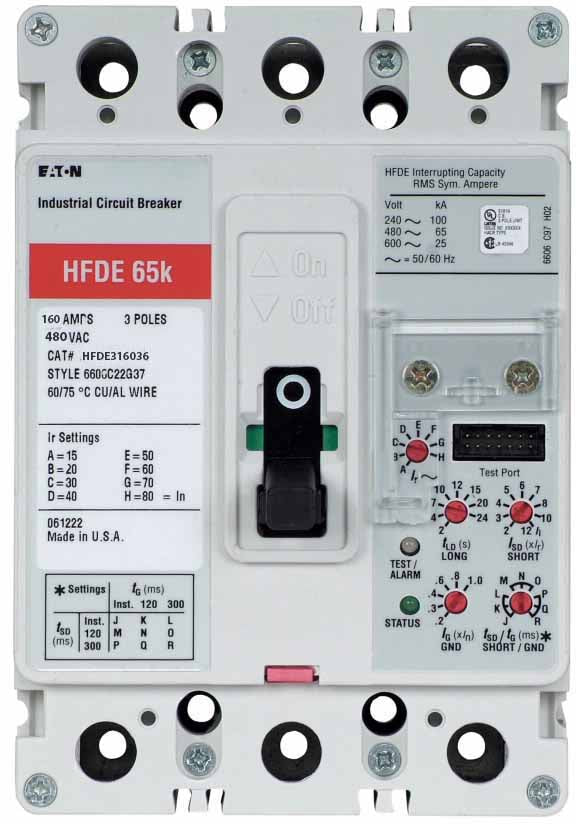

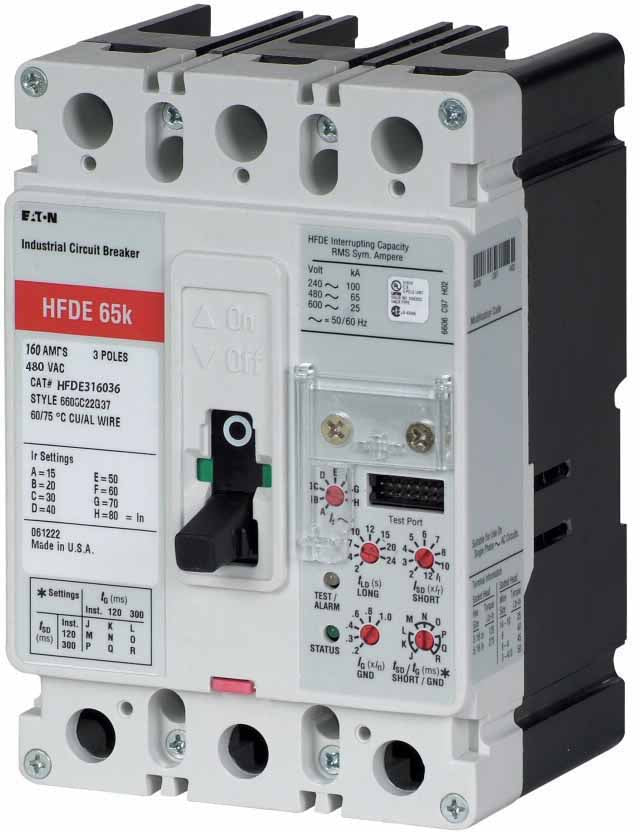

Cutler Hammer HFDE316036 Circuit Breaker | Series C HFDE 480V 160A

Product Description:
The Cutler Hammer HFDE316036 is a Molded Case Circuit Breaker from the Series C family. It features a 3-pole design with a 480V voltage rating and 160A amperage capacity. This breaker includes solid-state protection and has an AIC rating of 65kA@480V. It uses a bolt-on connection for secure installation.

Key Features:
✔ Part Number: HFDE316036
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: HFDE
✔ Voltage: 480V
✔ Amperage: 160A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LSIG - Long-Time, Short-Time, Instantaneous, Ground Fault
✔ Frame Size: F Frame
✔ Protection: Solid State
✔ UPC: 786685112718
✔ GTIN: 00786685112718
✔ Country of Origin: Dominican Republic
✔ Dimensions: 3.38in (L) x 4.13in (H) x 4.13in (W)
✔ Weight
