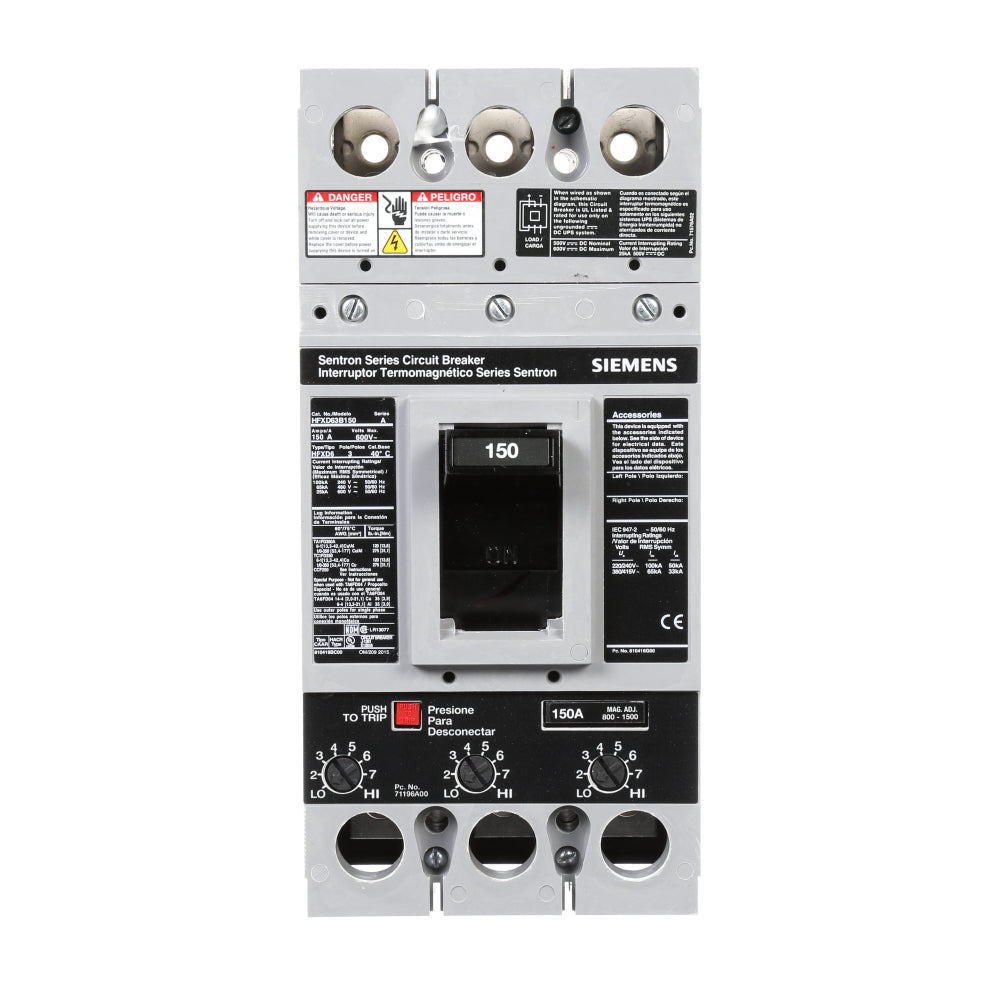

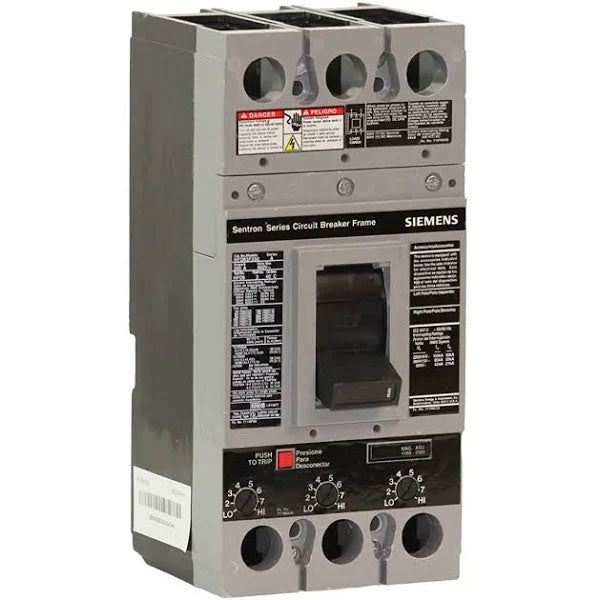

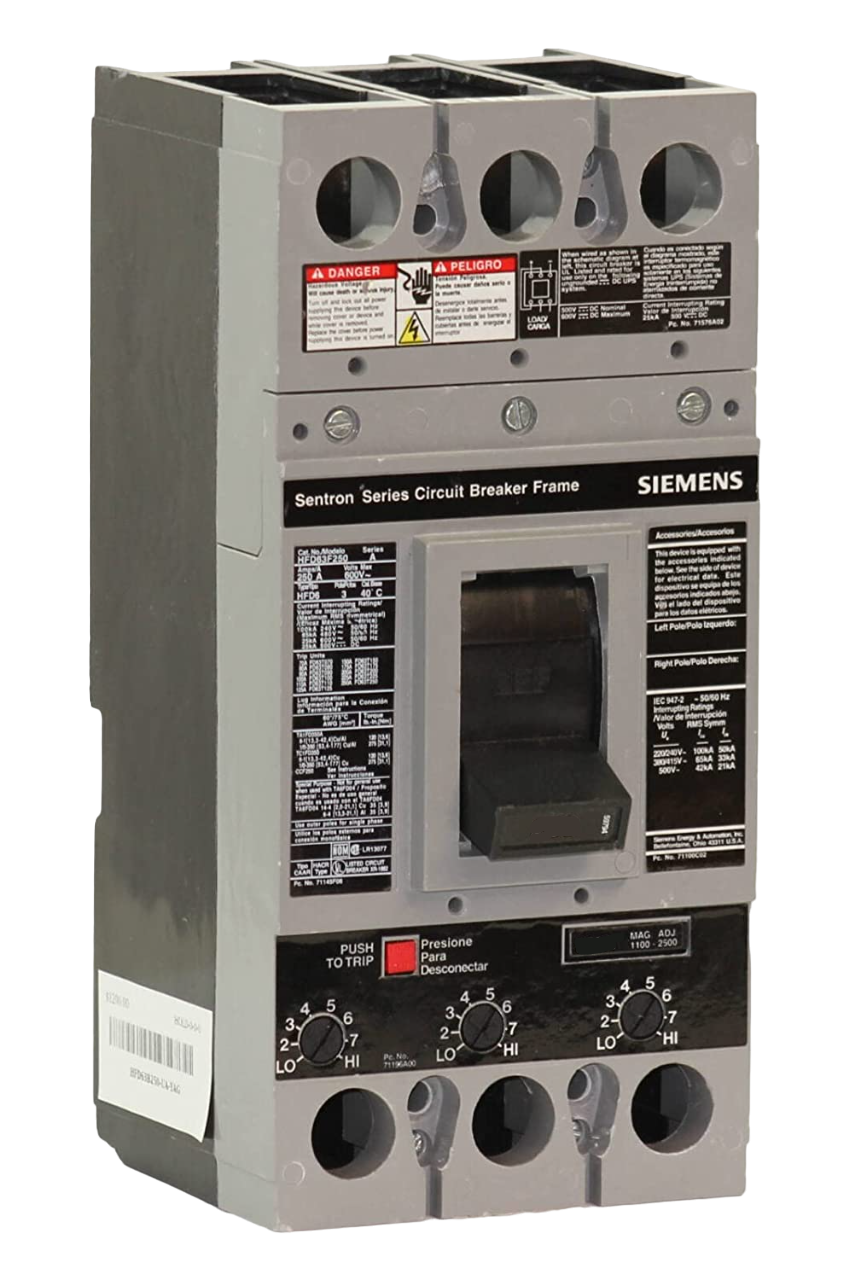

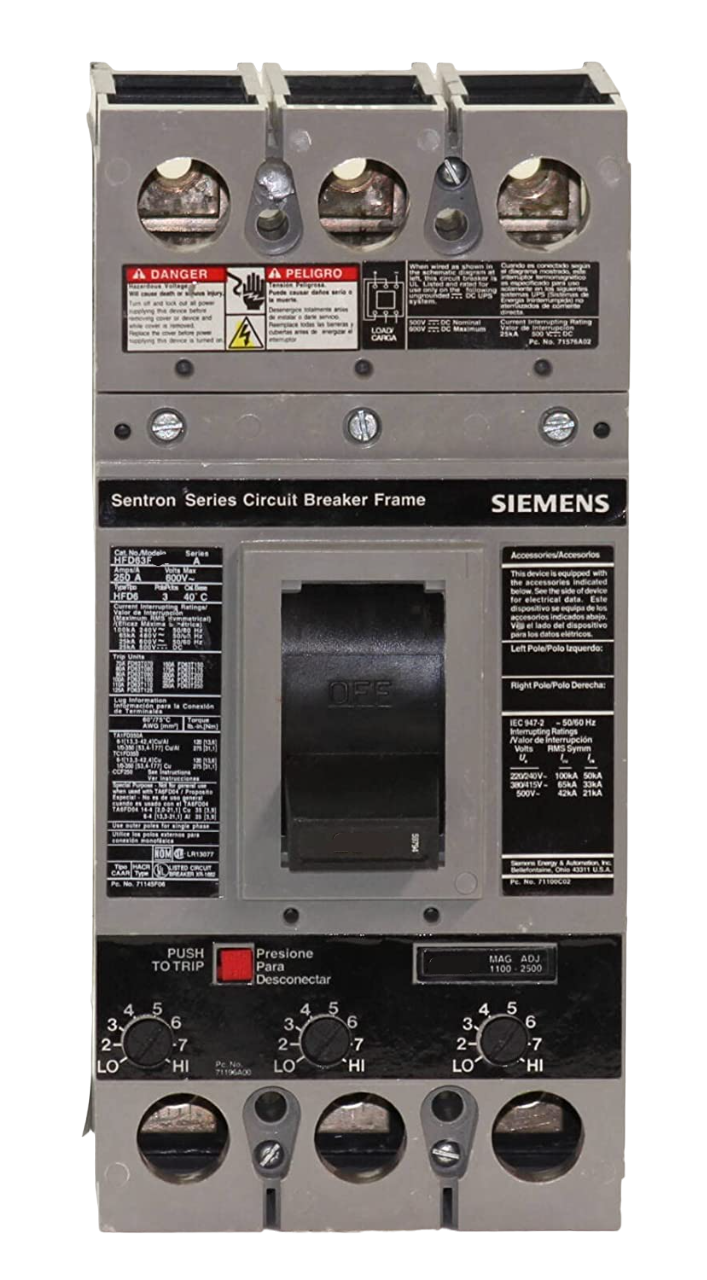

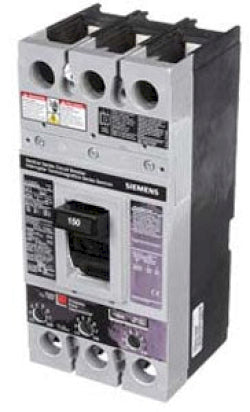

Siemens HFXD63B150 Circuit Breaker | 600V 150A 3P 65kA@480V Bolt-On Sentron Series

Product Description:
The Siemens HFXD63B150 is a Molded Case Circuit Breaker from the Sentron Series family. It is a 3-pole, 150 amp breaker rated for 600 Volts with an AIC rating of 65kA@480V. This model features a bolt-on connection and provides thermal magnetic protection for reliable circuit interruption. Lugs are not included and must be purchased separately.

Key Features:
✔ Part Number: HFXD63B150
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: HFXD
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: FD Frame
✔ Protection: Thermal Magnetic
✔ UPC: 783643318144
✔ GTIN: 00783643318144
✔ Country of Origin: Mexico
✔ Dimensions: 5.906 x 9.843 x 6.693 (W x H x D) Inches
✔ Weight: 7.5
✔ Panel Type: S4, P4, SPP, F1, FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
