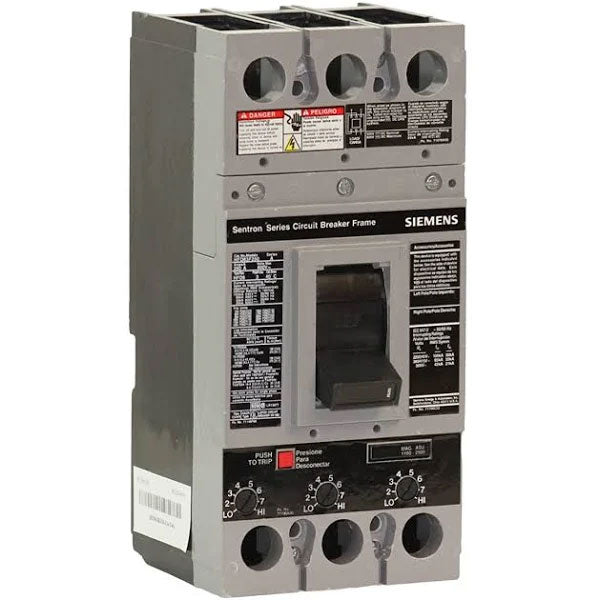

Siemens HFXD63B225L Circuit Breaker | 600V 225A 3P 65kA@480V Feed-Thru Sentron Series

Product Description:
The Siemens HFXD63B225L is a Molded Case Circuit Breaker from the Sentron Series family. It is a 3-pole, 225 amp breaker rated for 600 volts with a 65kA interrupting capacity at 480V. This model features thermal magnetic protection and a feed-thru connection for straightforward installation. It includes line and load side lugs for convenient wiring.

Key Features:
✔ Part Number: HFXD63B225L
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: HFXD
✔ Voltage: 600
✔ Amperage: 225
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: FD Frame
✔ Protection: Thermal Magnetic
✔ UPC: 783643322295
✔ GTIN: 00783643322295
✔ Country of Origin: Mexico
✔ Dimensions: 5.906 x 9.843 x 6.693 (W x H x D) Inches
✔ Weight: 13
✔ Panel Type: S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
✔ Certification: UL ( UL Listed ) ( CE Marked) (CSA Certified)
