Square D
Square D HGA36025 Circuit Breaker | 600V 25A 3P 35kA@480V Plug In Panelboard Powerpact
Square D HGA36025 Circuit Breaker | 600V 25A 3P 35kA@480V Plug In Panelboard Powerpact
Price:
Sale
Sold out
Regular price
$598.21 USD
Regular price
$1,575.00 USD
Sale price
$598.21 USD
Unit price
per
Shipping calculated at checkout.
Stock:
13 in stock
Couldn't load pickup availability
Product Description:
The Square D HGA36025 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 25 amp breaker rated for 600 volts with an AIC rating of 35kA at 480V. This model features thermal magnetic protection and uses a plug-in panelboard connection for easy installation.
Key Features:
✔ Part Number: HGA36025
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGA
✔ Voltage: 600
✔ Amperage: 25
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Plug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 150A/HG
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 3 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901700562
✔ GTIN: 00785901700562
✔ Country of Origin: Mexico

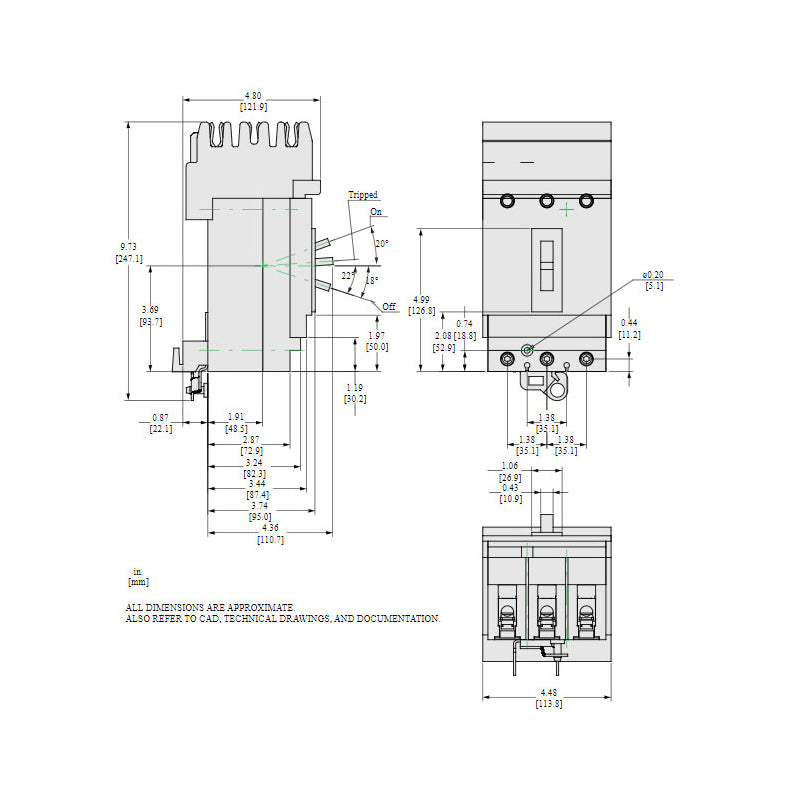

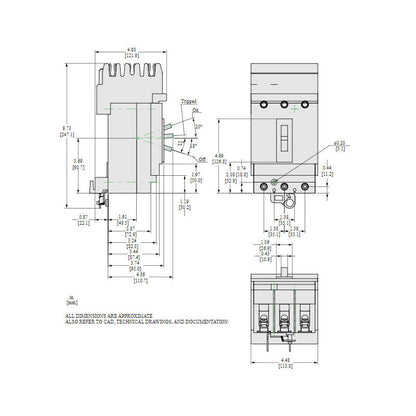

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 2.5
✔ Panel Type: I Line Panelboards
✔ Standards: CE, CSA, IEC, UL listed
✔ Certification: CE, CSA, IEC, UL listed
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
The Square D HGA36025 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 25 amp breaker rated for 600 volts with an AIC rating of 35kA at 480V. This model features thermal magnetic protection and uses a plug-in panelboard connection for easy installation.
Key Features:
✔ Part Number: HGA36025
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGA
✔ Voltage: 600
✔ Amperage: 25
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Plug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 150A/HG
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 3 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901700562
✔ GTIN: 00785901700562
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 2.5
✔ Panel Type: I Line Panelboards
✔ Standards: CE, CSA, IEC, UL listed
✔ Certification: CE, CSA, IEC, UL listed
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
