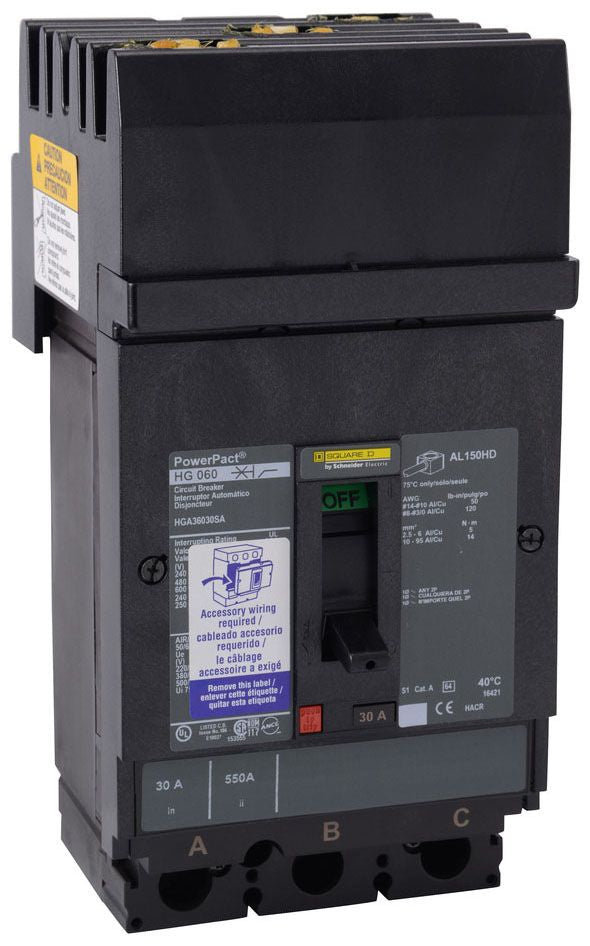

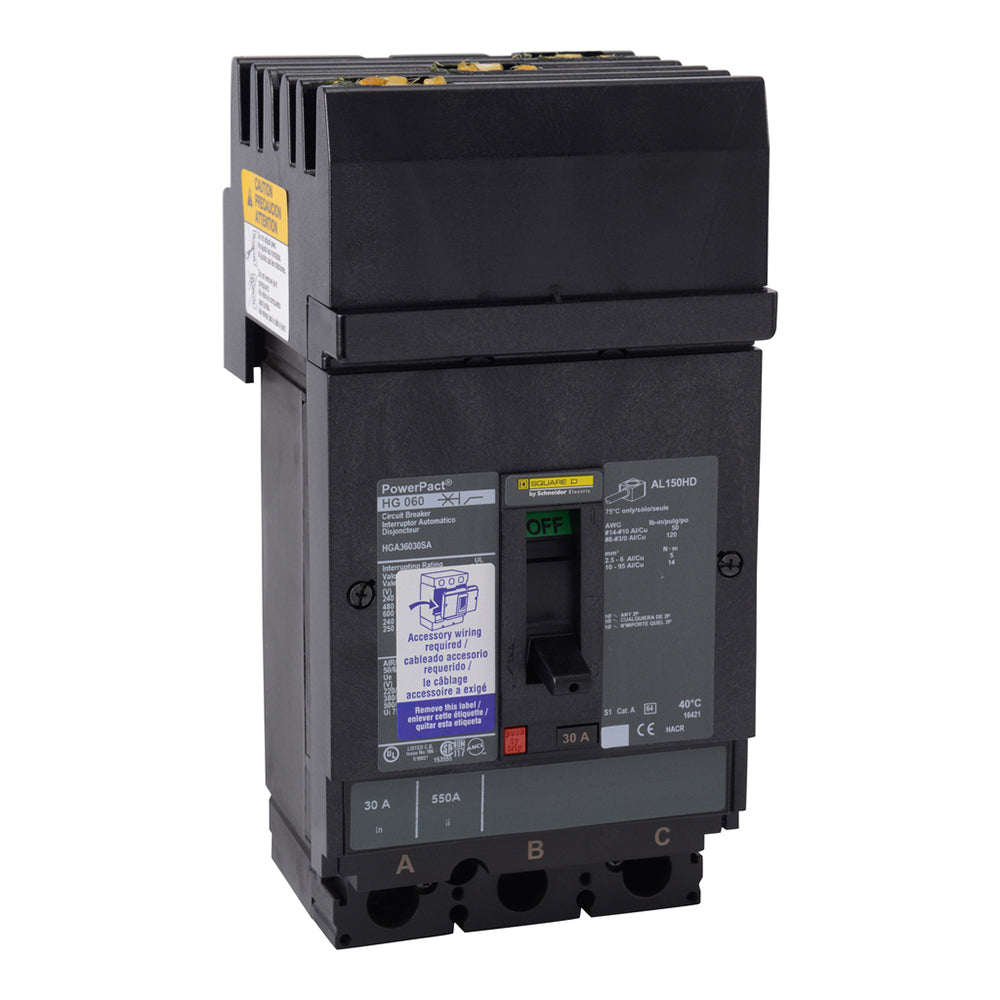

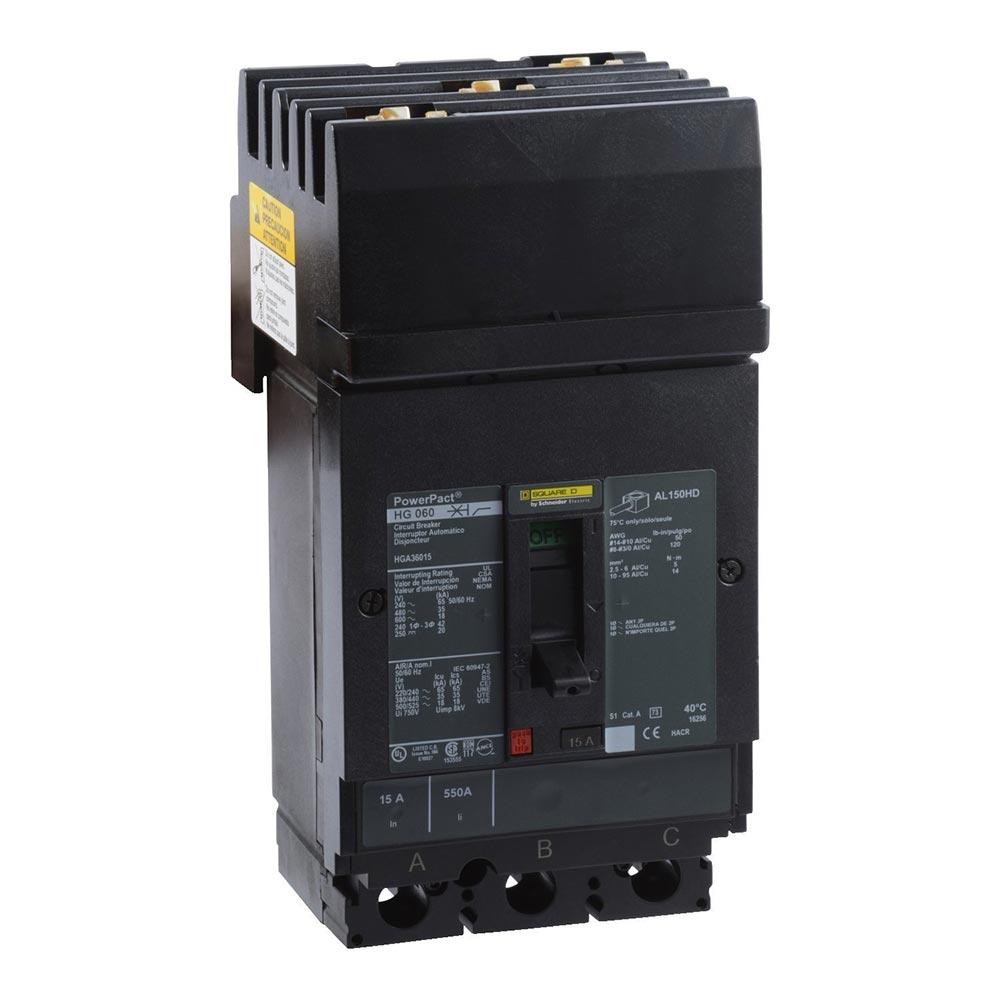

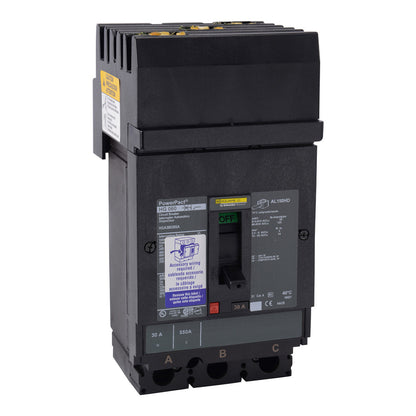

Square D HGA36045 Circuit Breaker | 600V 45A 3P 35kA@480V Plug In Panelboard Powerpact HGA
Square D HGA36045 Circuit Breaker | 600V 45A 3P 35kA@480V Plug In Panelboard Powerpact HGA
Price:
Sale
Sold out
Regular price
$1,246.98 USD
Regular price
$3,636.00 USD
Sale price
$1,246.98 USD
Unit price
per
Shipping calculated at checkout.
Stock:
2 in stock
Limited availability. Call (855) 875-5050 to check stock. We'll confirm stock immediately after your order.
Limited availability. Call (855) 875-5050 to check stock. We'll confirm stock immediately after your order.
Couldn't load pickup availability
Product Description:
The Square D HGA36045 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 45 amp breaker rated for 600 Volts with an AIC rating of 35kA@480V. This unit features a Plug In Panelboard connection and provides Thermal Magnetic protection for reliable circuit interruption.
Key Features:
✔ Part Number: HGA36045
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGA
✔ Voltage: 600
✔ Amperage: 45
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Plug In Panelboard
✔ Protection: Thermal Magnetic
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ Wire Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Phase Connection: ABC
✔ UPC: 785901422310
✔ GTIN: 00785901422310
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 2.47
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
