Square D HGA36060 Circuit Breaker | 600V 60A 3P 35kA@480V Plug In Panelboard Powerpact HGA

Product Description:

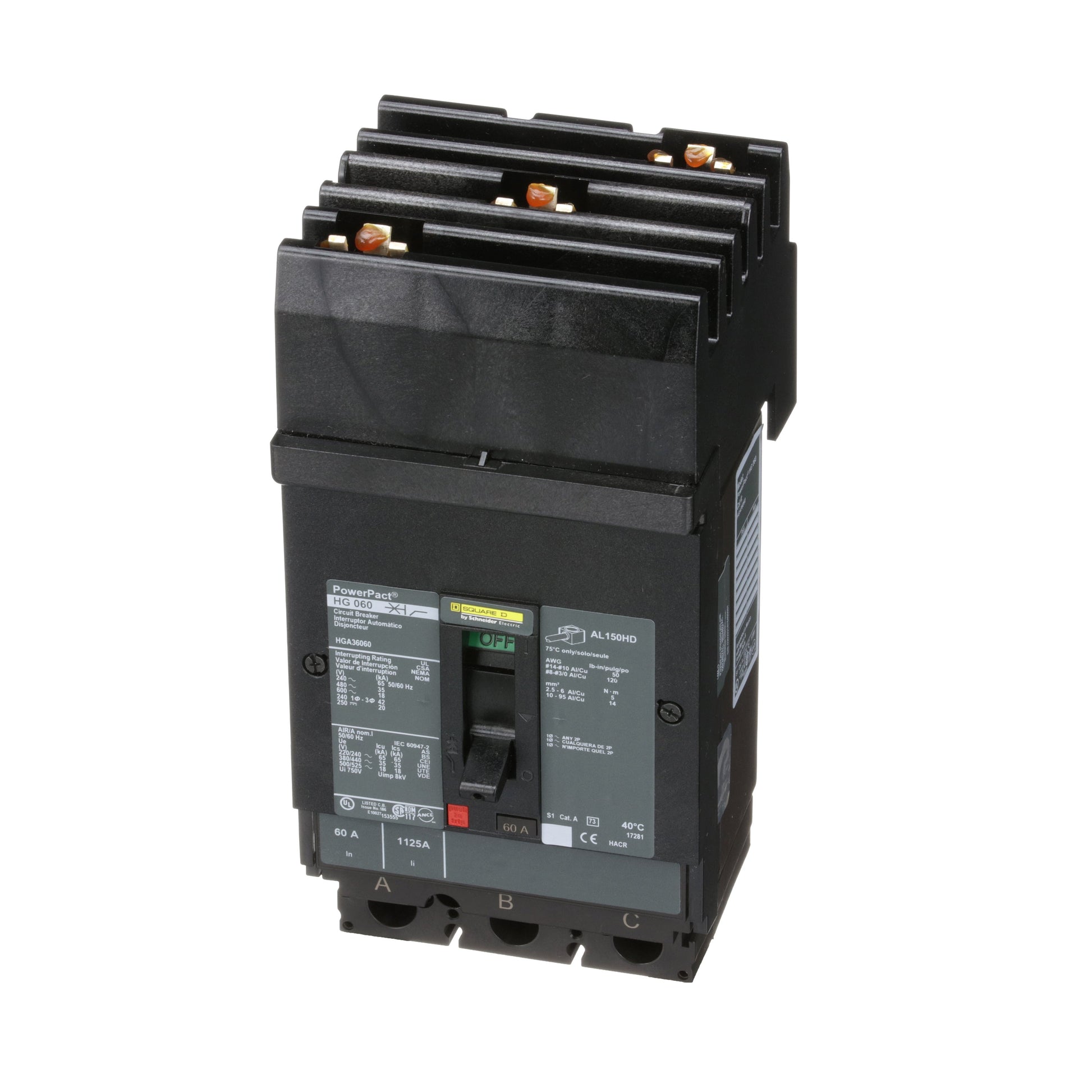

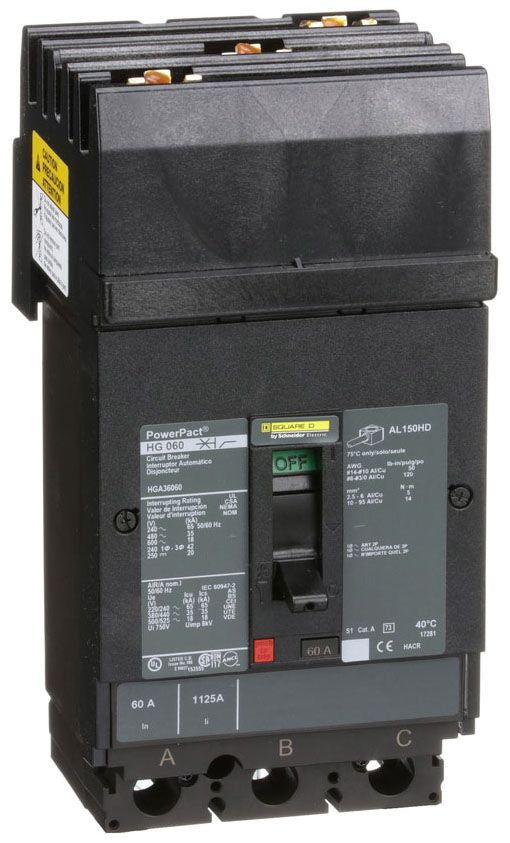

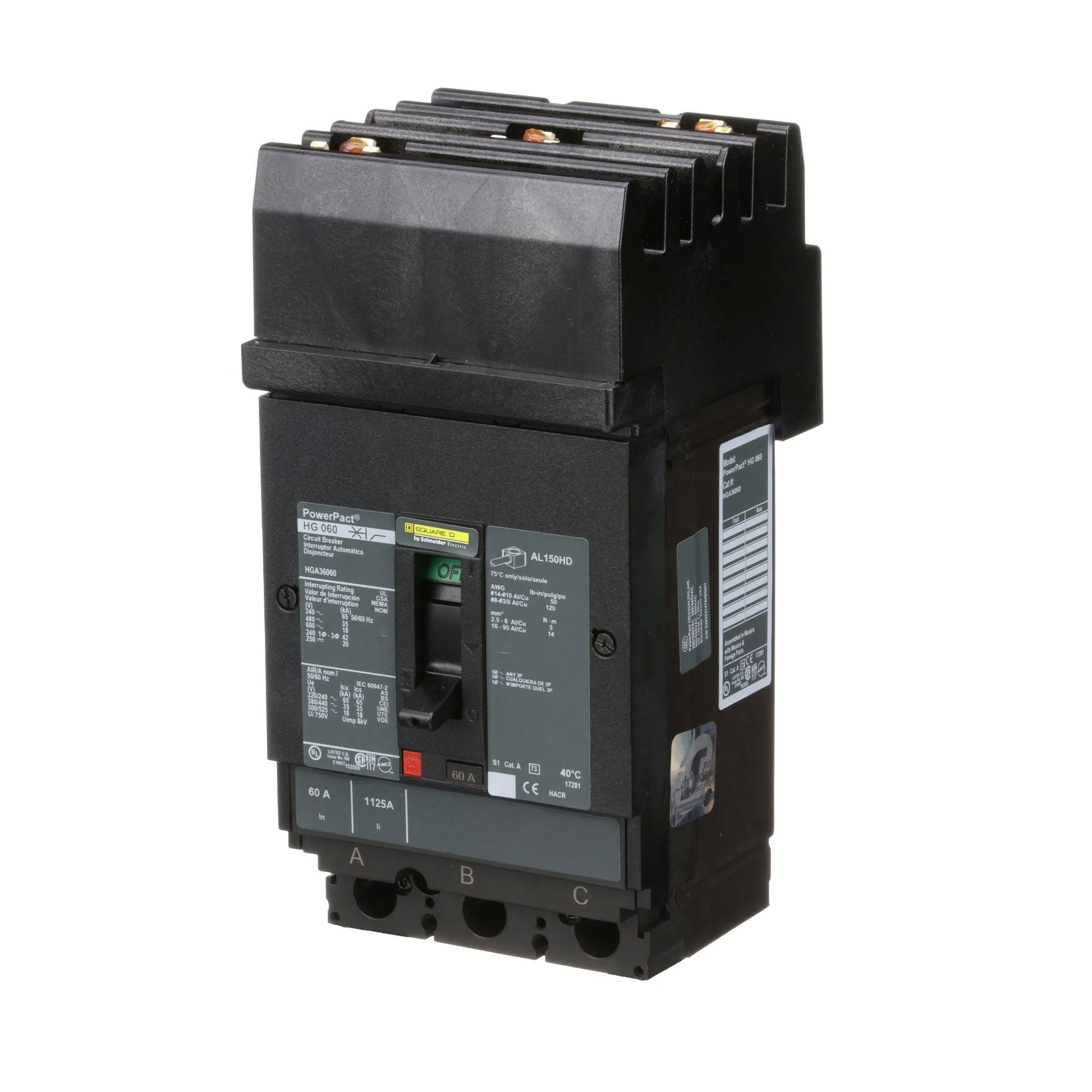

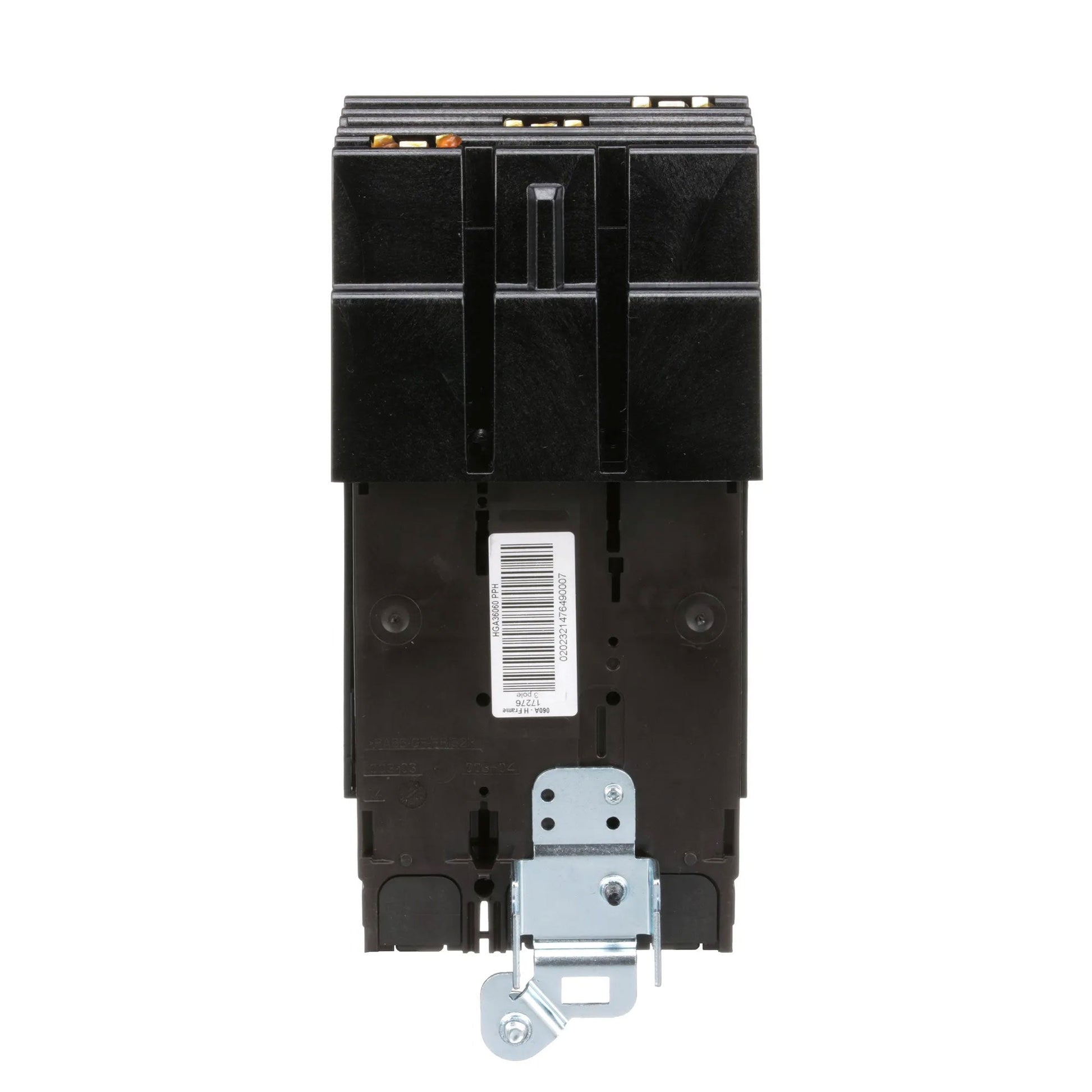

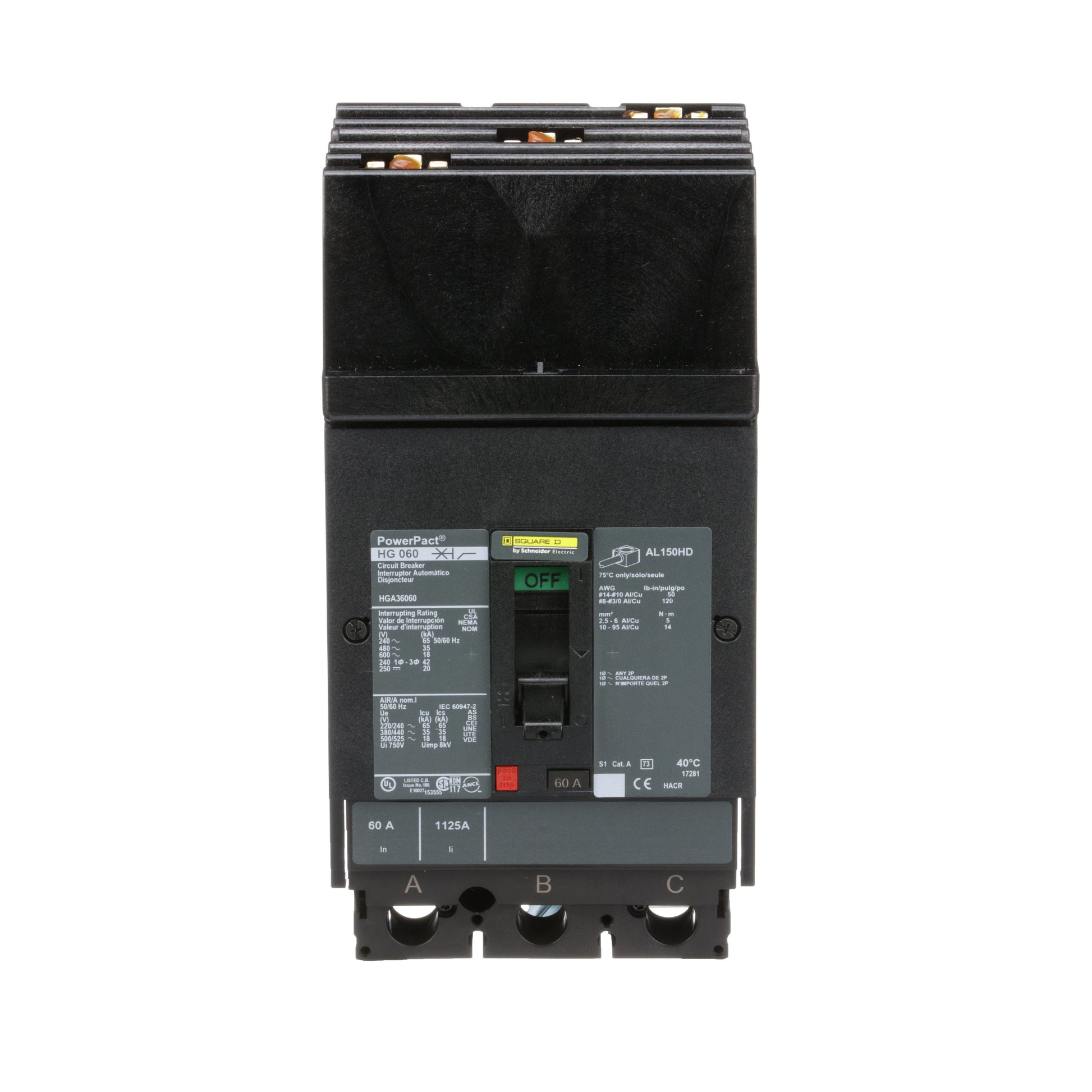

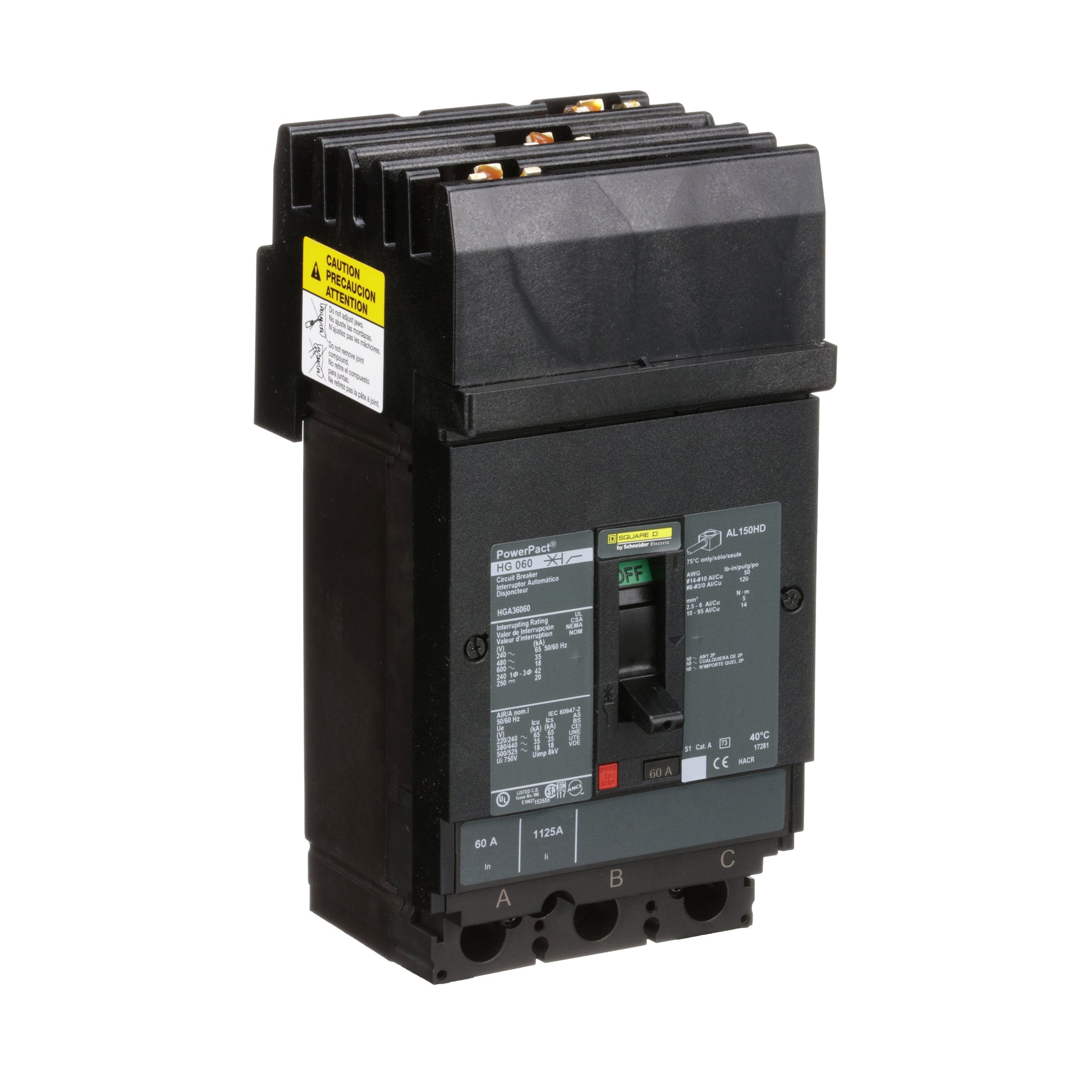

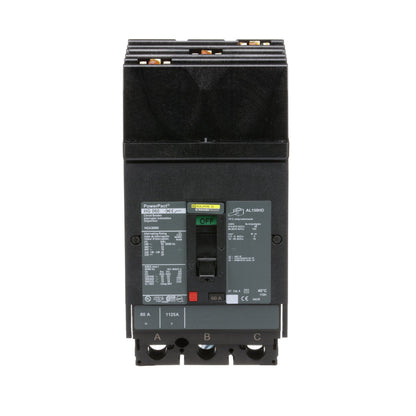

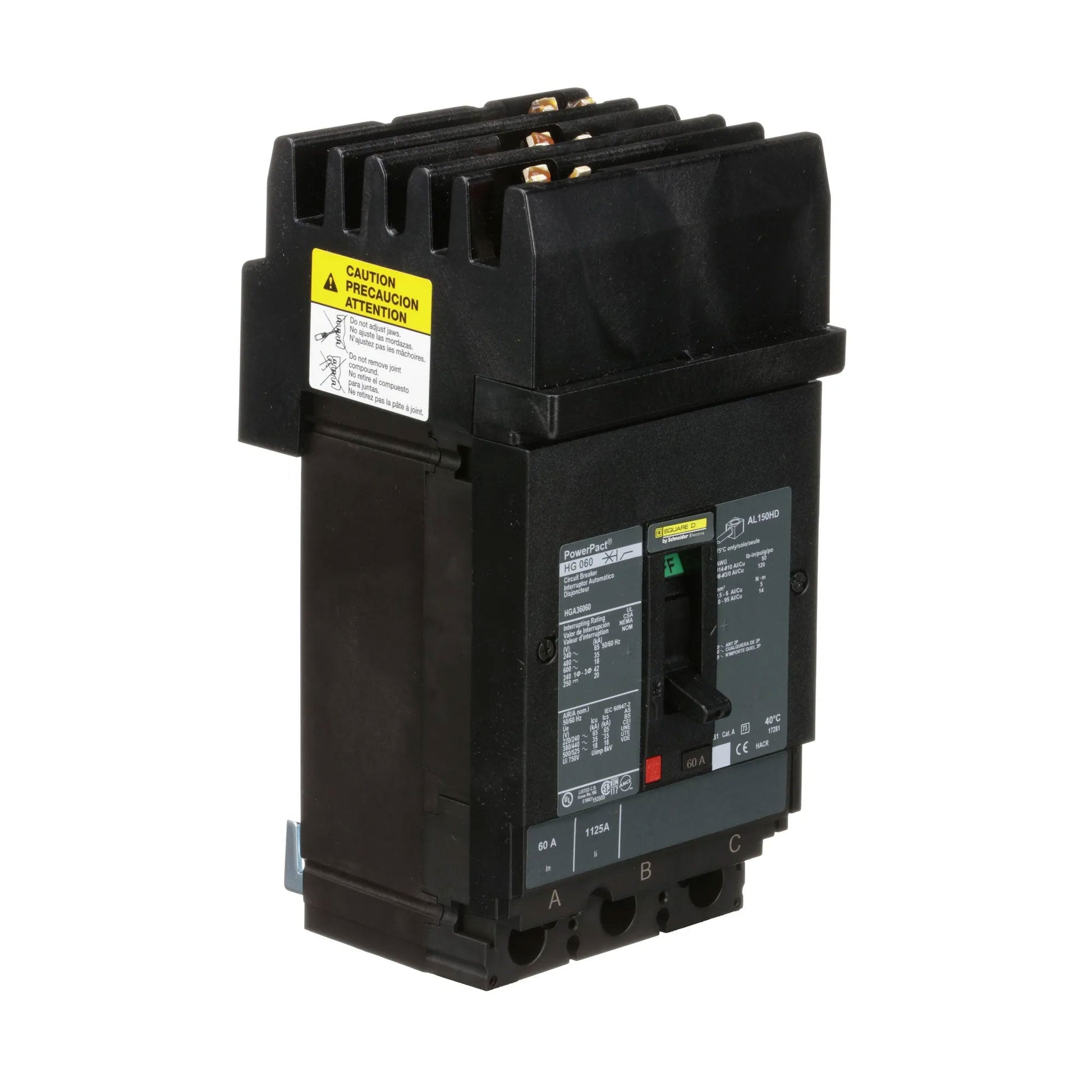

The Square D HGA36060 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 60 amp breaker rated for 600 volts with an AIC rating of 35kA at 480V. This model features thermal magnetic protection and uses a plug-in panelboard connection for easy installation.

Key Features:
✔ Part Number: HGA36060
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGA
✔ Voltage: 600
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Plug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 150A/HG
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 3 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901795032
✔ GTIN: 00785901795032
✔ Country of Origin: Mexico

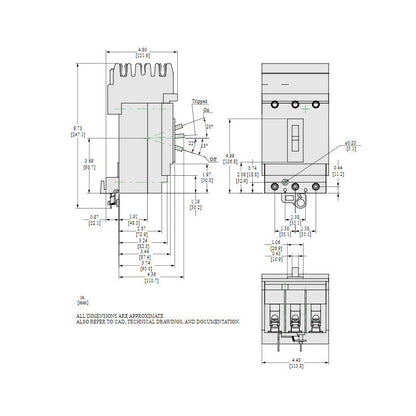

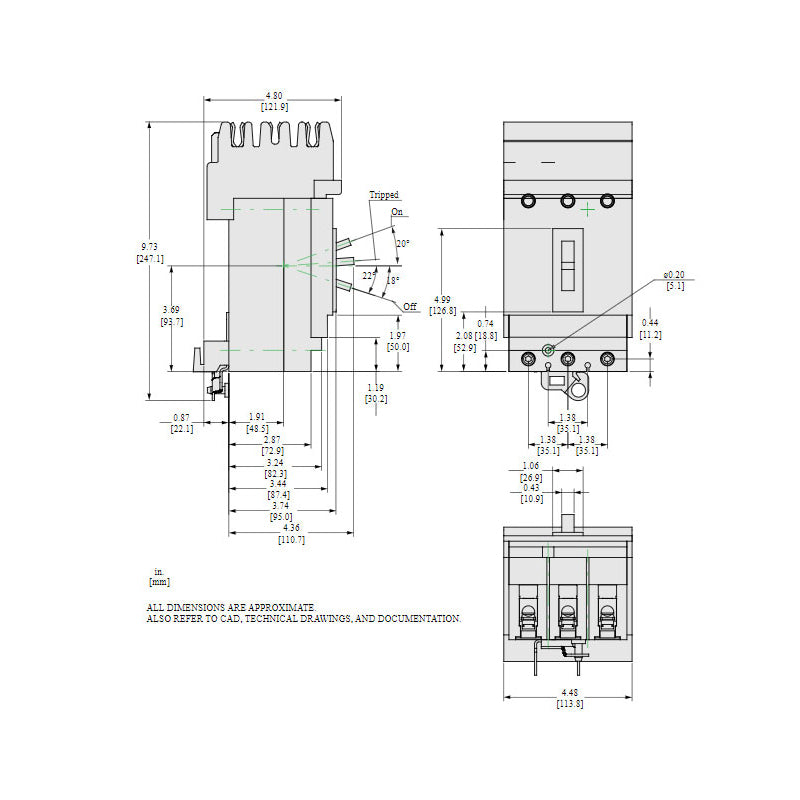

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 5 lb
✔ Panel Type: I Line Panelboards
✔ Standards: CE, CSA, IEC, UL listed
✔ Certification: CE, CSA, IEC, UL listed
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
