Square D HGA36100U31X Circuit Breaker | 600V 100A 3P 35kA@480V Powerpact
Square D HGA36100U31X Circuit Breaker | 600V 100A 3P 35kA@480V Powerpact
Price:
Sale
Sold out
Regular price
$1,089.84 USD
Regular price
$1,962.00 USD
Sale price
$1,089.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 9 left
Couldn't load pickup availability
Product Description:

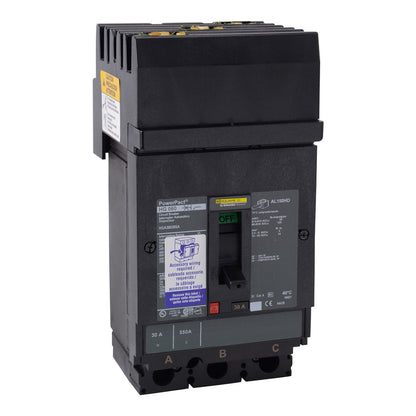

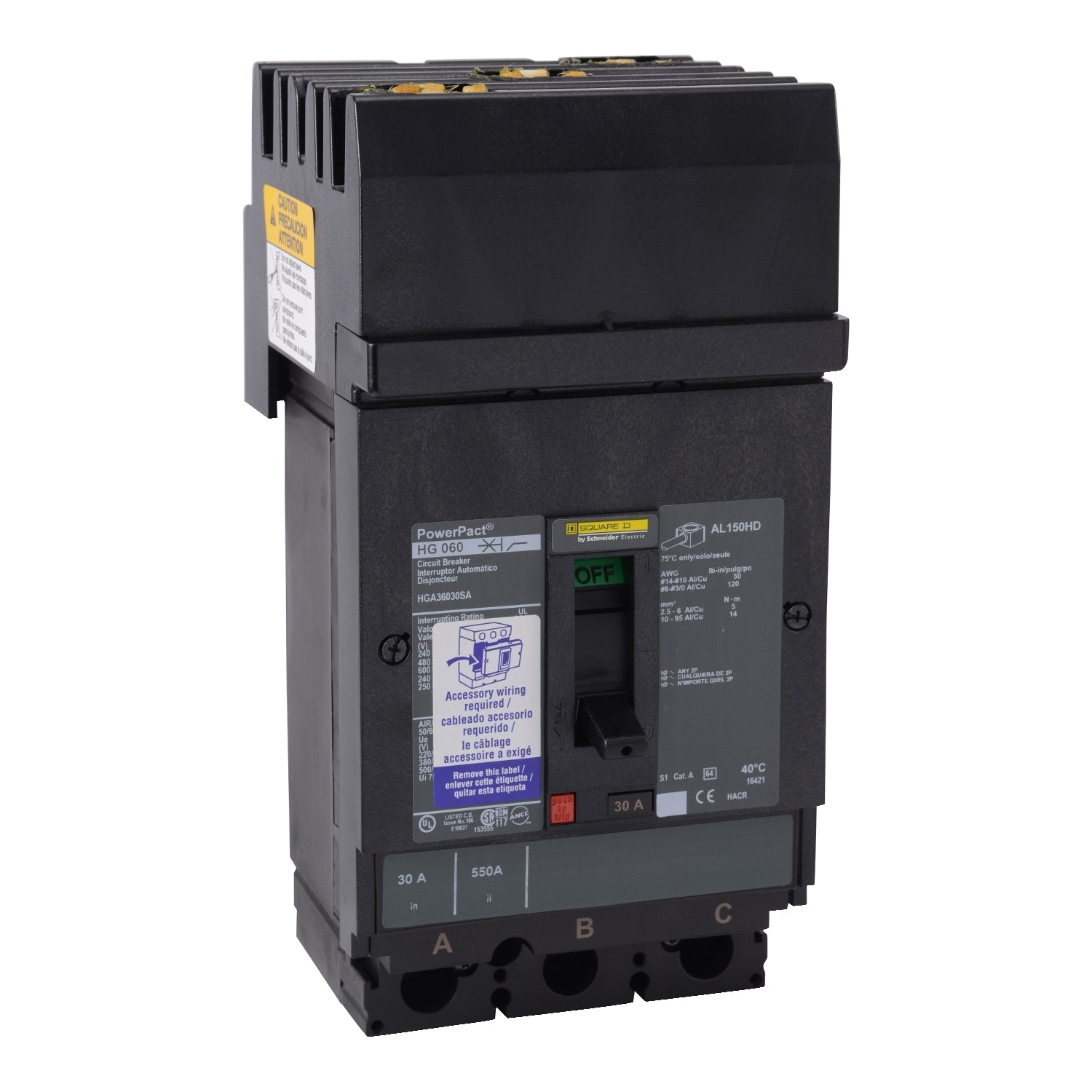

The Square D HGA36100U31X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 100 amp rating with a 35kA@480V AIC rating. This breaker uses a Plug In Panelboard connection and includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: HGA36100U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGA
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Plug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ Wire Size: Min. 14 AWG (Cu/Al) Max. 3/0 AWG (Cu/Al)
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901559955
✔ GTIN: 00785901559955
✔ Country of Origin: United States

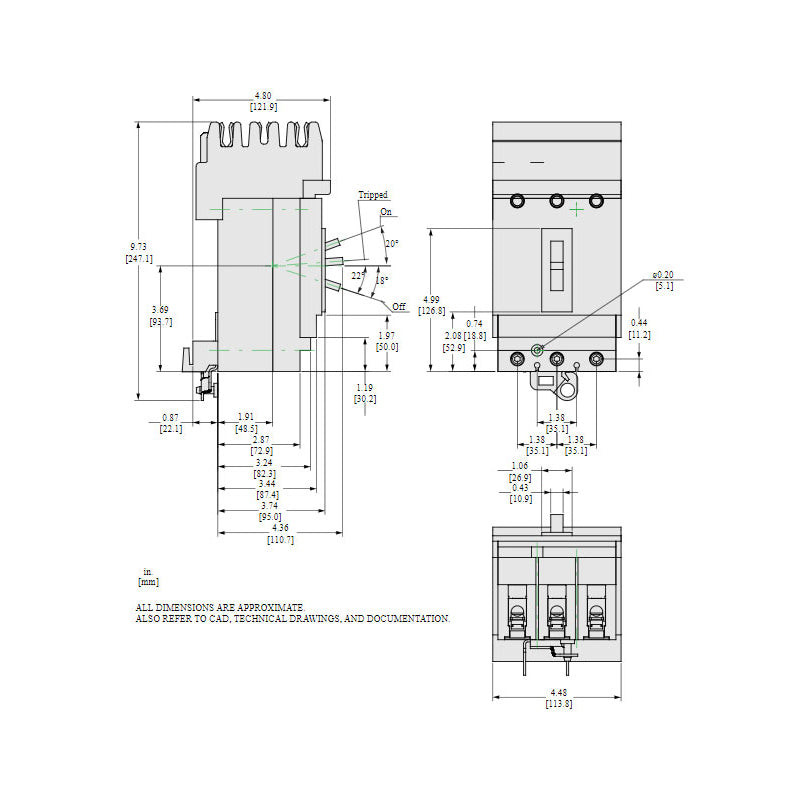

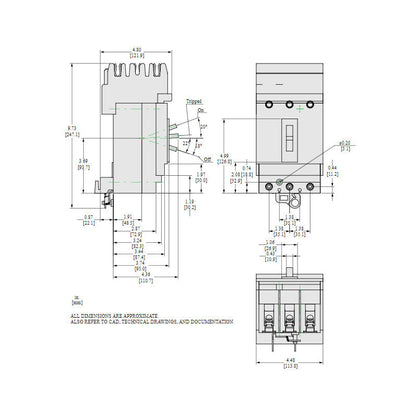

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 2.9
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
The Square D HGA36100U31X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 100 amp rating with a 35kA@480V AIC rating. This breaker uses a Plug In Panelboard connection and includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: HGA36100U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGA
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Plug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ Wire Size: Min. 14 AWG (Cu/Al) Max. 3/0 AWG (Cu/Al)
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901559955
✔ GTIN: 00785901559955
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 2.9
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
