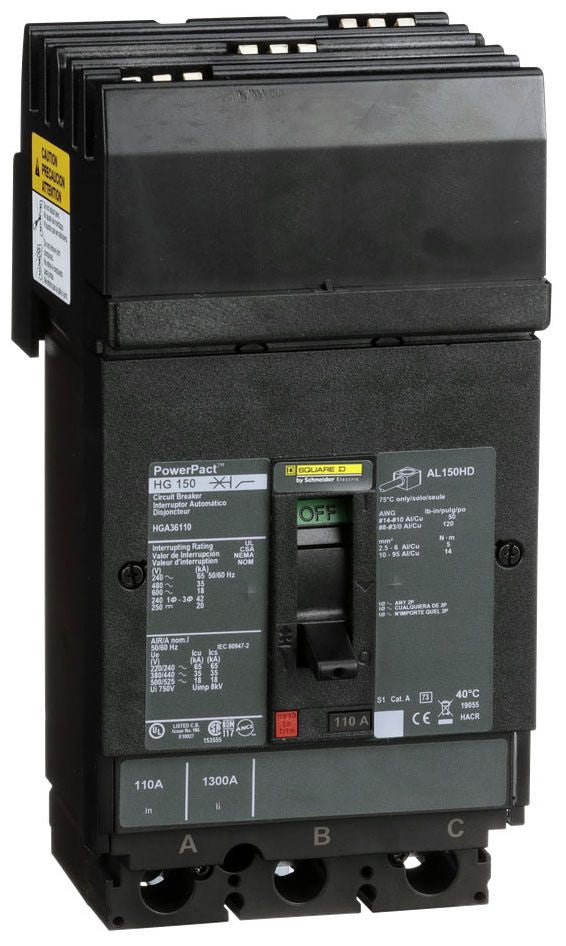

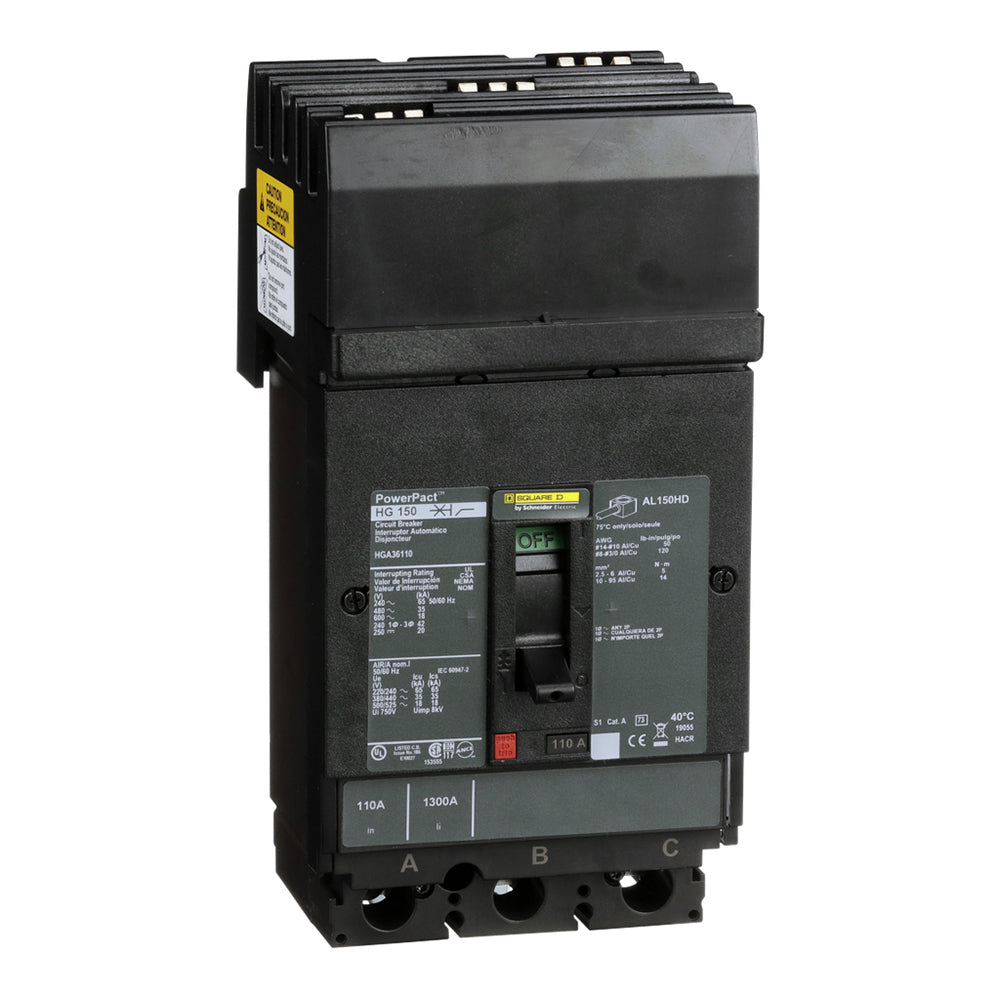

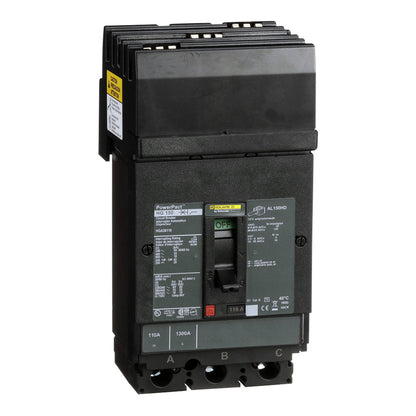

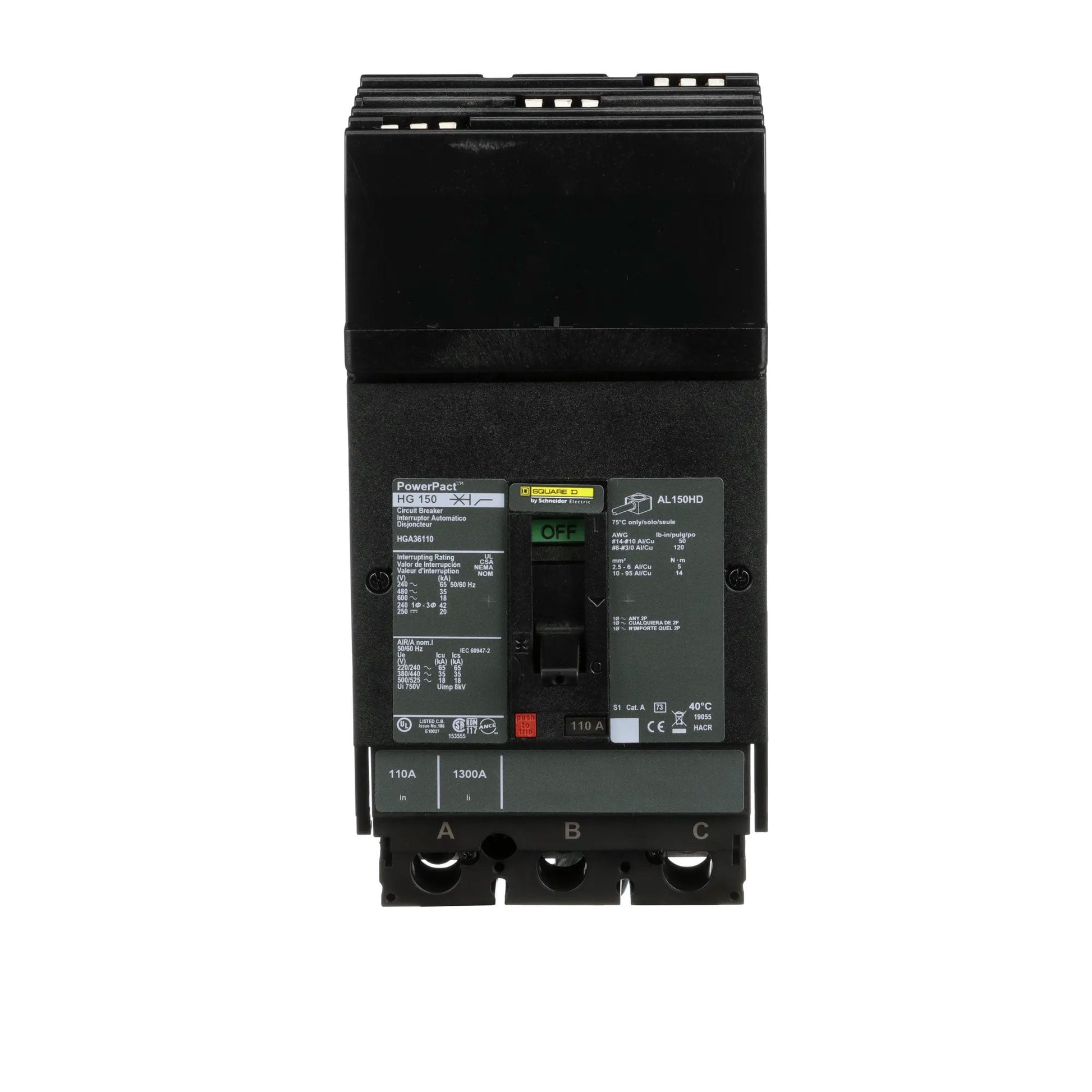

Square D HGA36110 Circuit Breaker | 600V 110A 3P 35kA@480V I-Line Style Plug-In Powerpact
Square D HGA36110 Circuit Breaker | 600V 110A 3P 35kA@480V I-Line Style Plug-In Powerpact
Price:
Sale
Sold out
Regular price
$1,654.84 USD
Regular price
$3,779.00 USD
Sale price
$1,654.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 4 left
Couldn't load pickup availability
Product Description:
The Square D HGA36110 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 110A rating and a 35kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection. It is designed for reliable performance in industrial and commercial applications.
Key Features:
✔ Part Number: HGA36110
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGA
✔ Voltage: 600
✔ Amperage: 110
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 150A/HG
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 3 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901422365
✔ GTIN: 00785901422365
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 2.68
✔ Panel Type: I Line Panelboards
✔ Standards: CE, CSA, IEC, UL listed
✔ Certification: CE, CSA, IEC, UL listed
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
