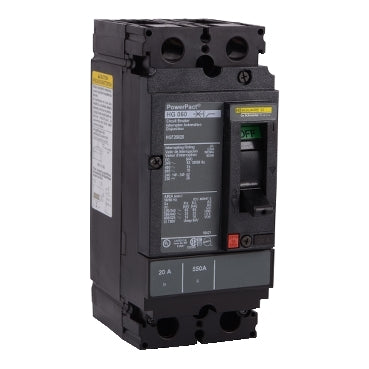

Square D HGF26060 Circuit Breaker | 600V 60A 2P 35kA@480V Bolt-On Powerpact

Product Description:
The Square D HGF26060 is a Molded Case Circuit Breaker from the Powerpact family. It features 2 poles, 600V voltage, and 60A amperage with a 35kA@480V AIC rating. This thermal magnetic breaker uses a bolt-on connection for secure installation. It does not include lugs, which must be ordered separately if needed.

Key Features:
✔ Part Number: HGF26060
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGF
✔ Voltage: 600
✔ Amperage: 60
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: H Frame
✔ Protection: Thermal Magnetic
✔ GTIN: 03606482046207
✔ Dimensions: Height 6.42 in (163 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 1.36
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
