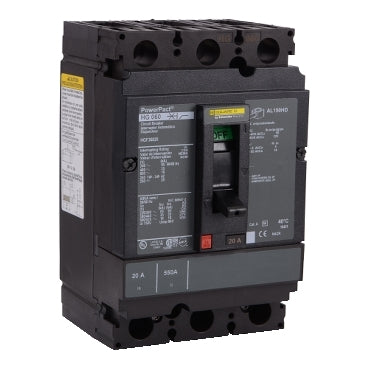

Square D HGF36025 Circuit Breaker | 600V 25A 3P 35kA@480V Bolt-On Powerpact

Product Description:
The Square D HGF36025 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 25A rating and a 35kA@480V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection. It does not include lugs, which must be ordered separately if needed.

Key Features:
✔ Part Number: HGF36025
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGF
✔ Voltage: 600
✔ Amperage: 25
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: H Frame
✔ Protection: Thermal Magnetic
✔ Dimensions: Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 5
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
