Square D HGL26015 Circuit Breaker | 600V 15A 2P 35kA@480V Feed-Thru Powerpact

Product Description:

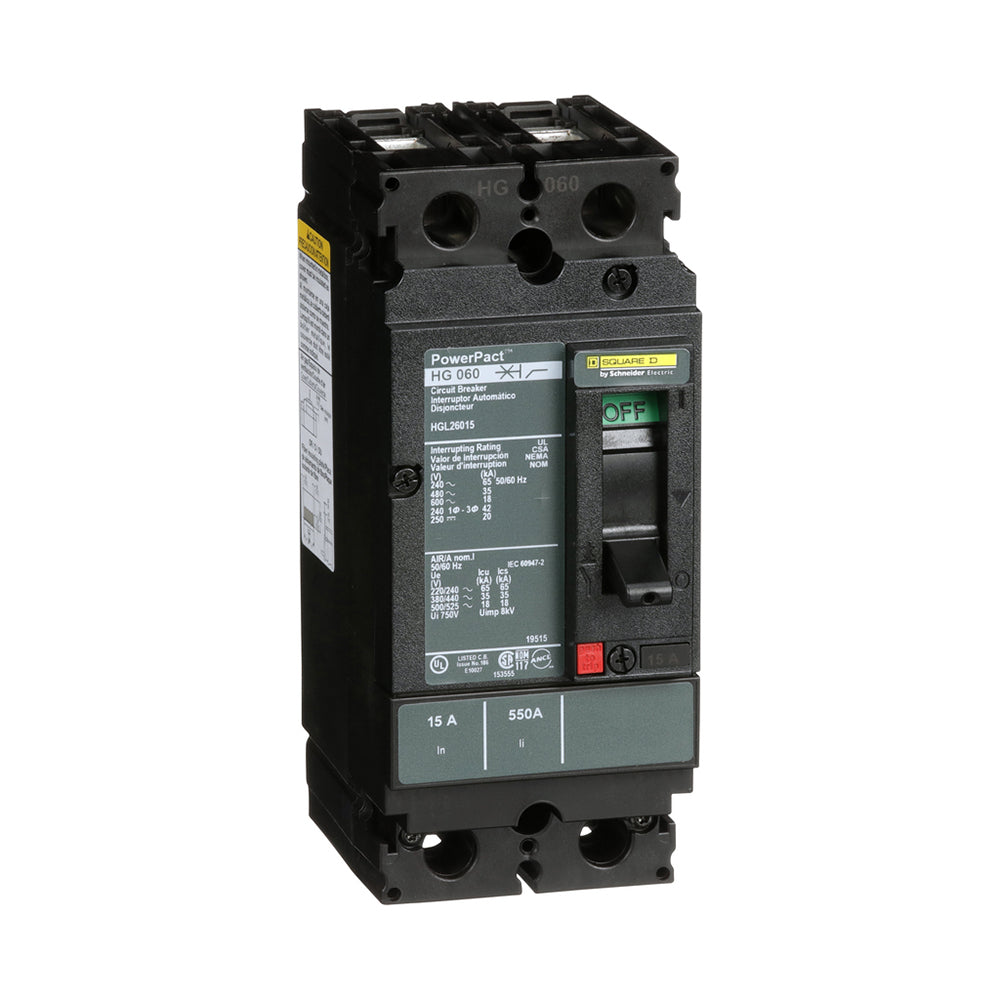

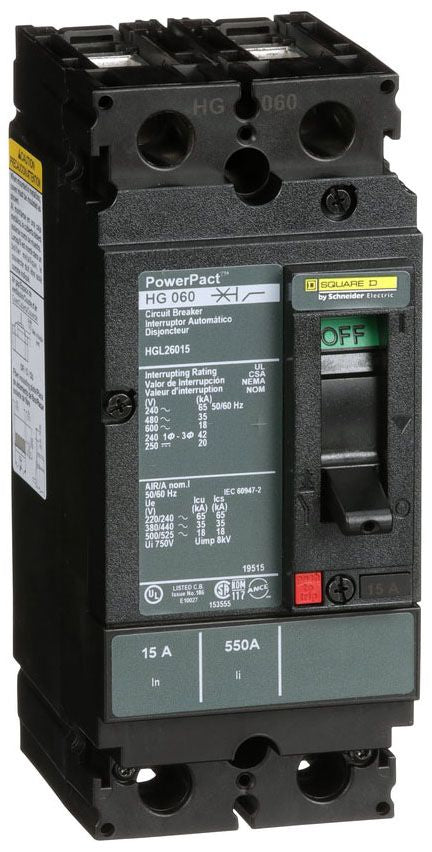

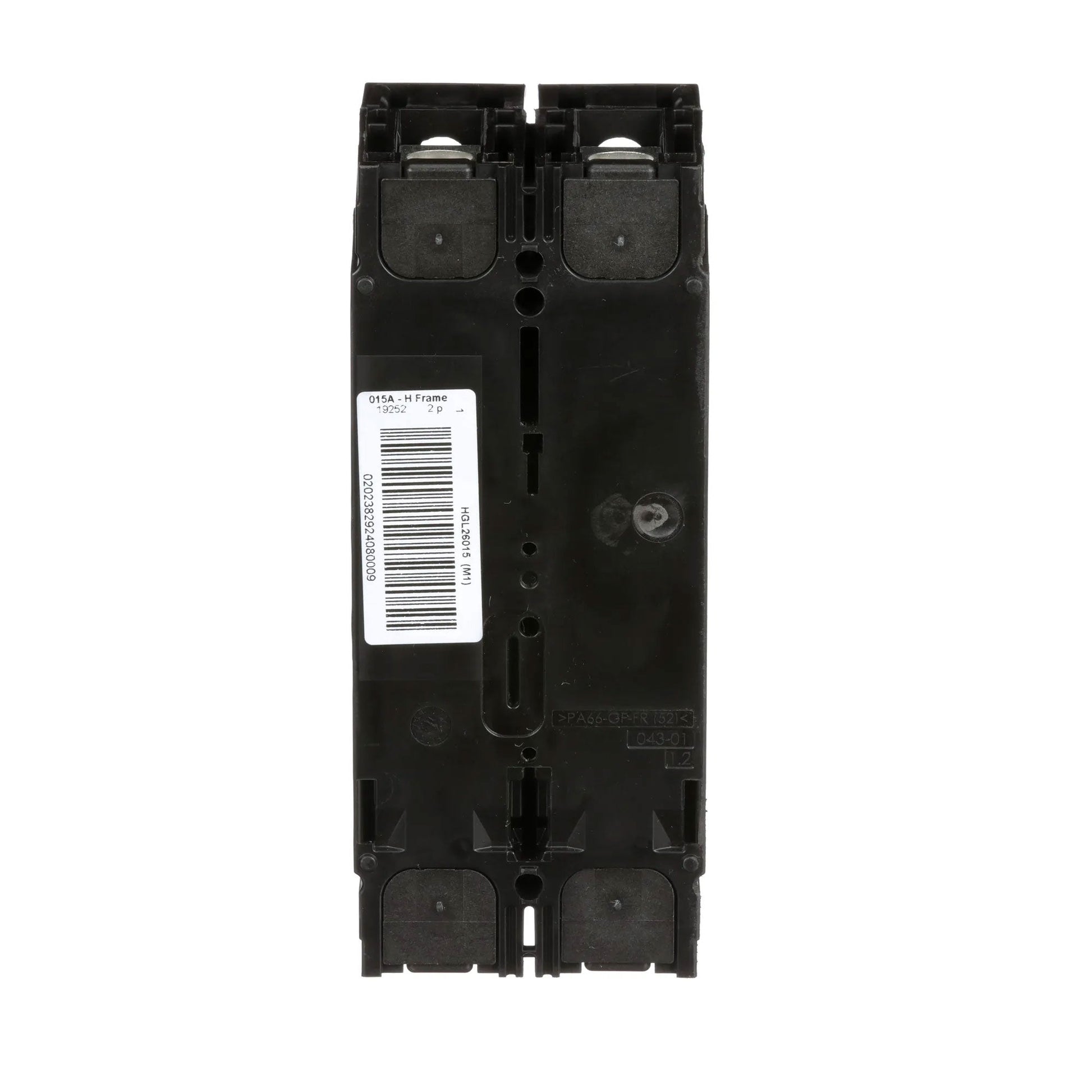

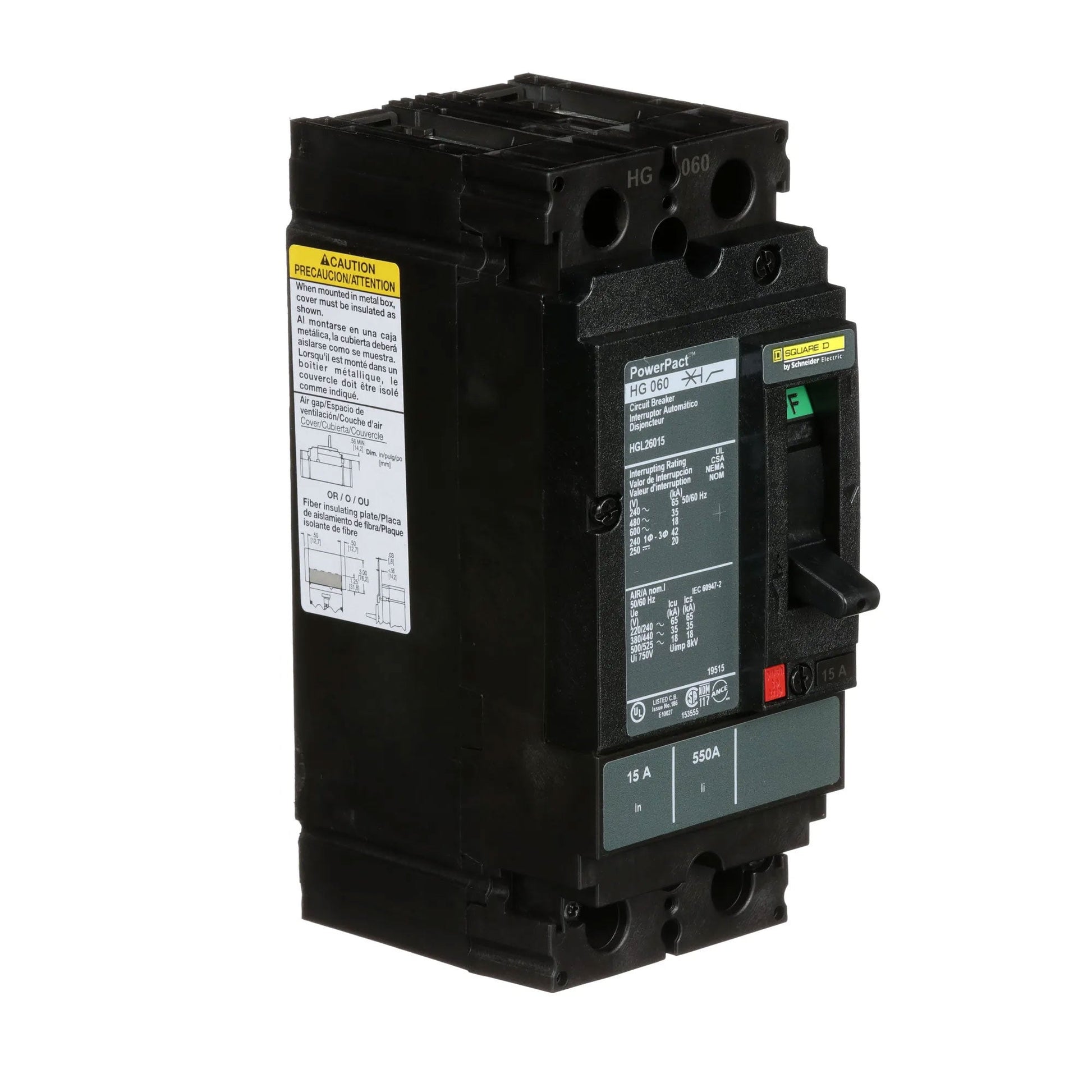

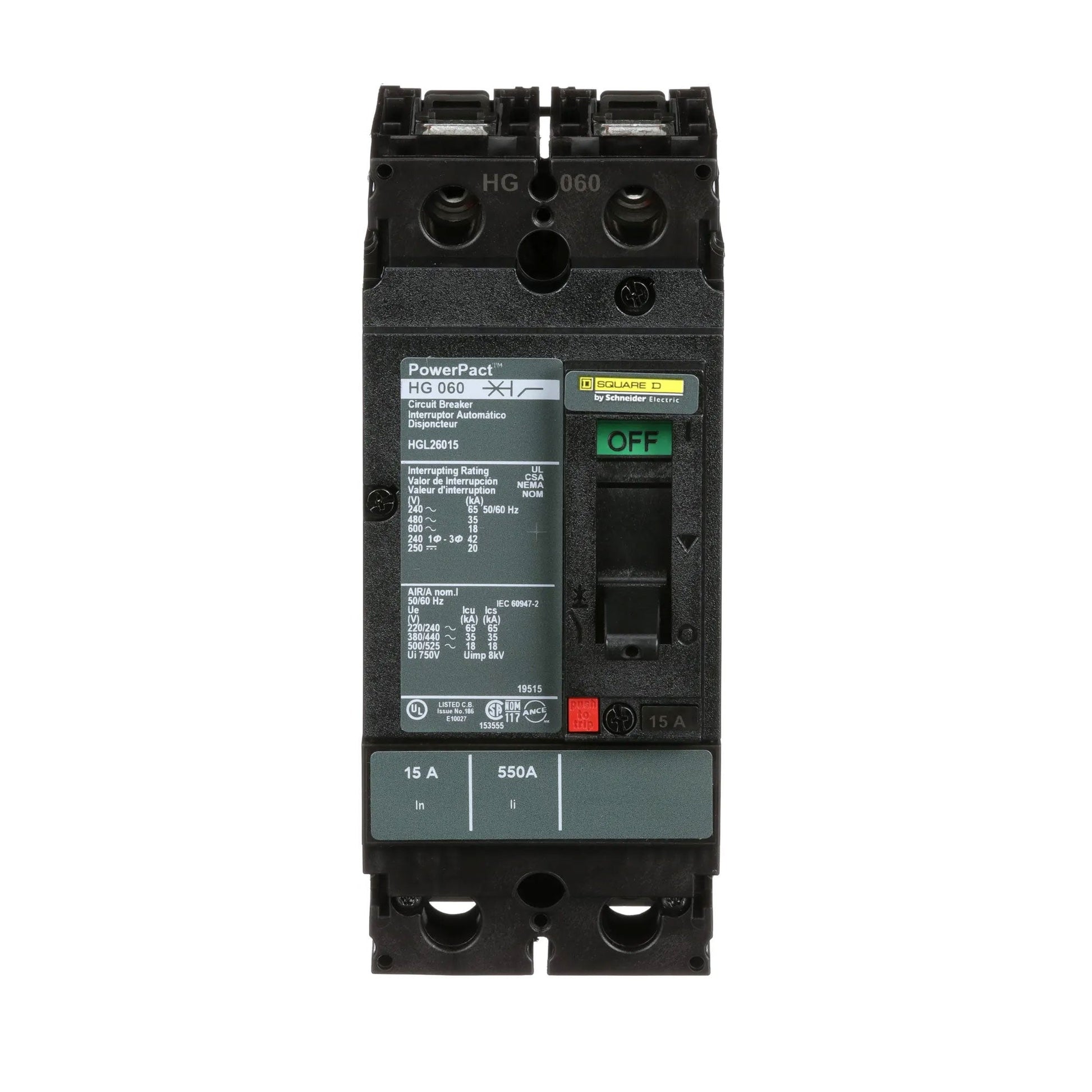

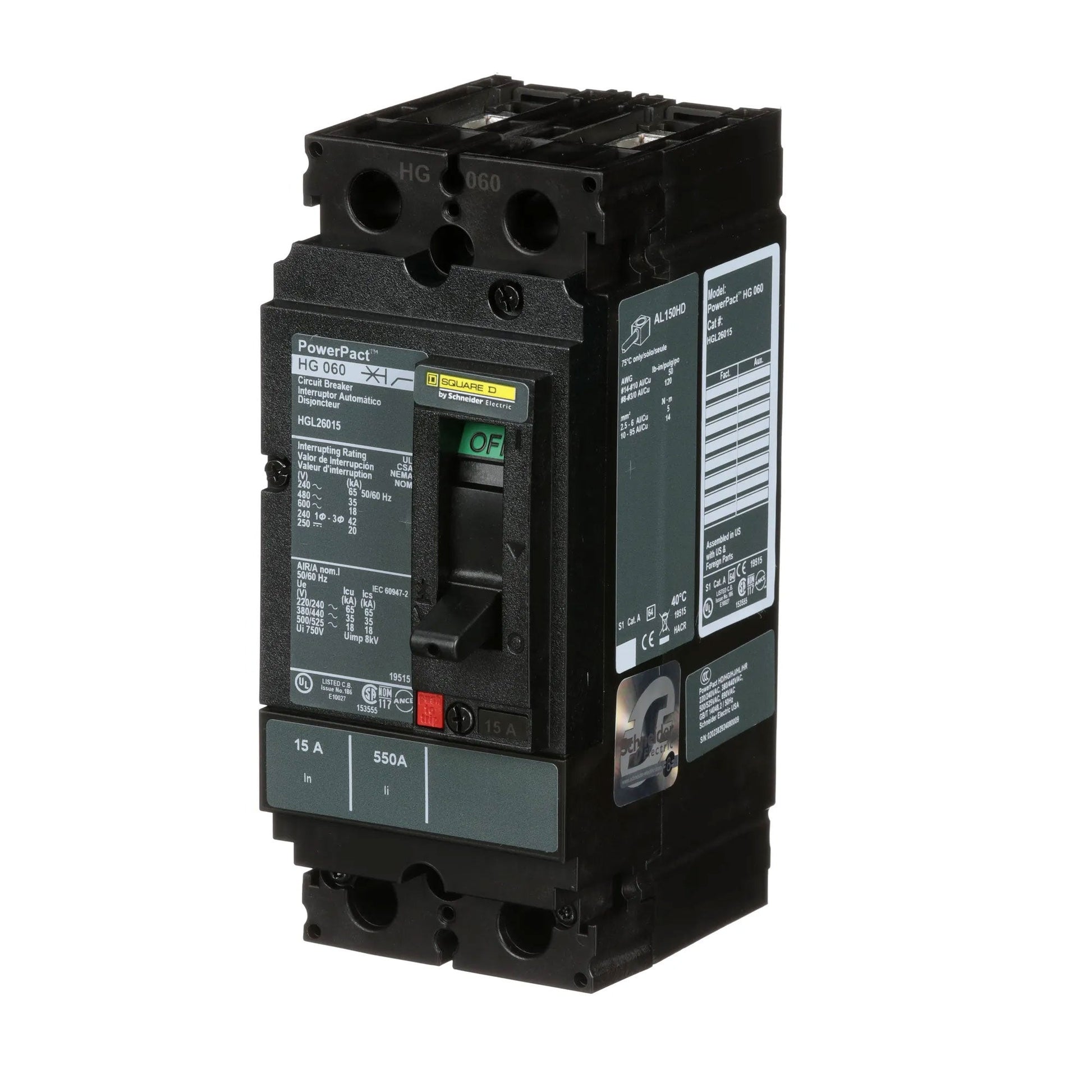

The Square D HGL26015 is a Molded Case Circuit Breaker from the Powerpact family. It is a 2-pole, 600 Volt, 15 amp breaker with a 35kA@480V AIC rating. This model uses a Feed-Thru connection and provides Thermal Magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: HGL26015
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGL
✔ Voltage: 600
✔ Amperage: 15
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 150A/HG
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 3 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Not Applicable
✔ UPC: 785901433750
✔ GTIN: 00785901433750
✔ Country of Origin: Mexico
✔ Dimensions: 2.74 in x 6.4 in
✔ Weight: 1.38
✔ Standards: CE, CSA, IEC, UL Listed
✔ Certification: CE, CSA, IEC, UL Listed
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
