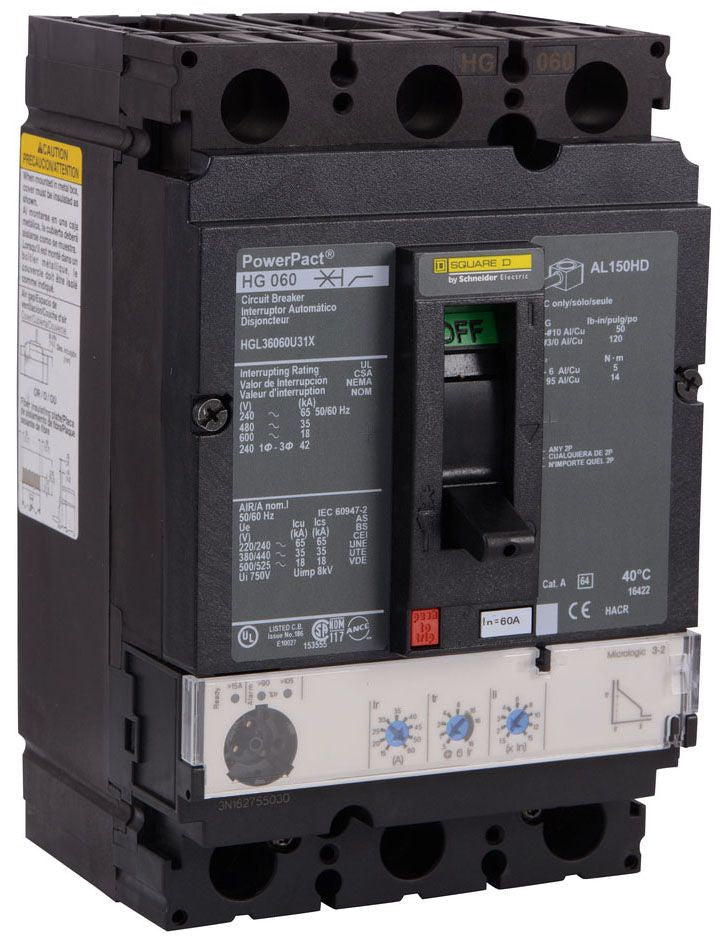

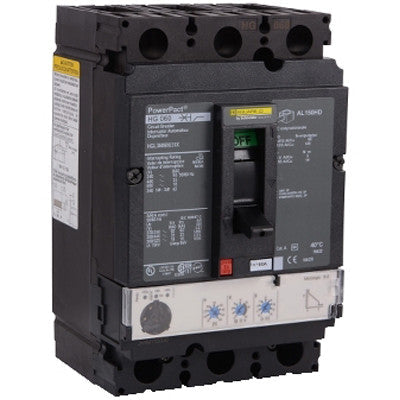

Square D HGL36060U31X Circuit Breaker | 600V 60A 3P 35kA@480V Feed-Thru Powerpact HGL

Product Description:
The Square D HGL36060U31X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 60 amp breaker rated for 600 volts with an AIC rating of 35kA at 480V. This model features a Feed-Thru connection and solid state protection for reliable performance.

Key Features:
✔ Part Number: HGL36060U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGL
✔ Voltage: 600
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Box Lug
✔ Frame Size: 150A/HG
✔ Wire Size: Min. 14 AWG Max. 3/0 AWG
✔ Breaker Type: Micrologic Standard W LI Functionality
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901309697
✔ GTIN: 00785901309697
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 2.85
✔ Standards: BS, CCC, CE Marked, CEI, CSA Certified, Federal Specification W-C-375B/GEN, HACR, HID, IEC, NEMA, NMX, NOM, SWD, UL Listed, UNE, UTE, VDE
✔ Certification: BS, CCC, CE Marked, CEI, CSA Certified, Federal Specification W-C-375B/GEN, HACR, HID, IEC, NEMA, NMX, NOM, SWD, UL Listed, UNE, UTE, VDE
