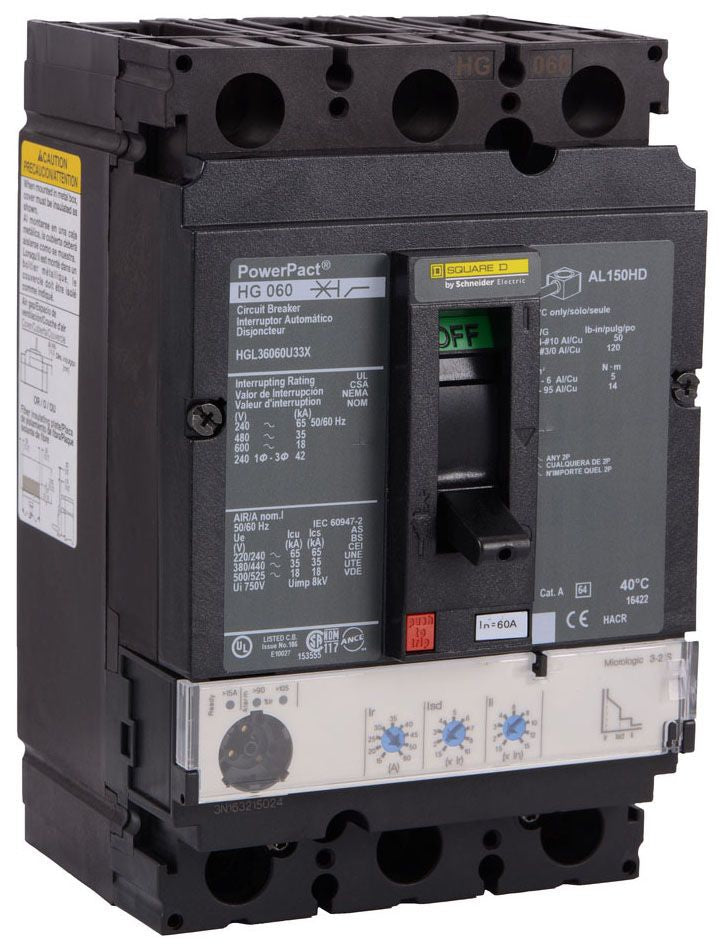

Square D HGL36060U33X Circuit Breaker | 600V 60A 3P 35kA@480V Feed-Thru Powerpact

Product Description:
The Square D HGL36060U33X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 60 amp rating with a 35kA@480V AIC rating. This breaker uses Feed-Thru connections and solid-state protection for reliable performance. It is designed for industrial and commercial electrical systems.

Key Features:
✔ Part Number: HGL36060U33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGL
✔ Voltage: 600
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Terminal Connection: Box Lug
✔ Frame Size: 150A/HG
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901566144
✔ GTIN: 00785901566144
✔ Country of Origin: United States
✔ Dimensions: Height 6.42 in (163 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 2.27
✔ Standards: BS, CCC, CE Marked, CEI, CSA Certified, Federal Specification W-C-375B/GEN, HACR, HID, IEC, NEMA, NMX, NOM, SWD, UL Listed, UNE, UTE, VDE
