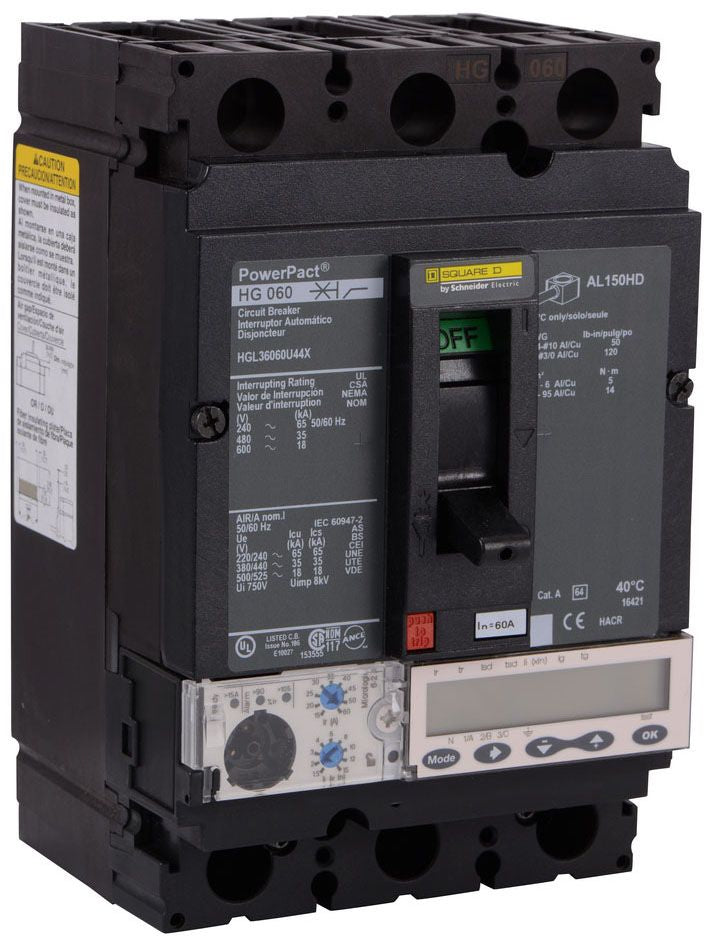

Square D HGL36060U44X Circuit Breaker | 600V 60A 3P 35kA@480V Feed-Thru Powerpact
Square D HGL36060U44X Circuit Breaker | 600V 60A 3P 35kA@480V Feed-Thru Powerpact
Price:
Sale
Sold out
Regular price
$1,347.52 USD
Regular price
$5,140.00 USD
Sale price
$1,347.52 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D HGL36060U44X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 60 amp rating with a 35kA@480V AIC rating. This breaker uses Feed-Thru connections and includes Solid State protection with LSIG functionality. It is designed for industrial and commercial electrical systems.
Key Features:
✔ Part Number: HGL36060U44X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGL
✔ Voltage: 600
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
✔ Terminal Connection: Box Lug
✔ Frame Size: 150A/HG
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 3/0 AWG
✔ Breaker Type: Micrologic Ammeter W LSIG Functionality
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901342885
✔ GTIN: 00785901342885
✔ Country of Origin: United States
✔ Dimensions: Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 2.27
✔ Standards: BS, CCC, CE Marked, CEI, CSA Certified, Federal Specification W-C-375B/GEN, HACR, HID, IEC, NEMA, NMX, NOM, SWD, UL Listed, UNE, UTE, VDE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
