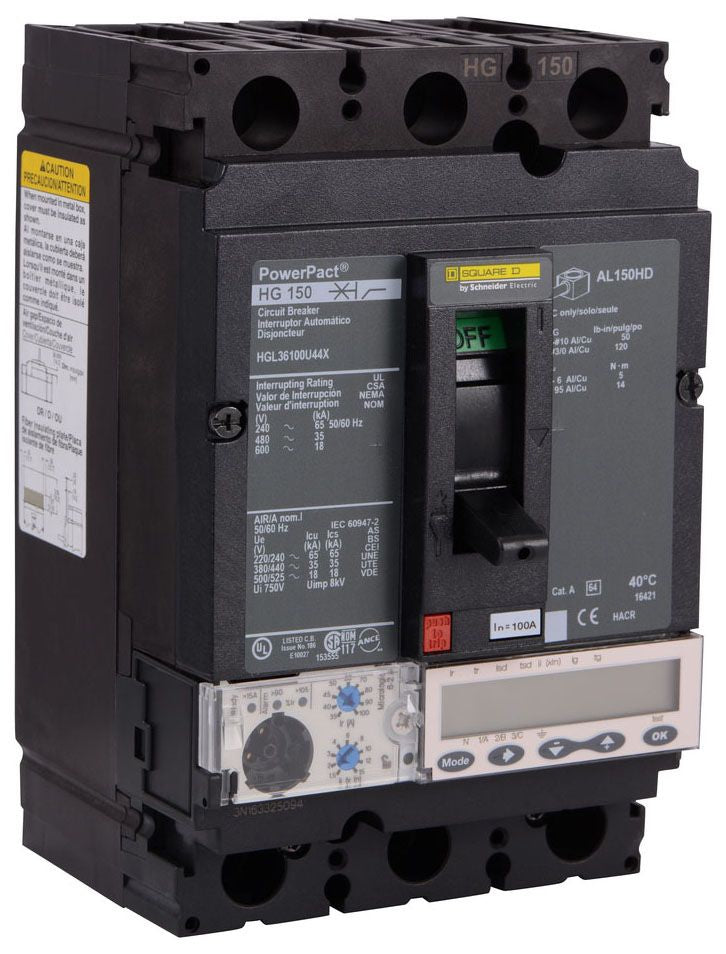

Square D HGL36100U43X Circuit Breaker | 600V 100A 3P 35kA@480V Feed-Thru Powerpact
Square D HGL36100U43X Circuit Breaker | 600V 100A 3P 35kA@480V Feed-Thru Powerpact
Price:
Sale
Sold out
Regular price
$3,666.84 USD
Regular price
$5,410.00 USD
Sale price
$3,666.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D HGL36100U43X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 100 amp rating with a 35kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes solid-state protection. It is designed for reliable performance in electrical systems.
Key Features:
✔ Part Number: HGL36100U43X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGL
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Terminal Connection: Box Lug
✔ Frame Size: 150A/HG
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 3/0 AWG
✔ Breaker Type: Micrologic Ammeter W LSI Functionality
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 094715966430
✔ GTIN: 03606486119297
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 2.27
✔ Standards: BS, CCC, CE Marked, CEI, CSA Certified, Federal Specification W-C-375B/GEN, HACR, HID, IEC, NEMA, NMX, NOM, SWD, UL Listed, UNE, UTE, VDE
✔ Certification: BS, CCC, CE Marked, CEI, CSA Certified, Federal Specification W-C-375B/GEN, HACR, HID, IEC, NEMA, NMX, NOM, SWD, UL Listed, UNE, UTE, VDE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
