Square D HGM36060 Circuit Breaker | 600V 60A 3P 35kA@480V Bolt-On HGM Powerpact

Product Description:

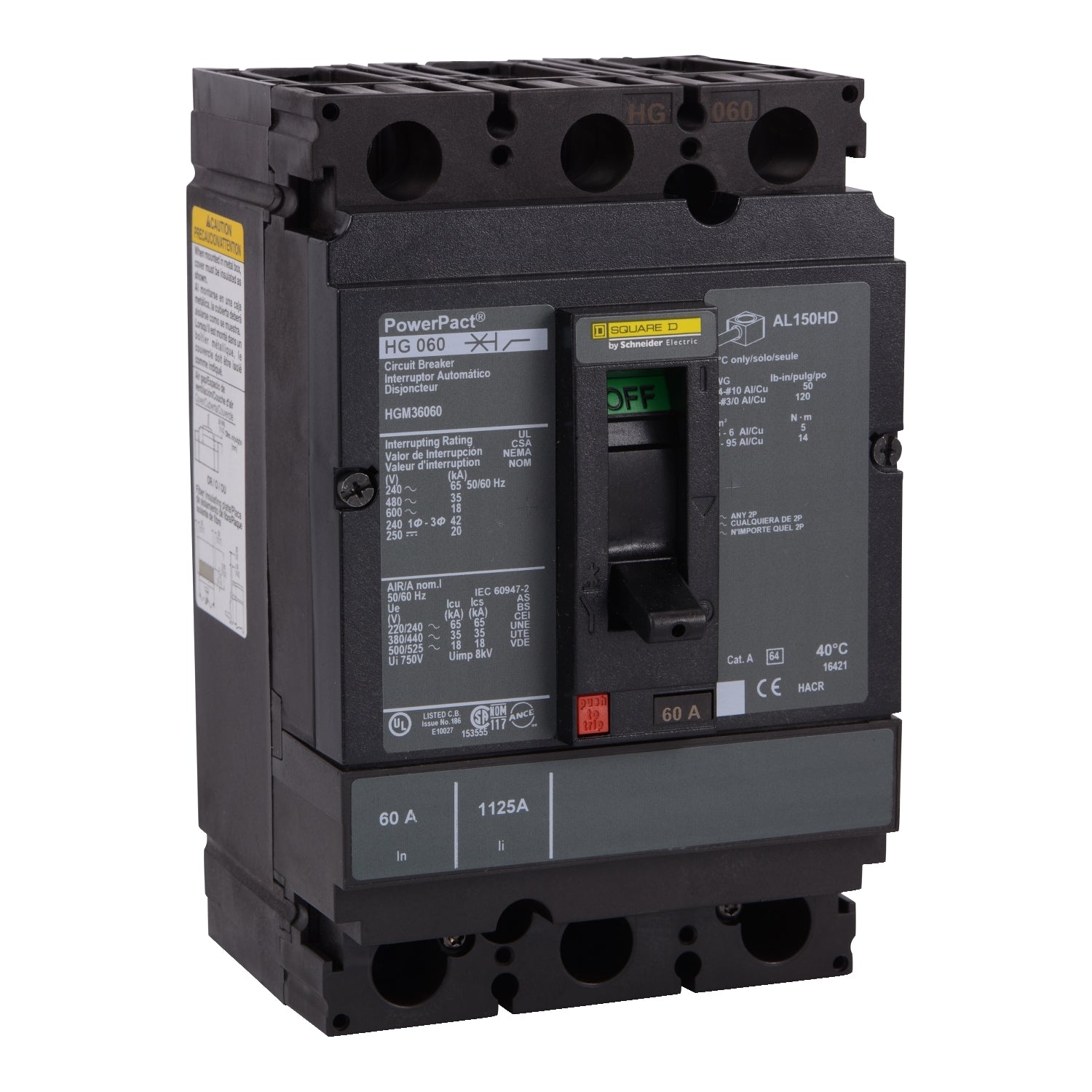

The Square D HGM36060 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 60 amp breaker rated for 600 Volts with a 35kA@480V AIC rating. This unit features a bolt-on connection and provides thermal magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: HGM36060
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGM
✔ Voltage: 600
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: H Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901002659
✔ GTIN: 00785901002659
✔ Country of Origin: United States
✔ Dimensions: Height 6.42 in (163 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 5
✔ Certification: CE-CSA-CCC-IEC-UL LISTED
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
