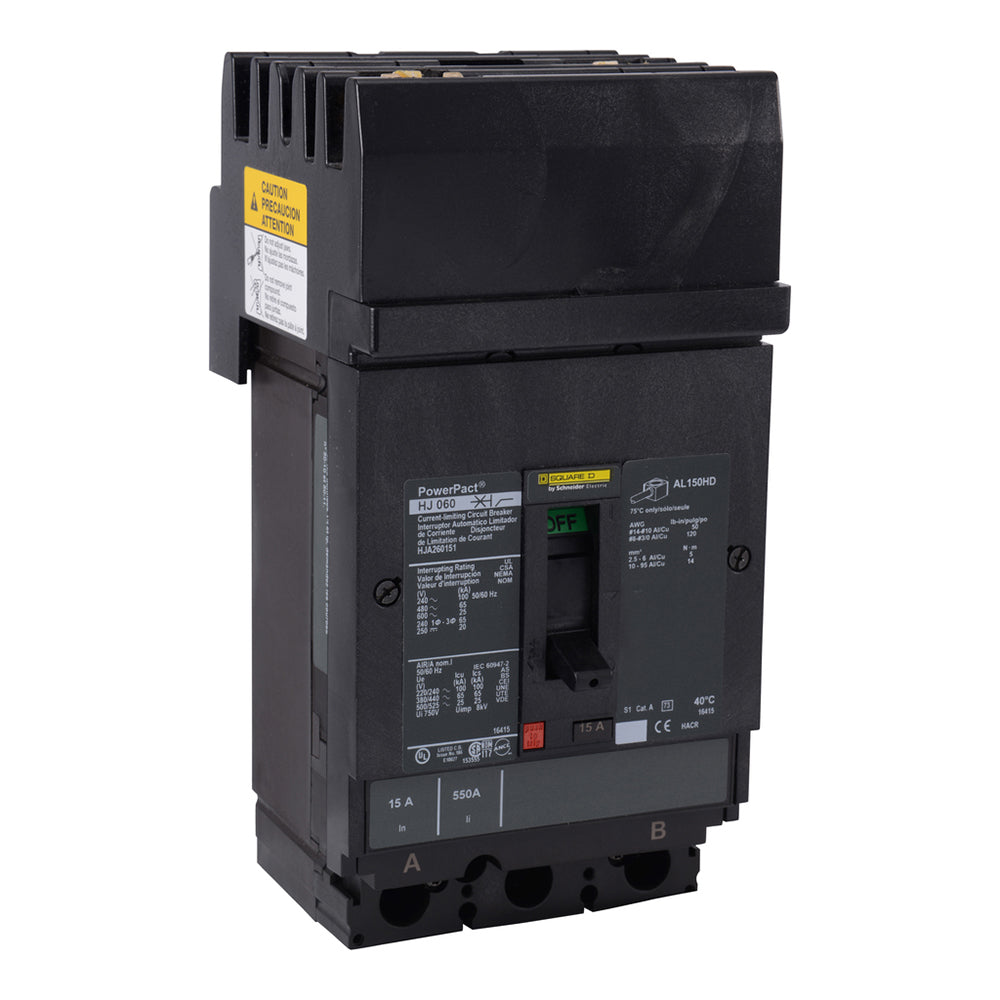

Square D HJA261501 Circuit Breaker | 600V 150A 2P 65kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D HJA261501 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 600V, 150A rating and an AIC rating of 65kA@480V. This breaker uses an I-Line Style Plug-In connection for easy installation. It is suitable for industrial and commercial electrical systems.

Key Features:
✔ Part Number: HJA261501
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HJA
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ Wire Size: Min. 14 AWG (Cu/Al) Max. 3/0 AWG (Cu/Al)
✔ Phase Connection: AB
✔ UPC: 785901511618
✔ GTIN: 00785901511618
✔ Country of Origin: United States
✔ Dimensions: 2.74 in x 6.4 in
✔ Weight: 1.81
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
