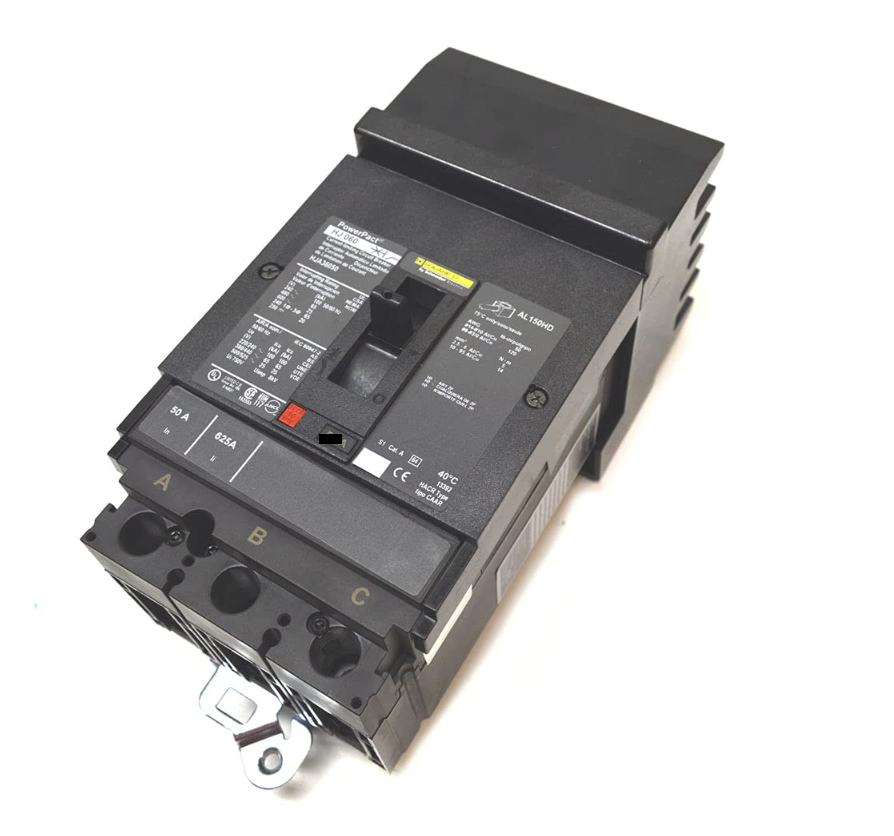

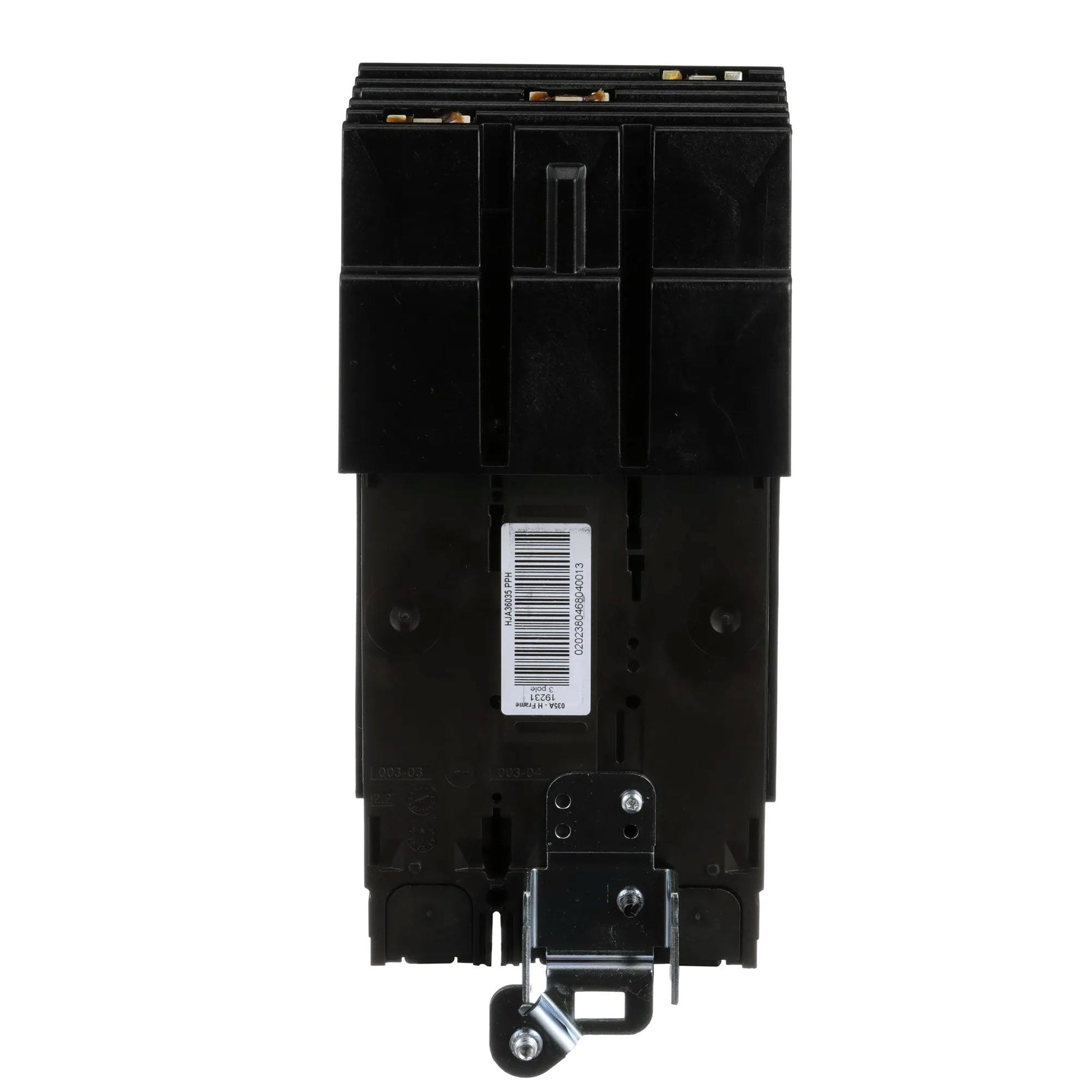

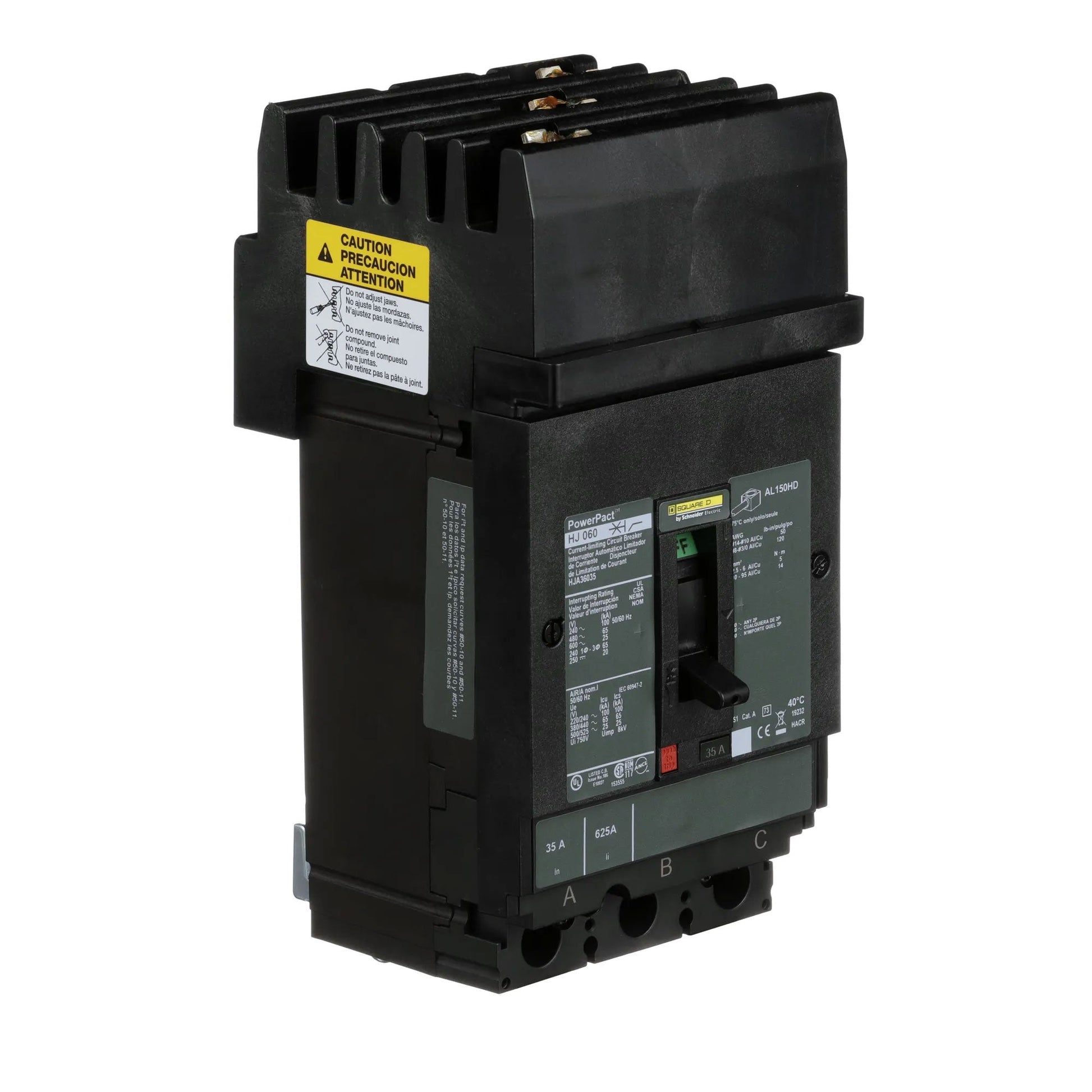

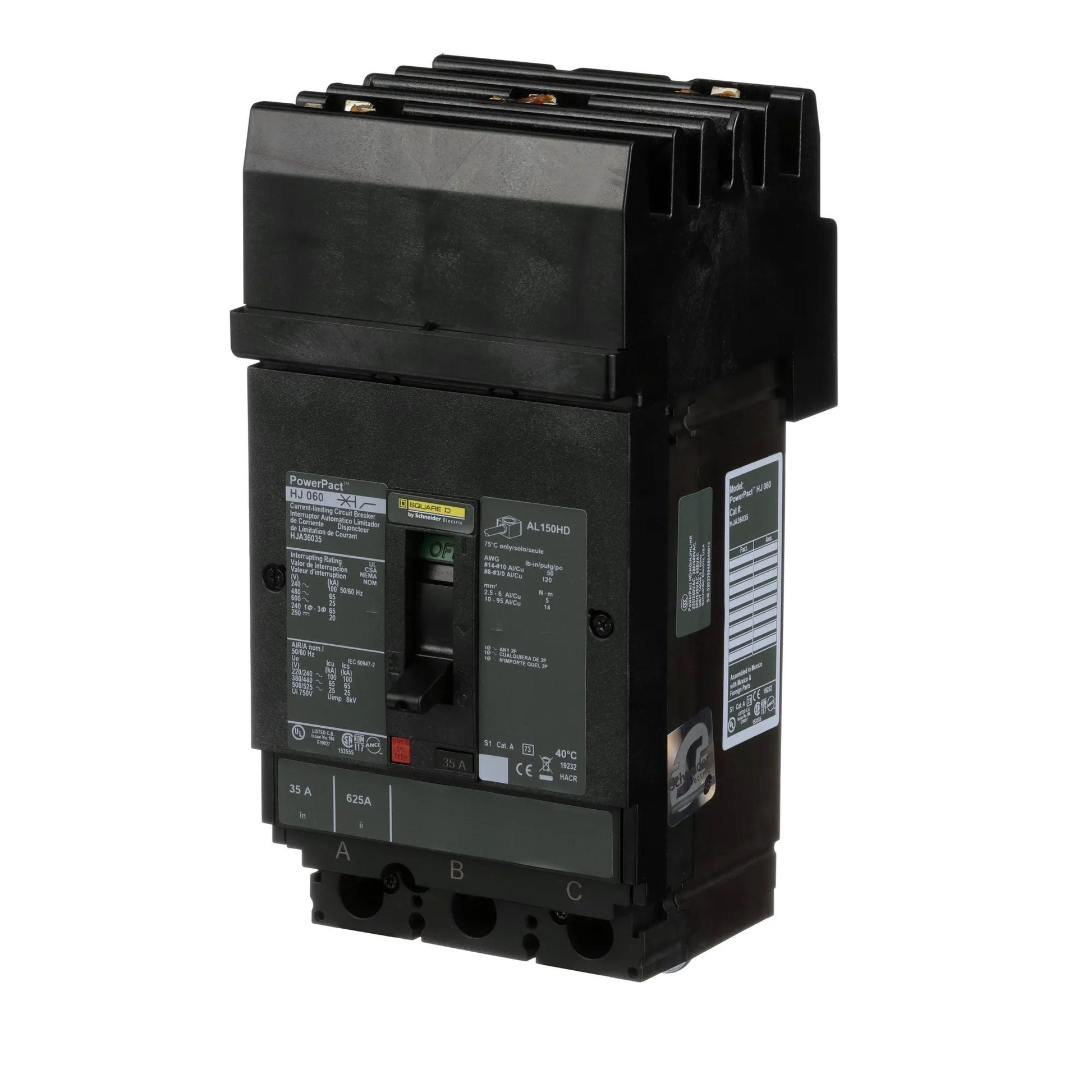

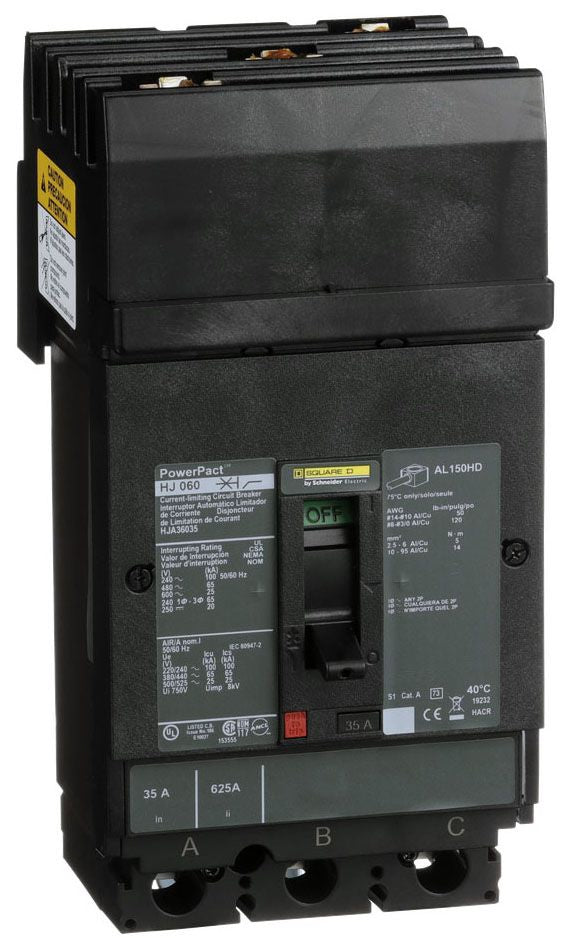

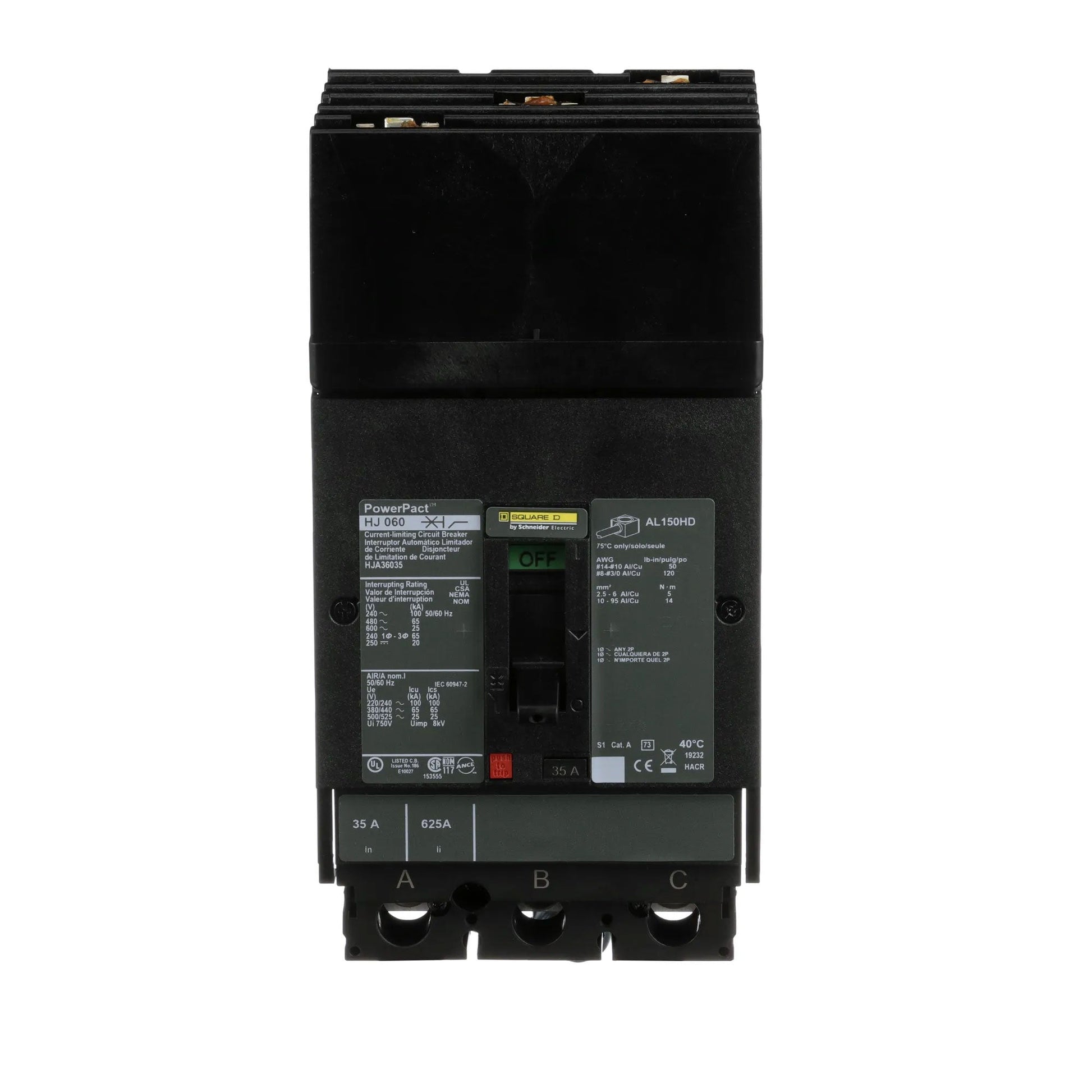

Square D HJA36035 Circuit Breaker | Powerpact HJA 600V 35A
Square D HJA36035 Circuit Breaker | Powerpact HJA 600V 35A
Price:
Sale
Sold out
Regular price
$853.44 USD
Regular price
$1,988.00 USD
Sale price
$853.44 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 10 left
Couldn't load pickup availability
Product Description:
The Square D HJA36035 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 35A rating and a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: HJA36035
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HJA
✔ Voltage: 600V
✔ Amperage: 35A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Protection: Thermal Magnetic
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ Wire Size: 14 AWG (Min), 3/0 AWG (Max)
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ UPC: 785901422396
✔ GTIN: 00785901422396
✔ Country of Origin: Mexico
