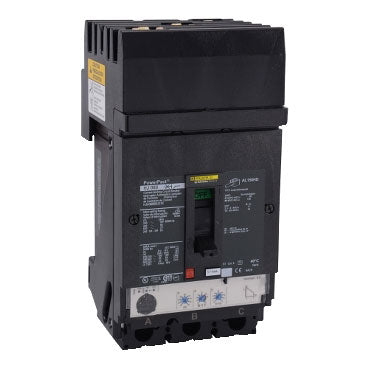

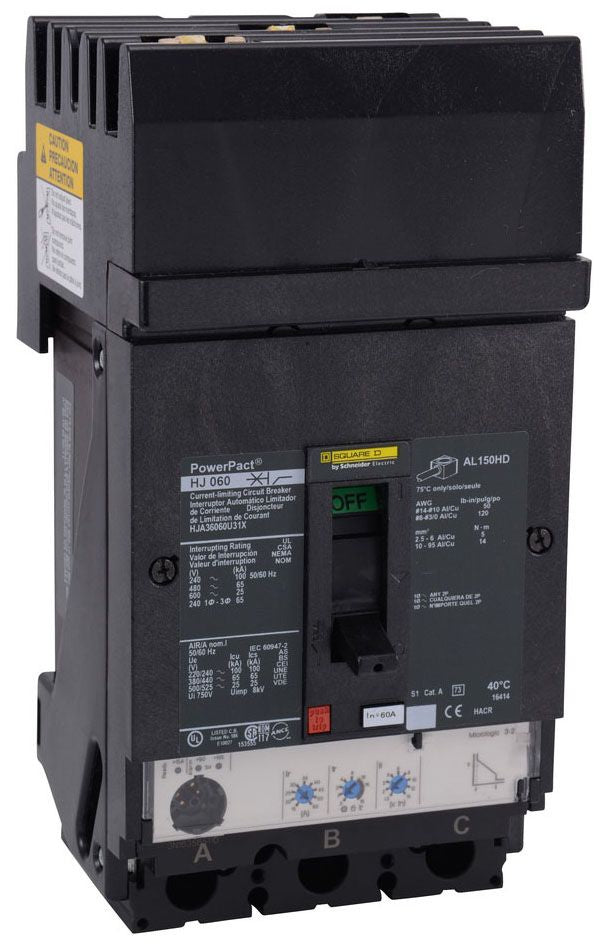

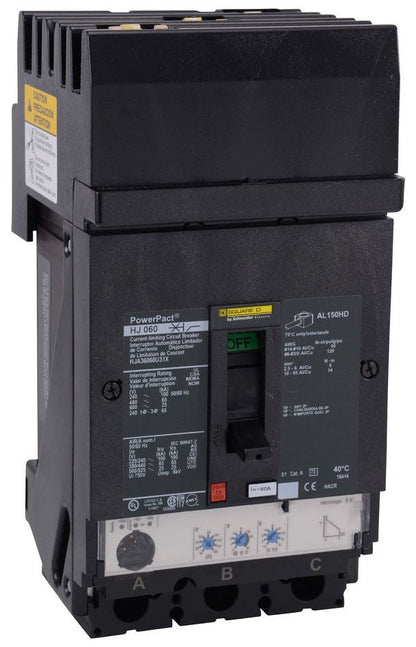

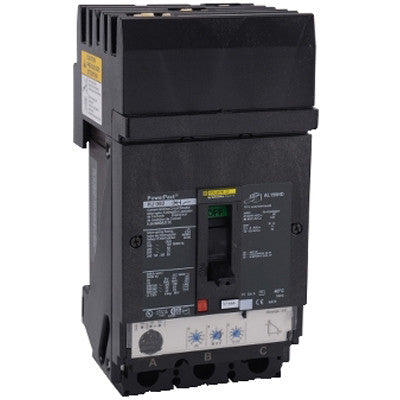

Square D HJA36060U31X Circuit Breaker | 600V 60A 3P 65kA@480V I-Line Plug-In Powerpact
Square D HJA36060U31X Circuit Breaker | 600V 60A 3P 65kA@480V I-Line Plug-In Powerpact
Price:
Sale
Sold out
Regular price
$1,582.81 USD
Regular price
$2,224.00 USD
Sale price
$1,582.81 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 5 left
Couldn't load pickup availability
Product Description:
The Square D HJA36060U31X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 60 amp breaker rated for 600 Volts with an AIC rating of 65kA@480V. This unit features an I-Line Style Plug-In connection and solid state protection for reliable performance.
Key Features:
✔ Part Number: HJA36060U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HJA
✔ Voltage: 600
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ Wire Size: Min. 14 AWG (Cu/Al) Max. 3/0 AWG (Cu/Al)
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901235873
✔ GTIN: 00785901235873
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 2.64
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
The Square D HJA36060U31X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 60 amp breaker rated for 600 Volts with an AIC rating of 65kA@480V. This unit features an I-Line Style Plug-In connection and solid state protection for reliable performance.
