Square D
Square D HJA36060U43X Circuit Breaker | 600V 60A 3P 65kA@480V I-Line Plug-In Powerpact
Square D HJA36060U43X Circuit Breaker | 600V 60A 3P 65kA@480V I-Line Plug-In Powerpact
Price:
Sale
Sold out
Regular price
$2,075.97 USD
Regular price
$3,051.00 USD
Sale price
$2,075.97 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low inventory, please call (855) 875-5050 for stock check
Couldn't load pickup availability
Product Description:

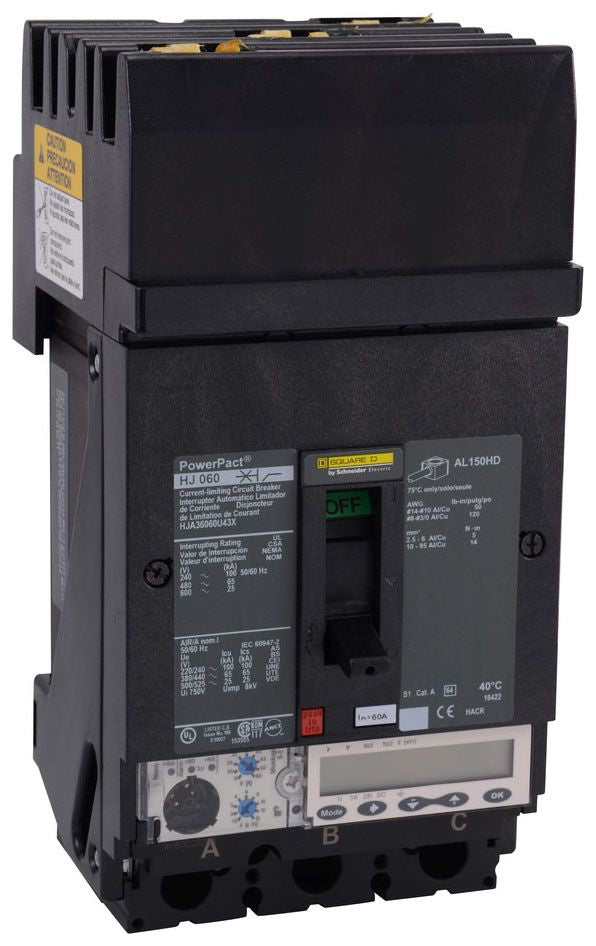

The Square D HJA36060U43X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 60 amp breaker rated for 600 Volts with an AIC rating of 65kA@480V. This unit features an I-Line Style Plug-In connection and solid state protection with LSI functions.
Key Features:
✔ Part Number: HJA36060U43X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HJA
✔ Voltage: 600
✔ Amperage: 60
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901013785
✔ GTIN: 00785901013785
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 3.63
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
The Square D HJA36060U43X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 60 amp breaker rated for 600 Volts with an AIC rating of 65kA@480V. This unit features an I-Line Style Plug-In connection and solid state protection with LSI functions.
