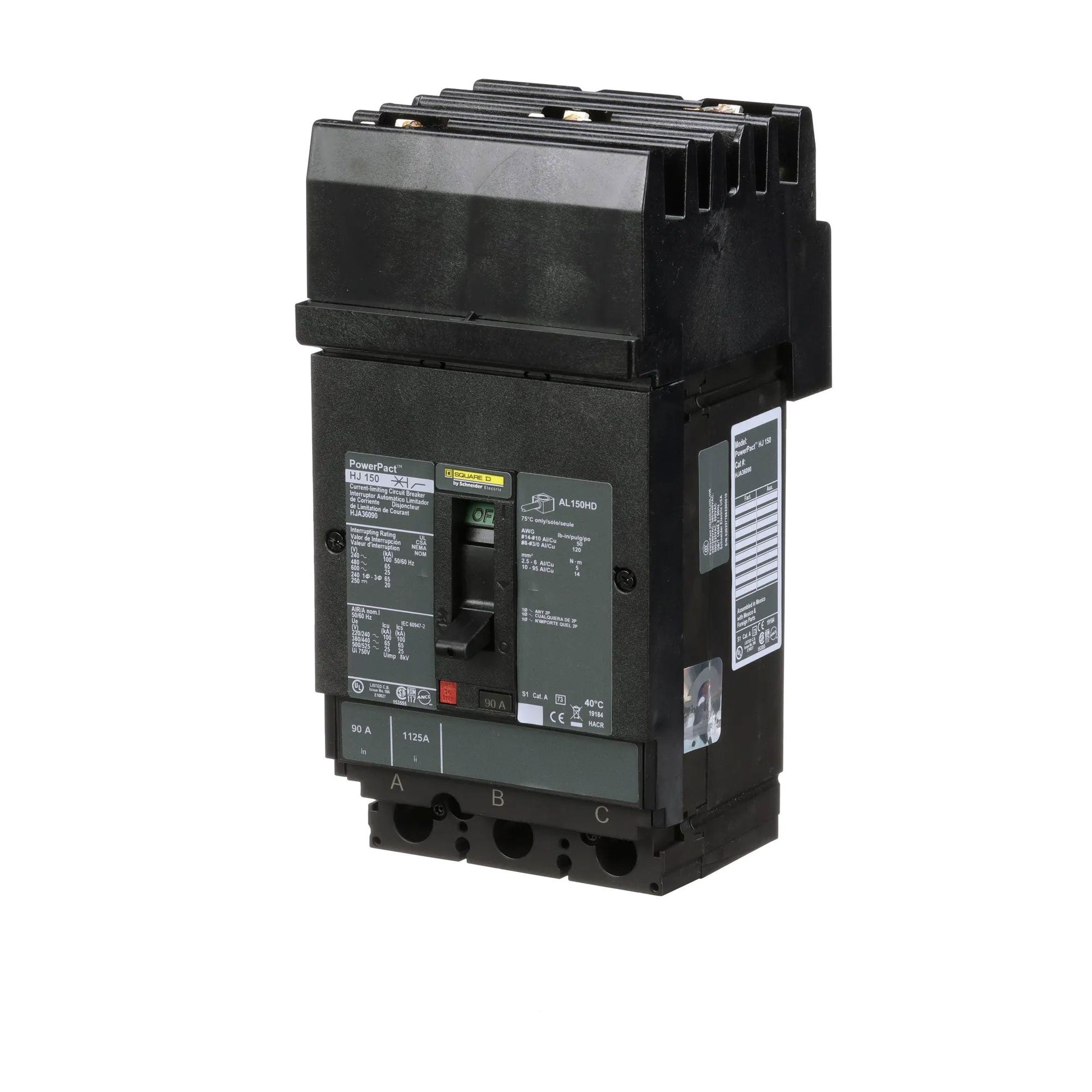

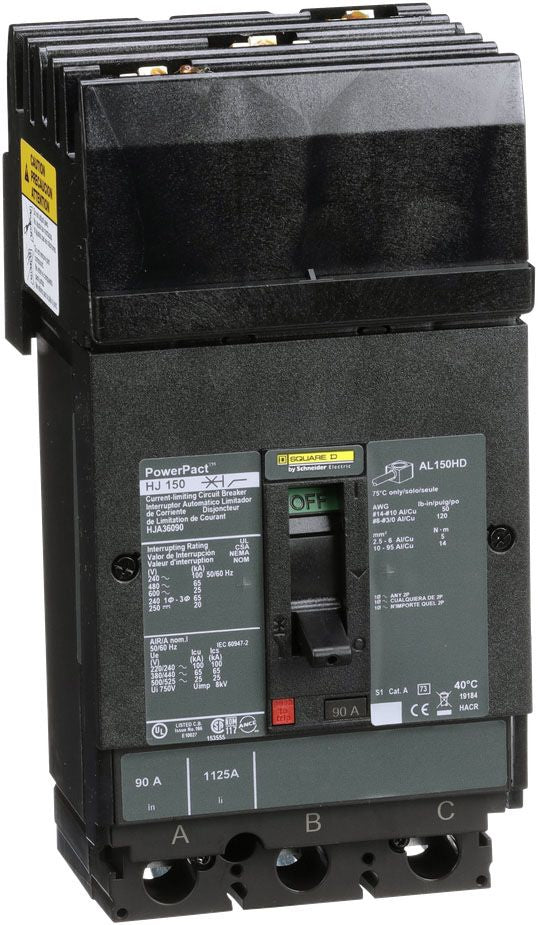

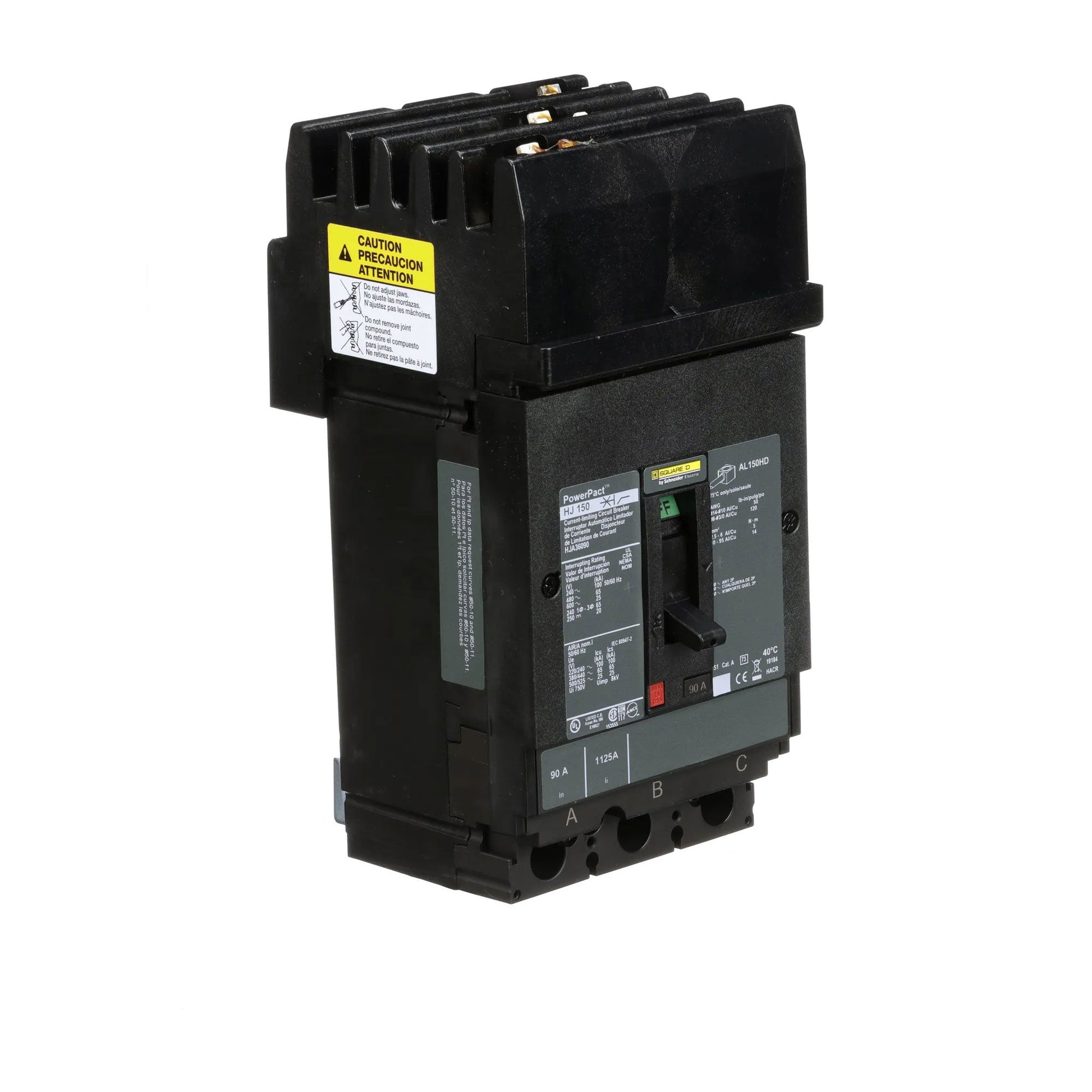

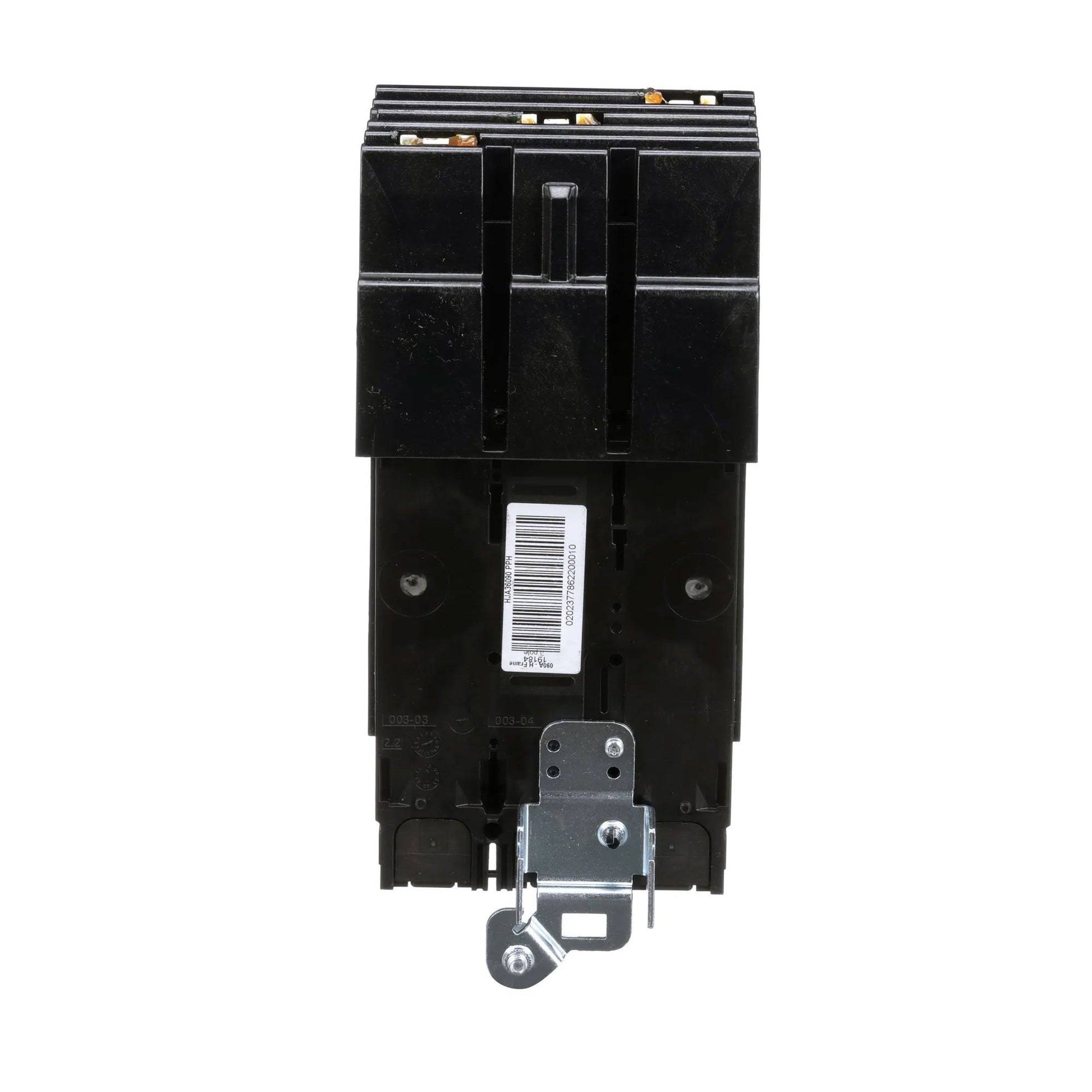

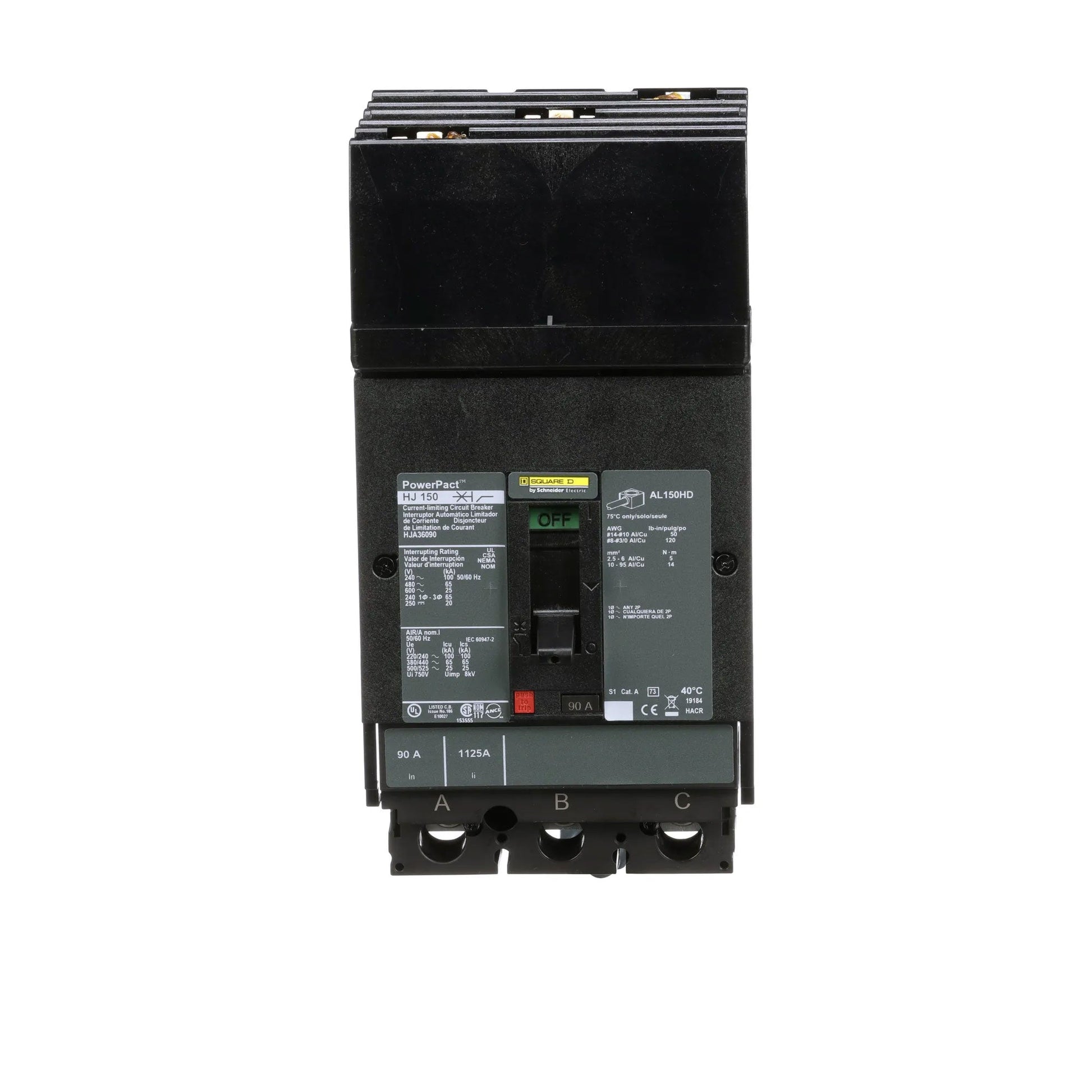

Square D HJA36090 Molded Case Circuit Breaker | 600V 90A 3P 65kA@480V I-Line Plug-In Powerpact HJA

Product Description:
The Square D HJA36090 is a Powerpact HJA series molded case circuit breaker designed for robust electrical protection. It is a 3-pole, 90 amp breaker rated for 600 volts with a 65kA interrupting capacity at 480V. This unit features thermal magnetic protection and utilizes an I-Line style plug-in connection for easy installation.

Key Features:
✔ Part Number: HJA36090
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HJA
✔ Voltage: 600
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901507246
✔ GTIN: 00785901507246
✔ Country of Origin: Mexico

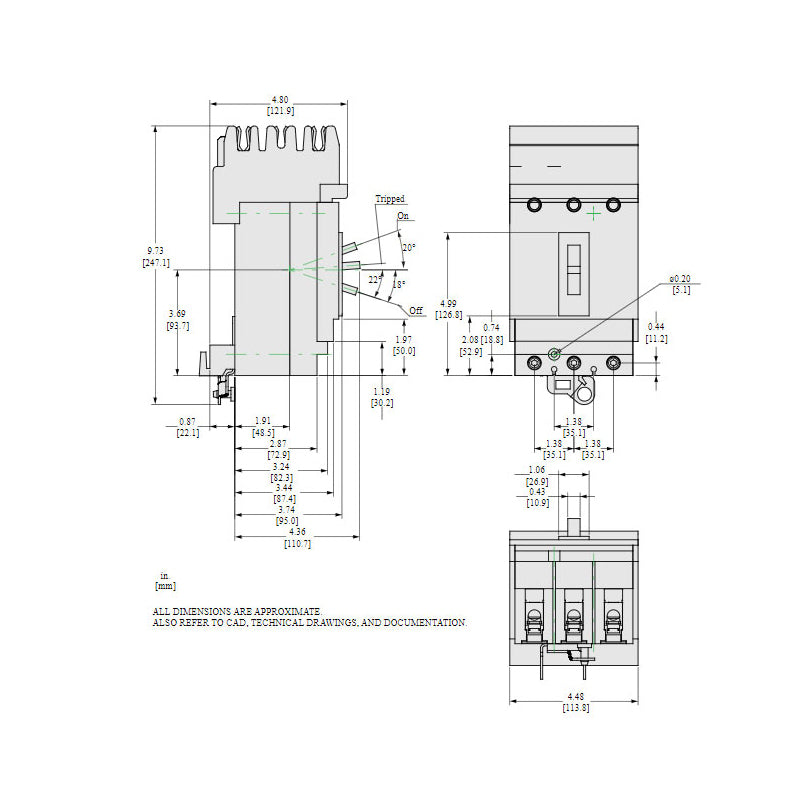

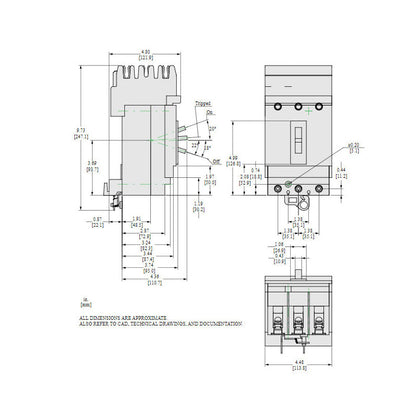

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 2.51 lb
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
