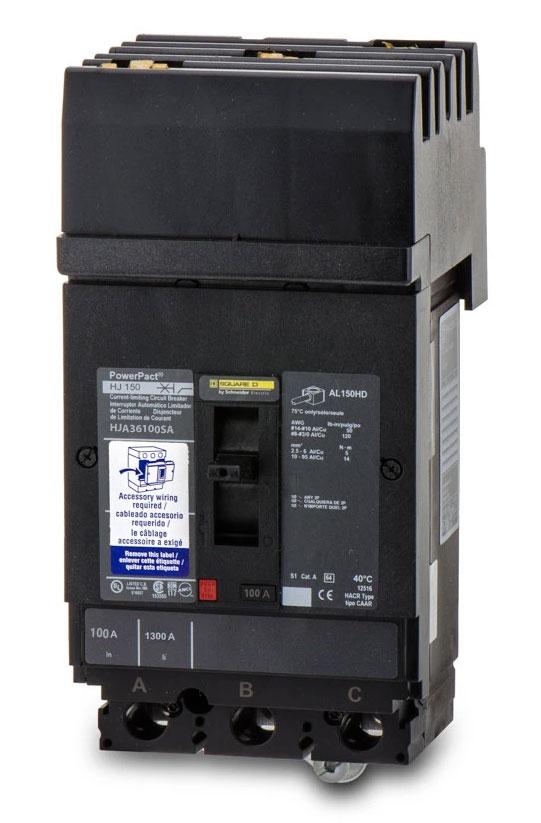

Square D HJA36100SA Circuit Breaker | 600V 100A 3P 65kA@480V I-Line Plug-In Powerpact

Product Description:
The Square D HJA36100SA is a Molded Case Circuit Breaker from the Powerpact HJA family. It is a 3-pole, 100 amp breaker rated for 600 Volts with an AIC rating of 65kA@480V. This unit features an I-Line Style Plug-In connection and Thermal Magnetic protection. It is complete with a 120Vac shunt trip.

Key Features:
✔ Part Number: HJA36100SA
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HJA
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: H Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901428473
✔ GTIN: 00785901428473
✔ Country of Origin: United States
✔ Dimensions: Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 2.72
✔ Certification: Ul Listed
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
