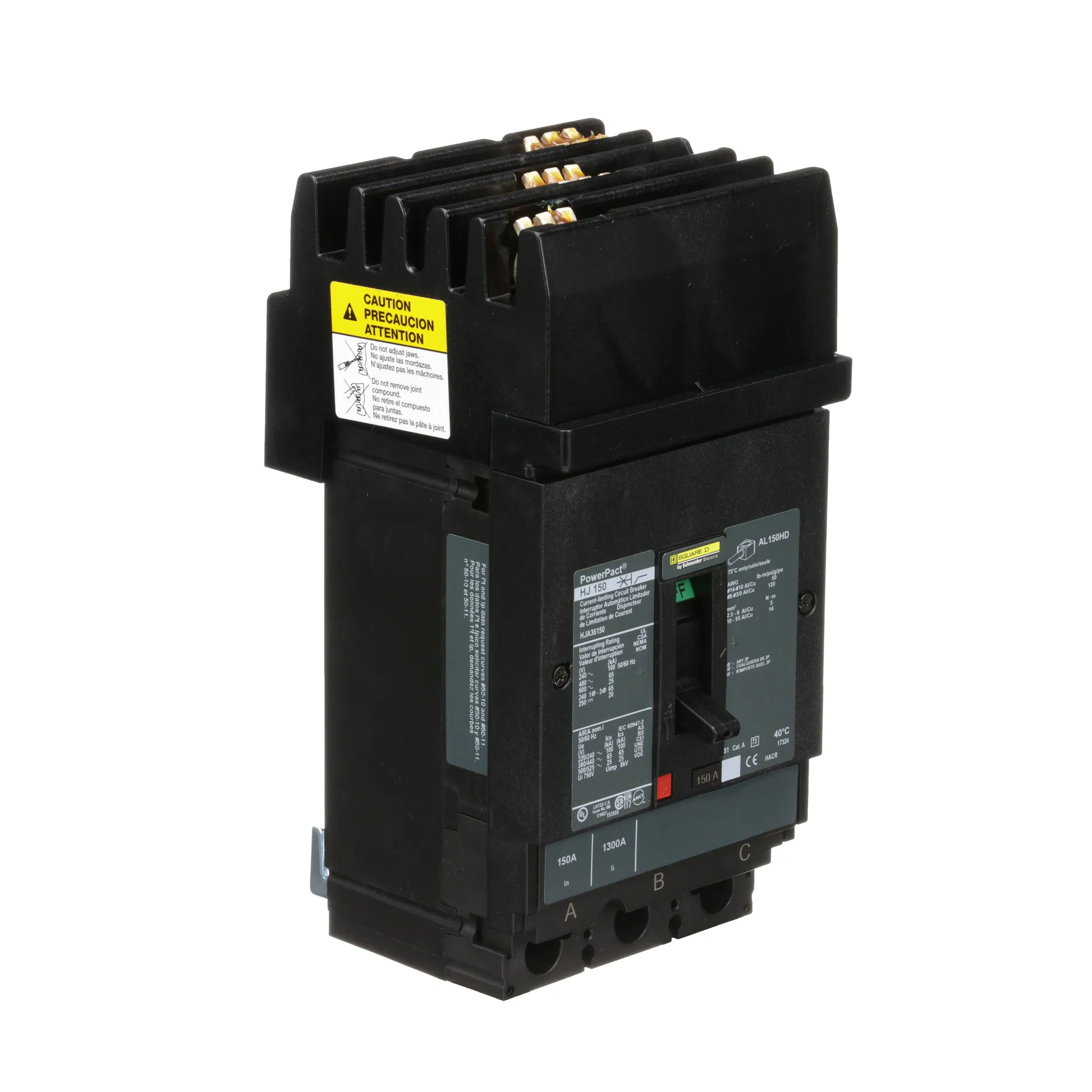

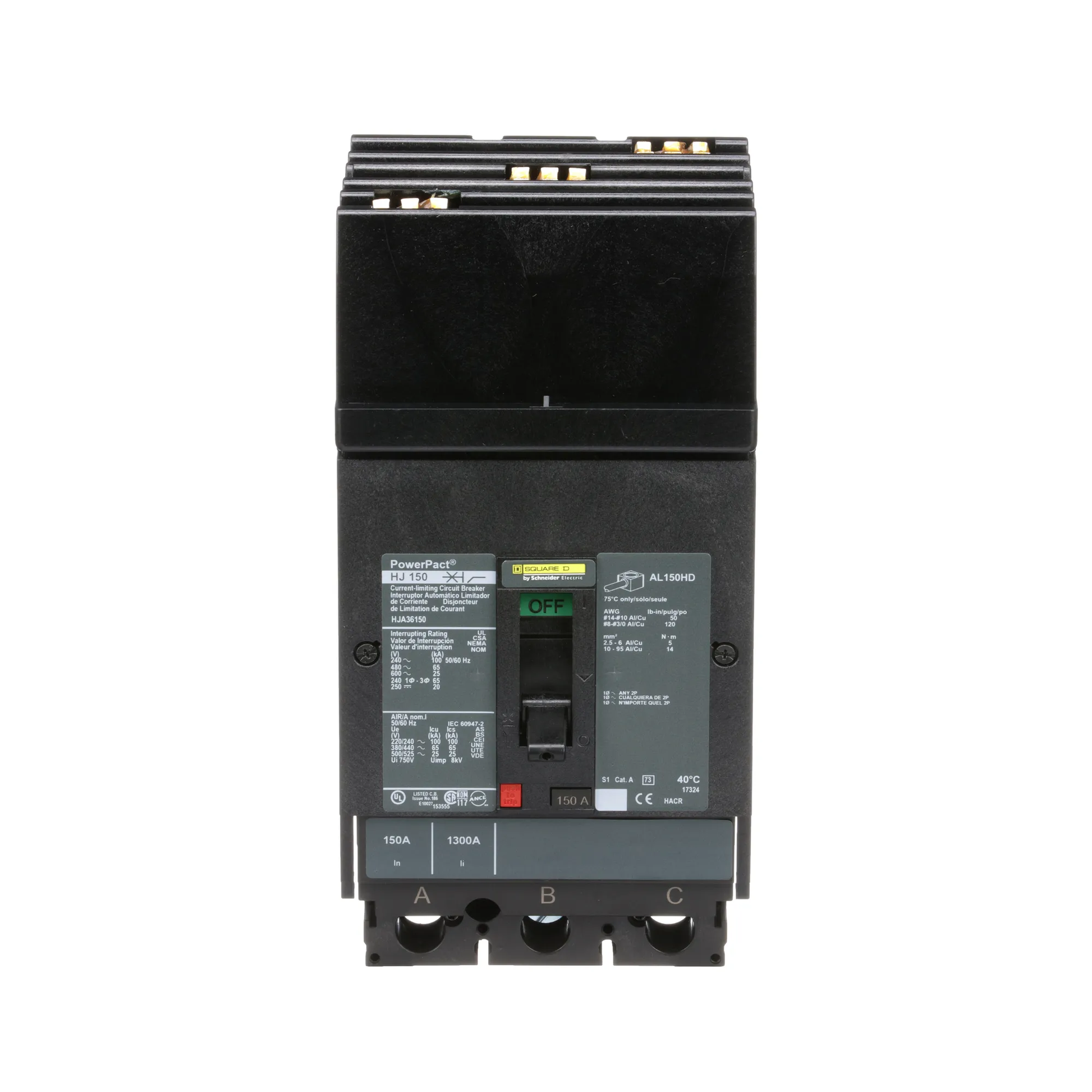

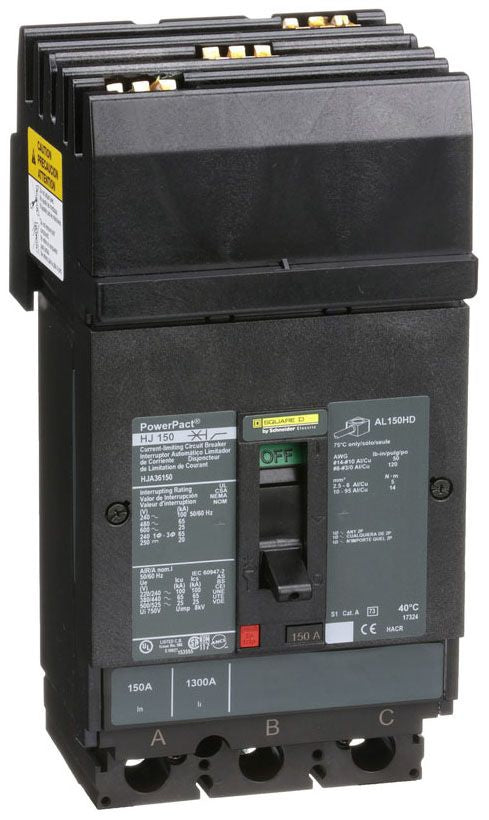

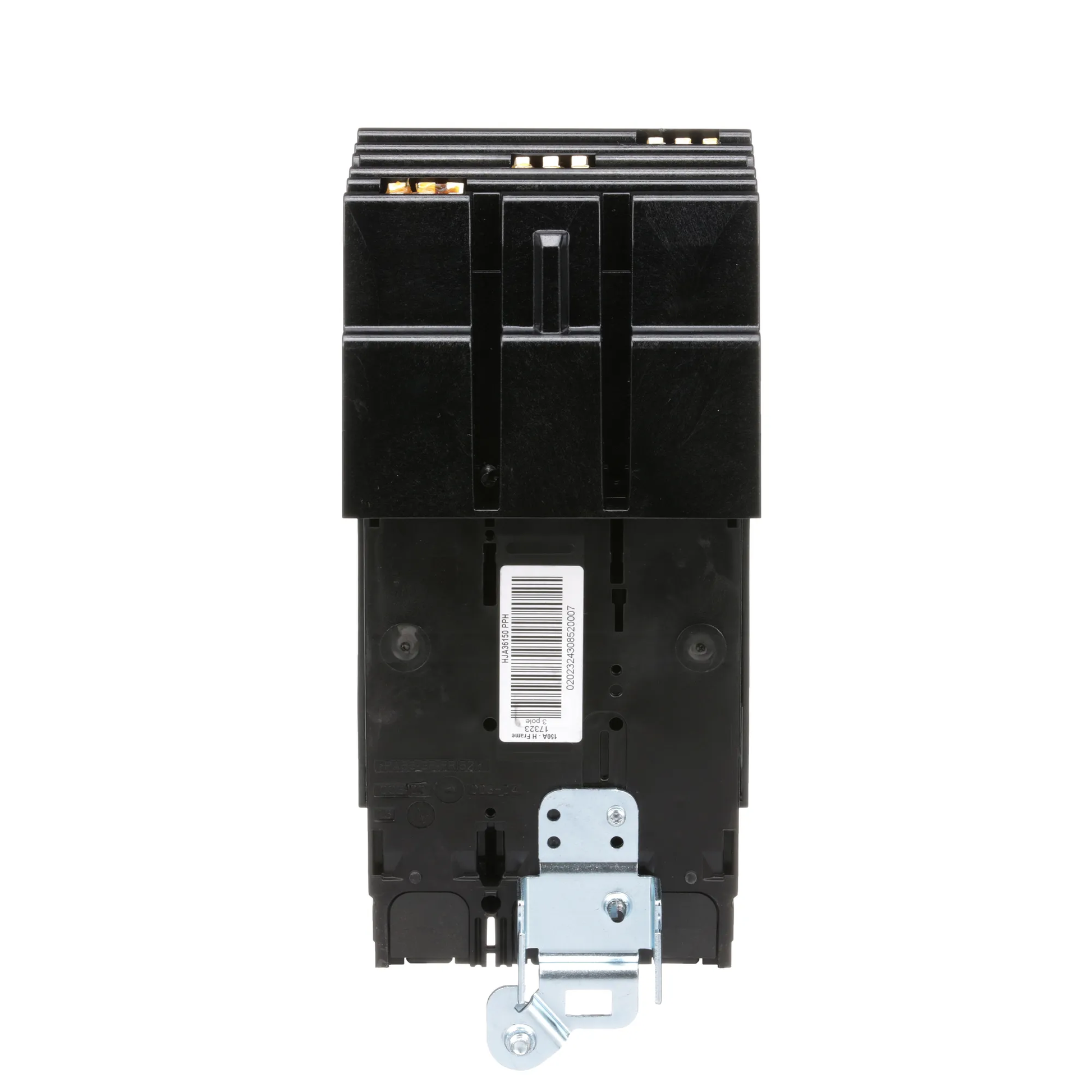

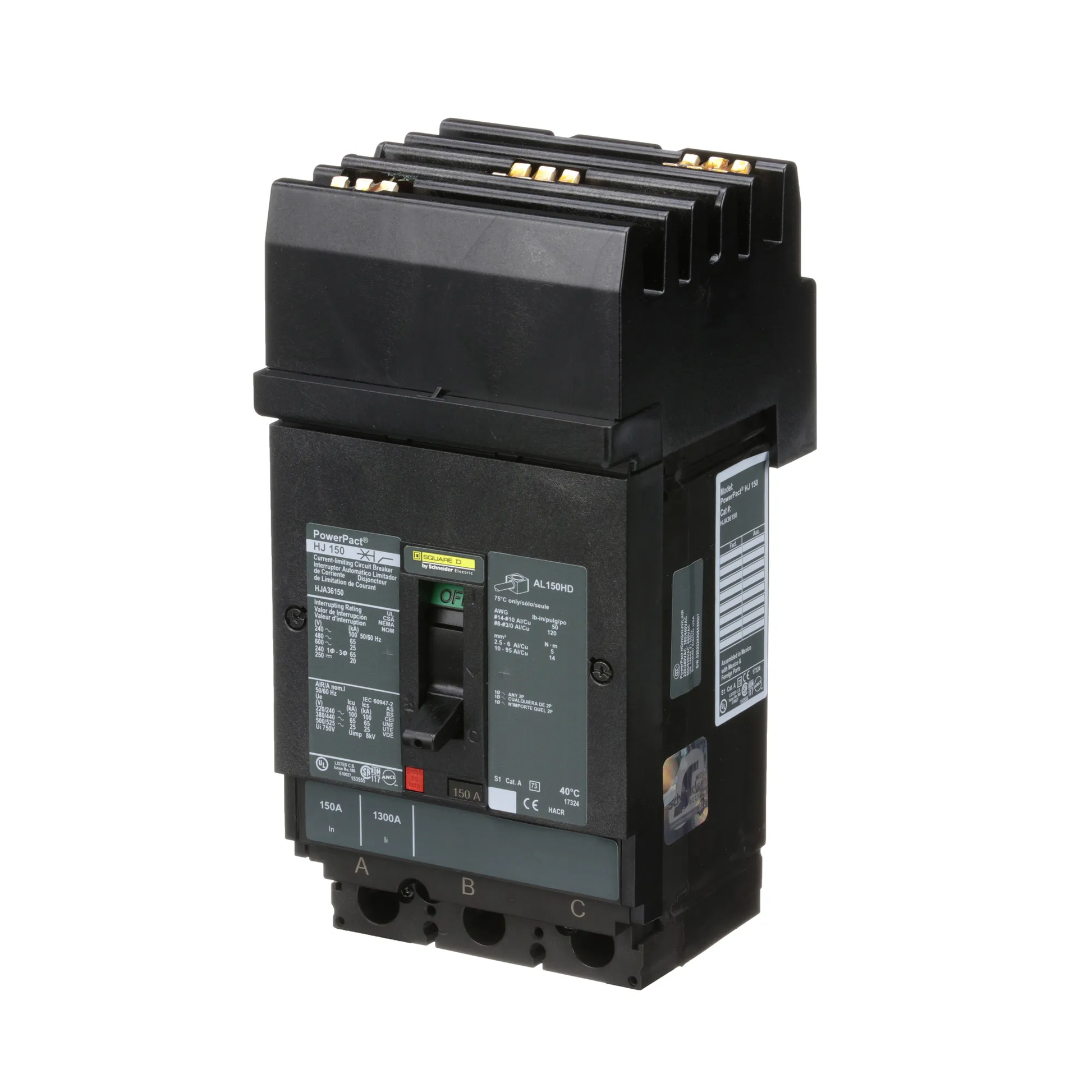

Square D HJA36150 Circuit Breaker | 600V 150A 3P 65kA@480V I-Line Style Plug-In Powerpact
Square D HJA36150 Circuit Breaker | 600V 150A 3P 65kA@480V I-Line Style Plug-In Powerpact
Price:
Sale
Sold out
Regular price
$1,172.84 USD
Regular price
$5,432.00 USD
Sale price
$1,172.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
49 in stock
Couldn't load pickup availability
Product Description:
The Square D HJA36150 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 150A rating and a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: HJA36150
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HJA
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ Wire Size: Min. 14 AWG (Cu/Al), Max. 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901651543
✔ GTIN: 00785901651543
✔ Country of Origin: Mexico

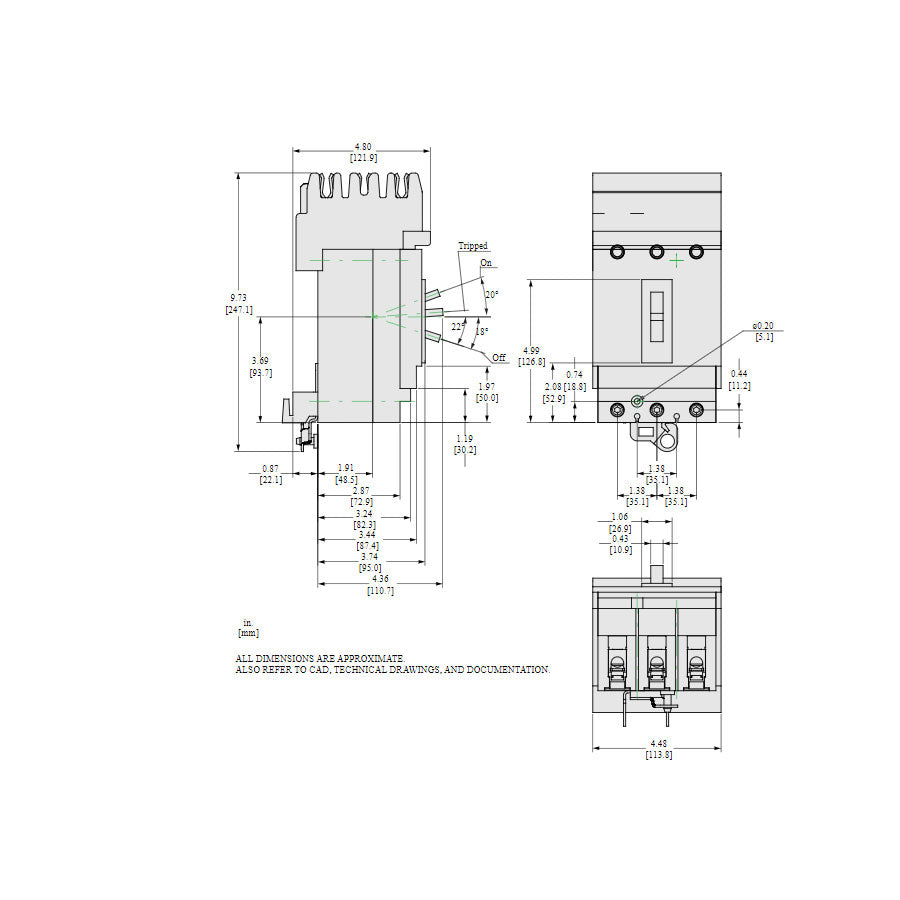

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 2.76 lb
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
