Cutler Hammer HJD3250 Circuit Breaker | Series C HJD 600V 250A
Cutler Hammer HJD3250 Circuit Breaker | Series C HJD 600V 250A
Price:
Sale
Sold out
Regular price
$2,273.82 USD
Regular price
$14,124.27 USD
Sale price
$2,273.82 USD
Unit price
per
Shipping calculated at checkout.
Stock:
19 in stock
Couldn't load pickup availability
Product Description:

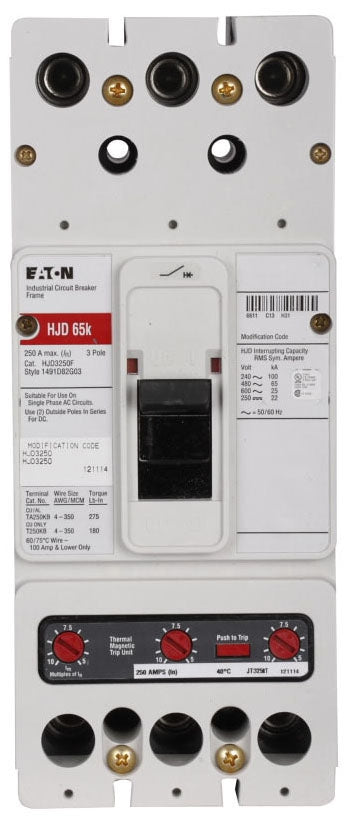

The Cutler Hammer HJD3250 is a Molded Case Circuit Breaker from the Series C family. It features a 3-pole design with a 600V, 250A rating and a 65kA@480V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection. It is CSA Certified, IEC Rated, and UL Listed for safety compliance.
Key Features:
✔ Part Number: HJD3250
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: HJD
✔ Voltage: 600V
✔ Amperage: 250A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/J
✔ MCM Size: Min. Wire Size 4 AWG, Max. Wire Size 350 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ Certification: CSA Certified, IEC Rated, UL Listed
✔ UPC:
