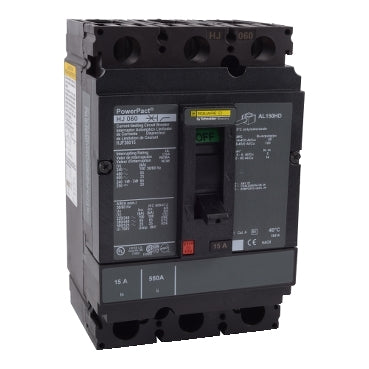

Square D HJF36150 Circuit Breaker | 600V 150A 3P 65kA@480V Bolt-On Powerpact

Product Description:
The Square D HJF36150 is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 150A amperage rating with a 65kA@480V AIC rating. This breaker uses a bolt-on connection and offers thermal magnetic protection. It does not include lugs, which must be ordered separately.

Key Features:
✔ Part Number: HJF36150
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HJF
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Busbar Connection
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901697534
✔ GTIN: 00785901697534
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.81
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
