Square D HJL26015 Circuit Breaker | 600V 15A 2P 65kA@480V Feed-Thru Powerpact
Square D HJL26015 Circuit Breaker | 600V 15A 2P 65kA@480V Feed-Thru Powerpact
Price:
Sale
Sold out
Regular price
$440.96 USD
Regular price
$1,559.00 USD
Sale price
$440.96 USD
Unit price
per
Shipping calculated at checkout.
Stock:
12 in stock
Couldn't load pickup availability
Product Description:

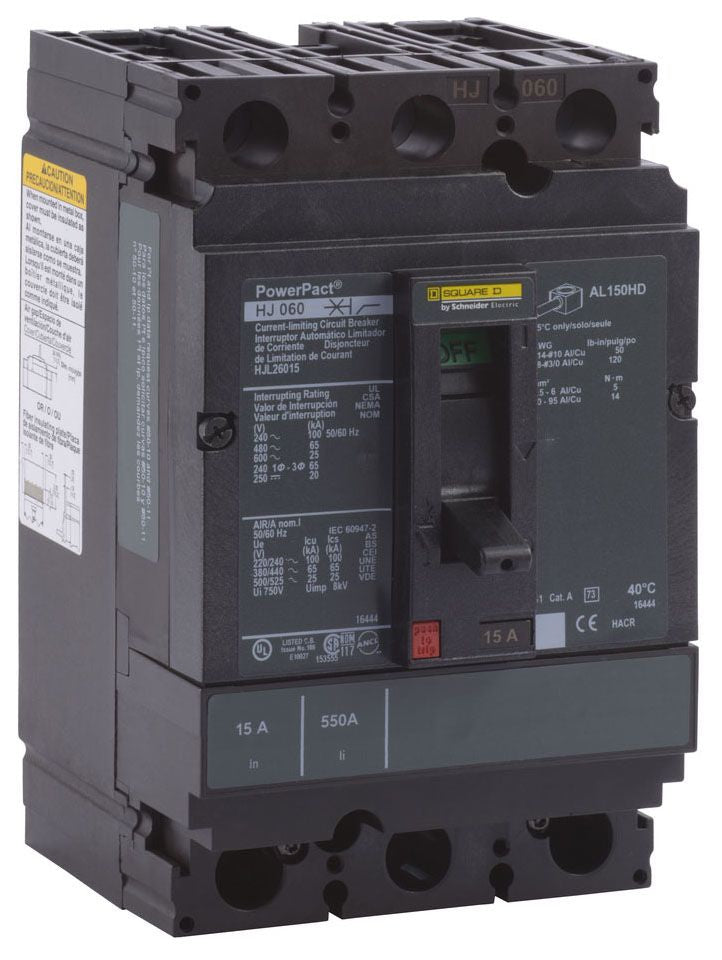

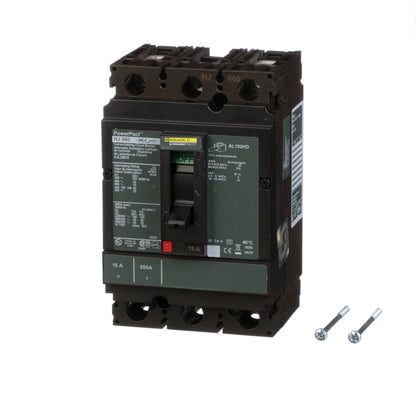

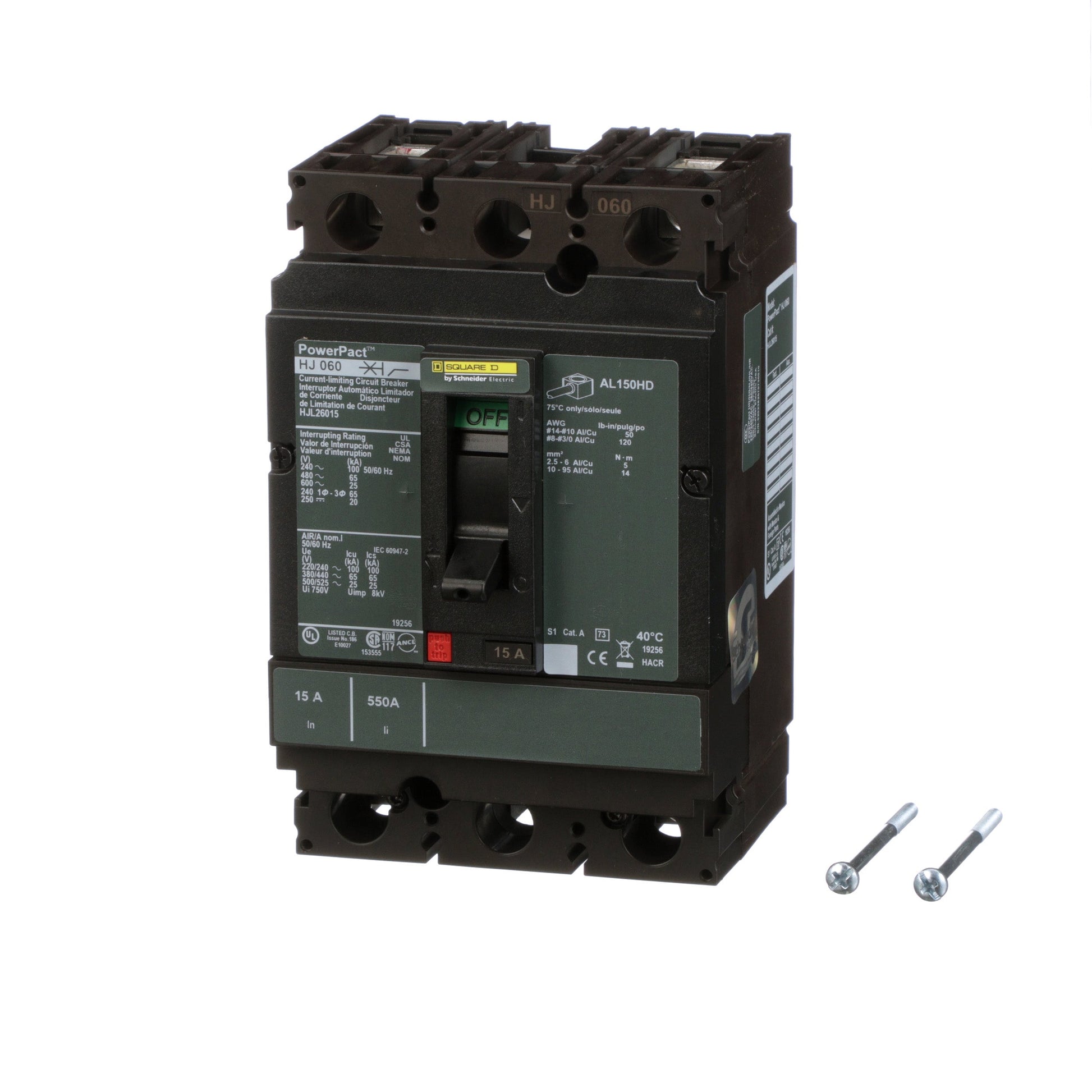

The Square D HJL26015 is a Molded Case Circuit Breaker from the Powerpact family. It is a 2-pole, 600 Volt, 15 amp breaker with an AIC rating of 65kA@480V. This model features Feed-Thru connections and provides Thermal Magnetic protection for reliable circuit interruption.
Key Features:
✔ Part Number: HJL26015
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HJL
✔ Voltage: 600
✔ Amperage: 15
✔ Poles: 2
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901839439
✔ GTIN: 00785901839439
✔ Country of Origin: Mexico
✔ Dimensions: 2.74 in x 6.4 in
✔ Weight: 1.8
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
The Square D HJL26015 is a Molded Case Circuit Breaker from the Powerpact family. It is a 2-pole, 600 Volt, 15 amp breaker with an AIC rating of 65kA@480V. This model features Feed-Thru connections and provides Thermal Magnetic protection for reliable circuit interruption.
