Square D HJL36015 Circuit Breaker | 600V 15A 3P 65kA@480V Feed-Thru Powerpact
Square D HJL36015 Circuit Breaker | 600V 15A 3P 65kA@480V Feed-Thru Powerpact
Price:
Sale
Sold out
Regular price
$750.57 USD
Regular price
$1,949.00 USD
Sale price
$750.57 USD
Unit price
per
Shipping calculated at checkout.
Stock:
4 in stock
Limited availability. Call (855) 875-5050 to check stock. We'll confirm stock immediately after your order.
Limited availability. Call (855) 875-5050 to check stock. We'll confirm stock immediately after your order.
Couldn't load pickup availability
Product Description:

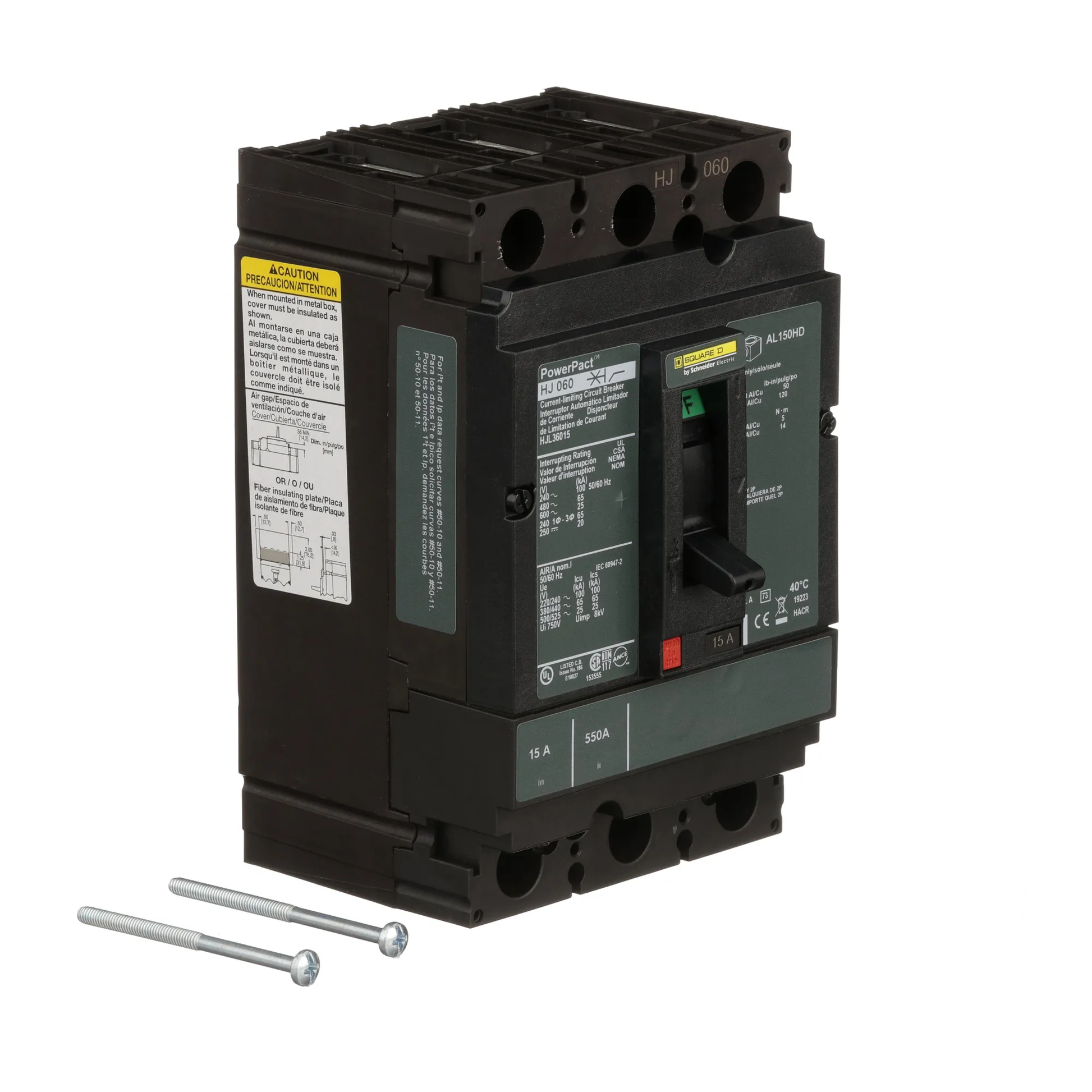

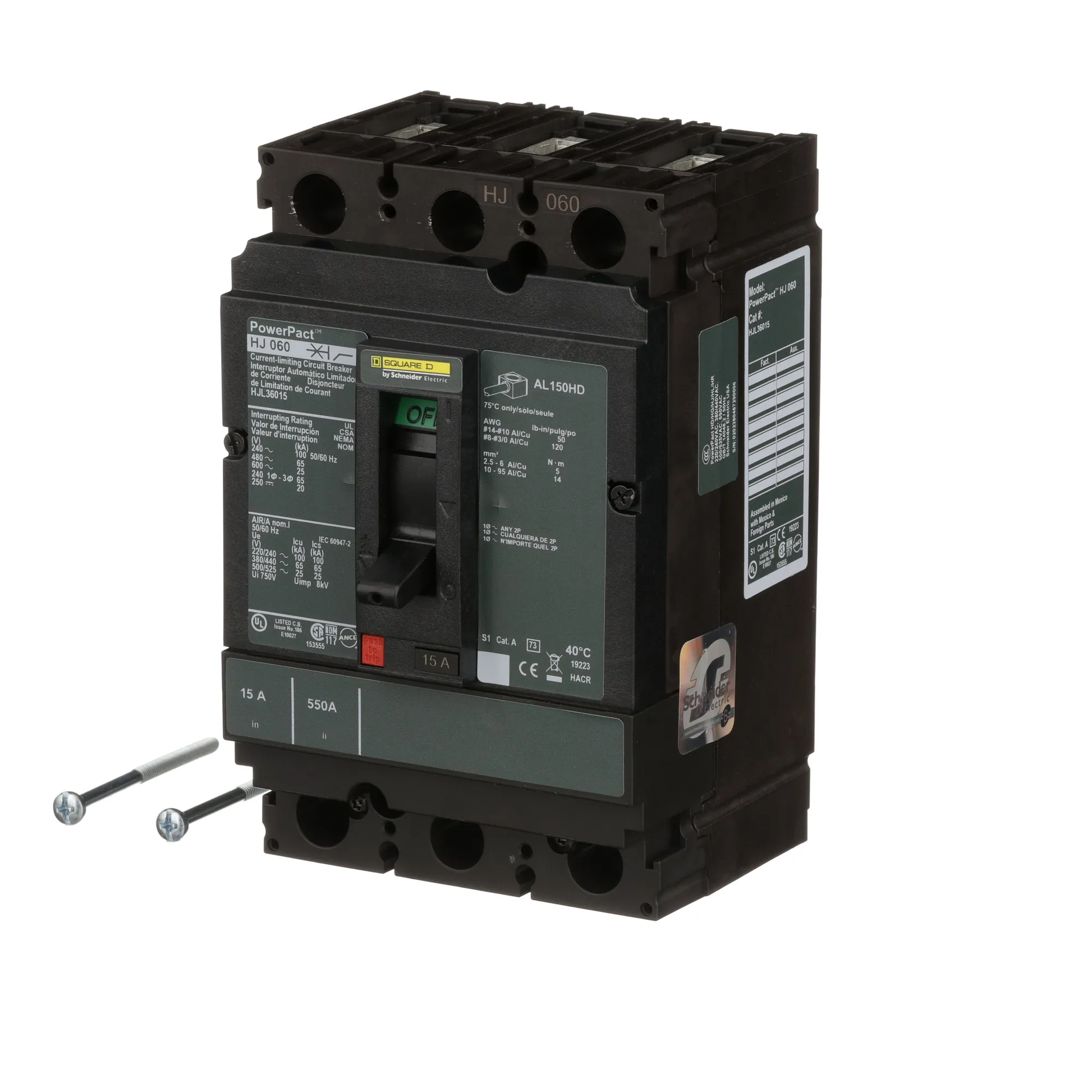

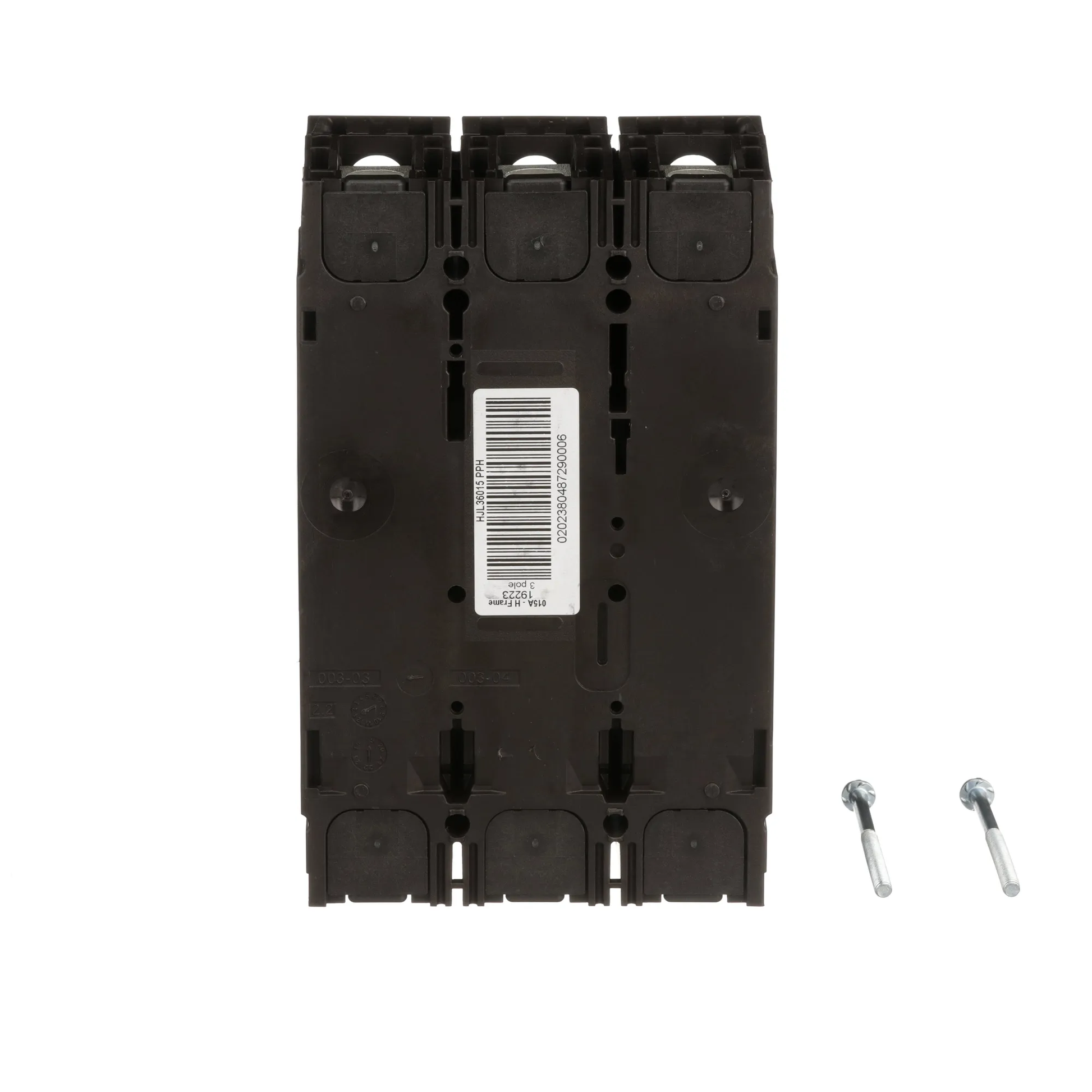

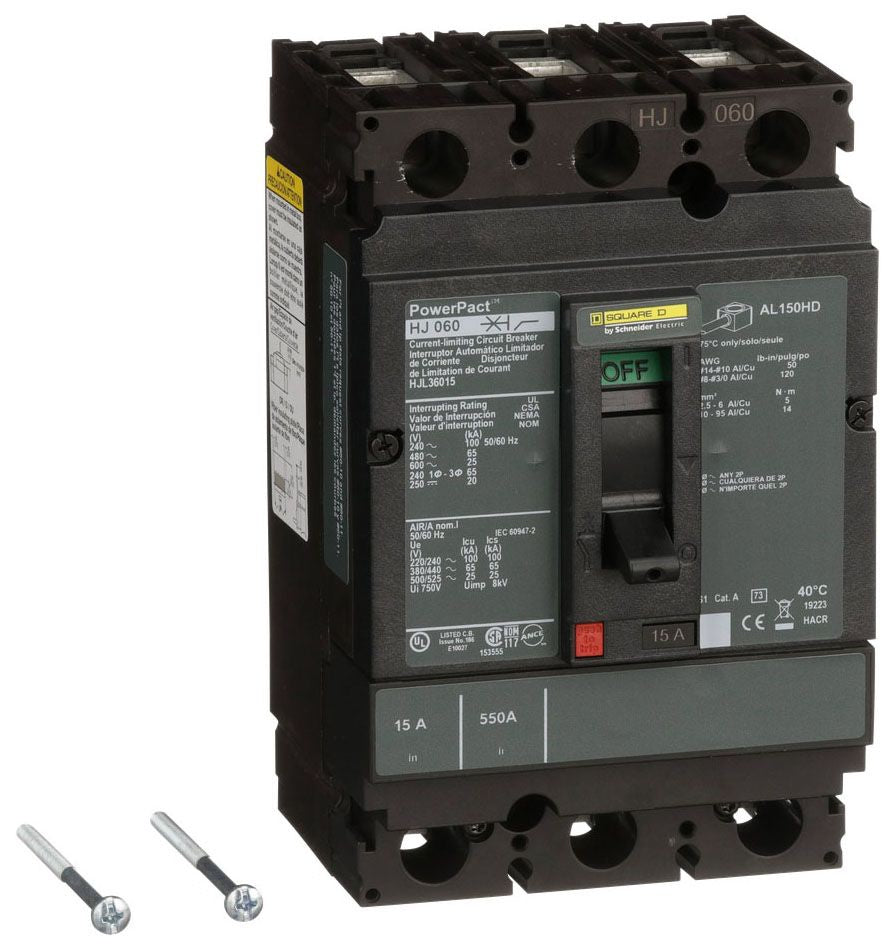

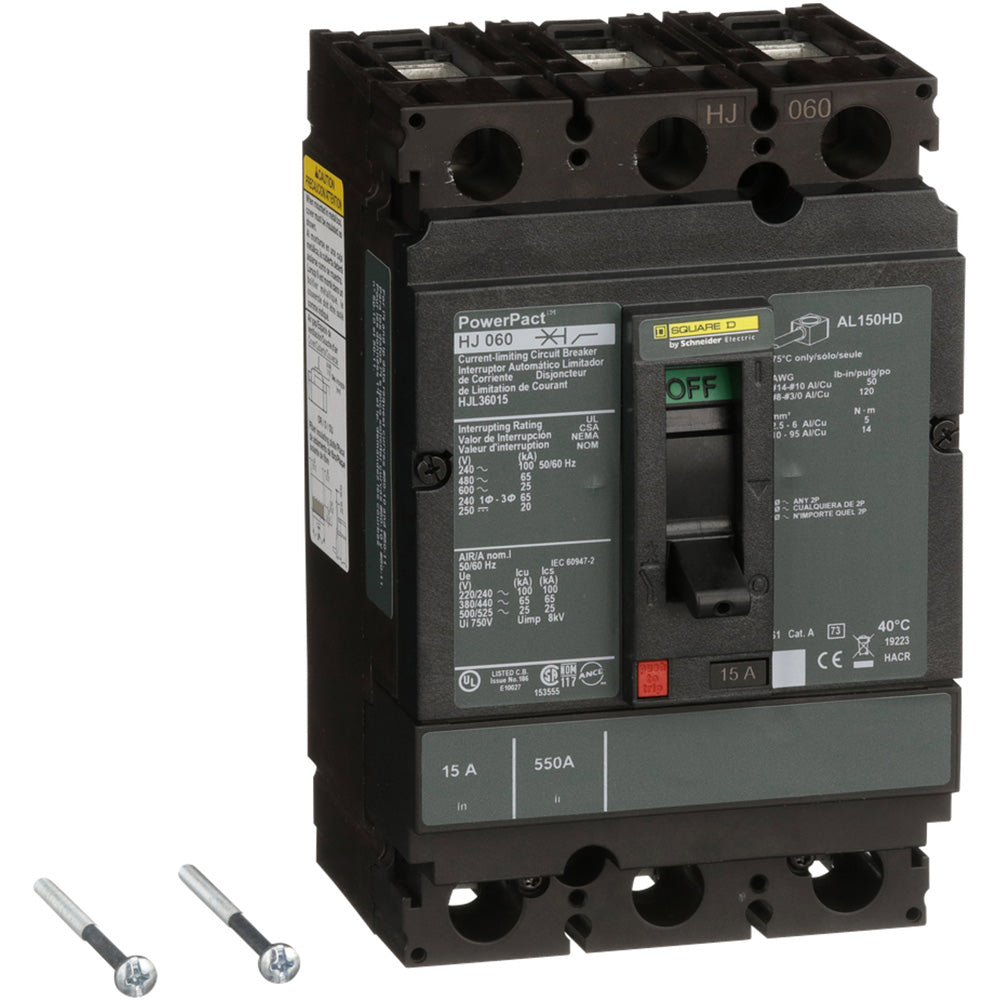

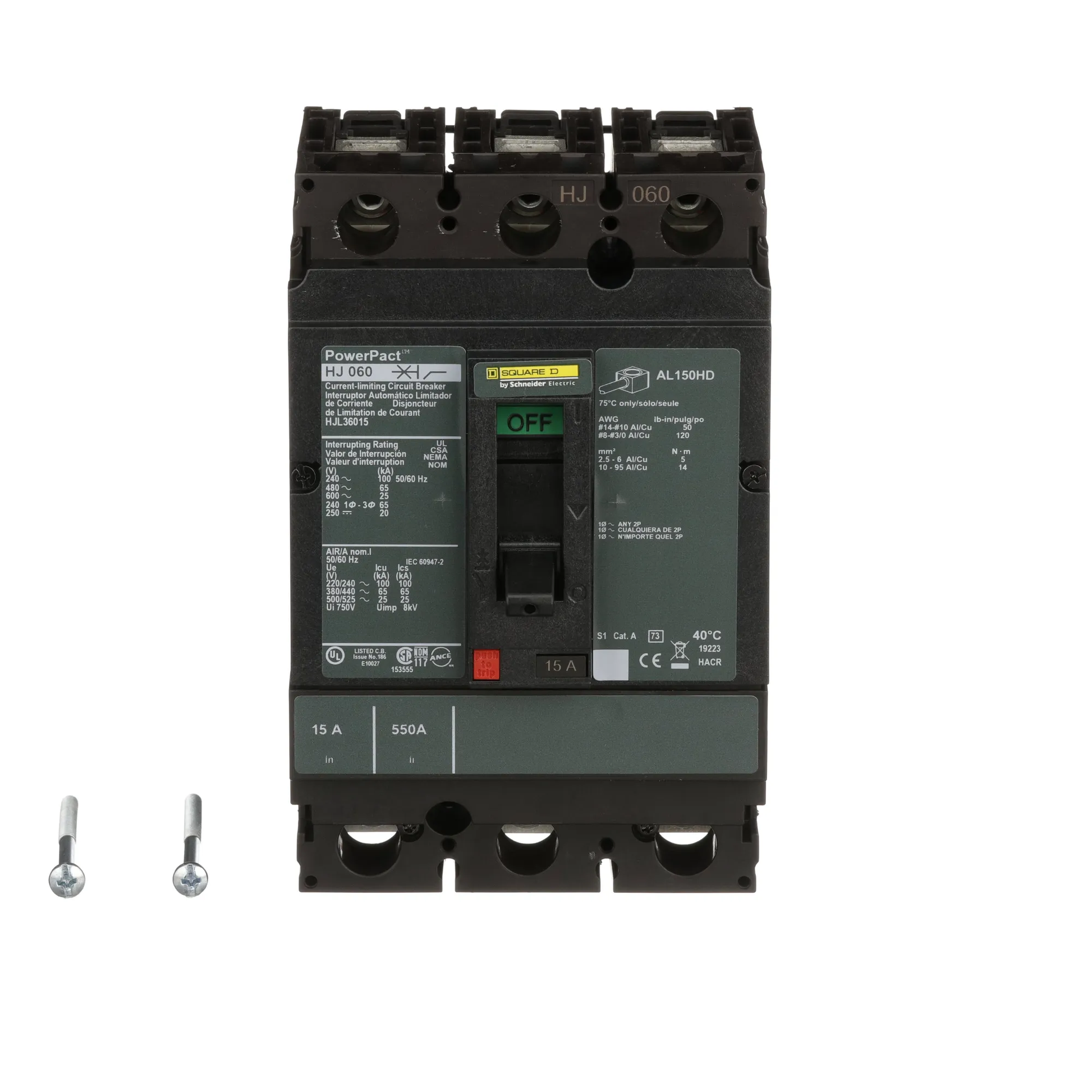

The Square D HJL36015 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 600 Volt, 15 amp breaker with an AIC rating of 65kA@480V. This circuit breaker uses a Feed-Thru connection and provides Thermal Magnetic protection for reliable operation.
Key Features:
✔ Part Number: HJL36015
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HJL
✔ Voltage: 600
✔ Amperage: 15
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901577904
✔ GTIN: 00785901577904
✔ Country of Origin: Mexico

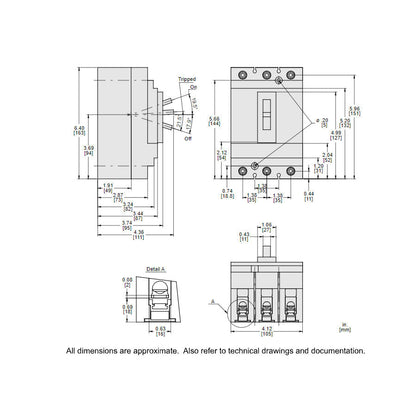

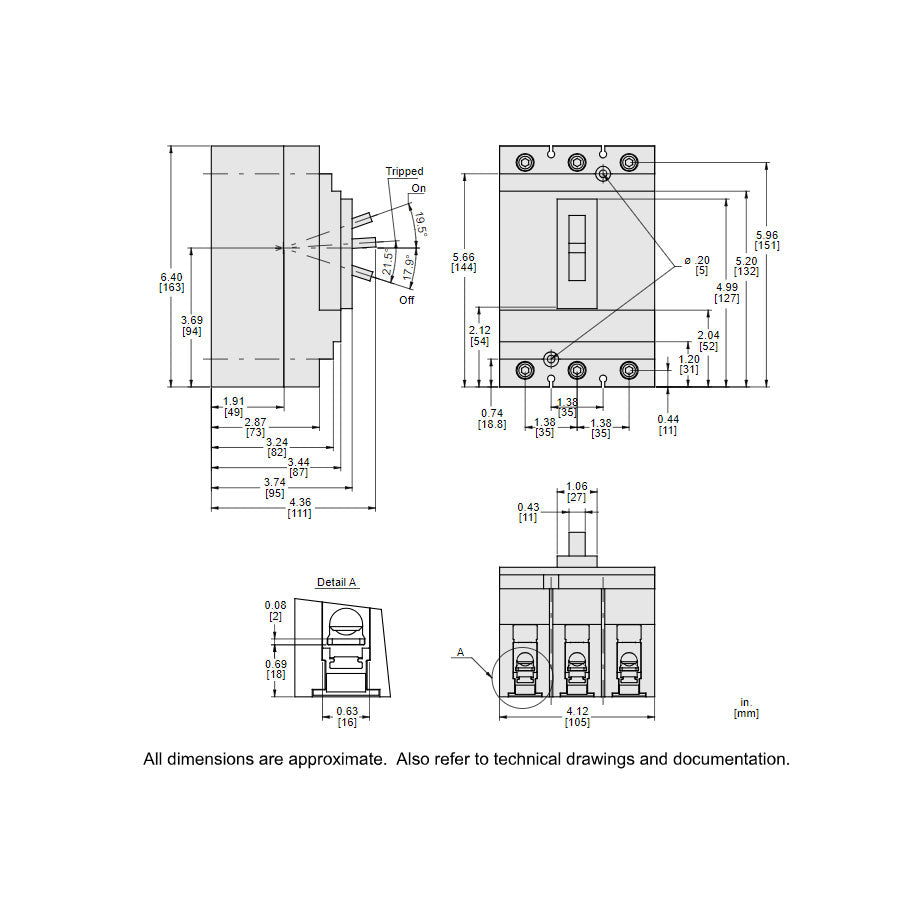

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.84
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
