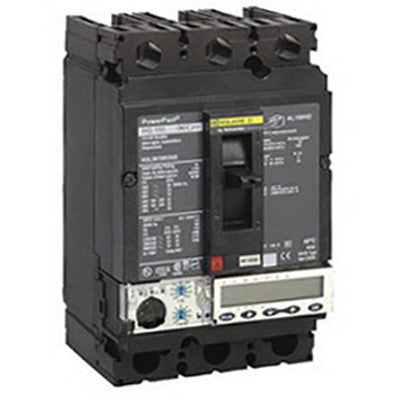

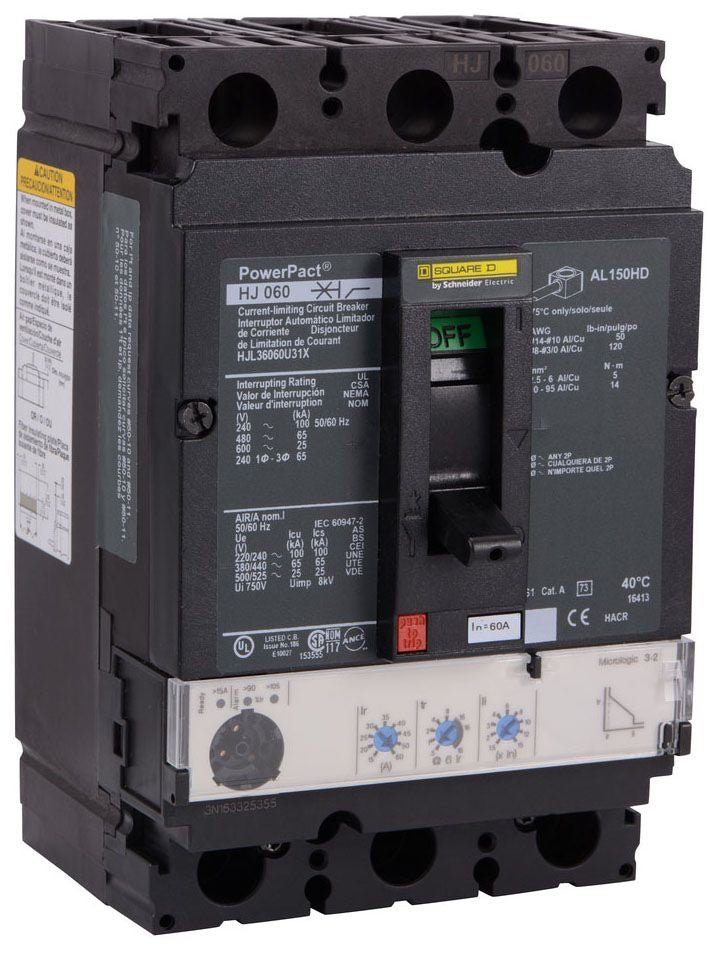

Square D HJL36060U31X Circuit Breaker | 600V 60A 3P 65kA@480V Feed-Thru Powerpact

Product Description:
The Square D HJL36060U31X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole breaker rated for 600 Volts and 60 amps, with an AIC rating of 65kA at 480V. This model features a Feed-Thru connection and solid state protection for reliable performance.

Key Features:
✔ Part Number: HJL36060U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HJL
✔ Voltage: 600
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: H Frame
✔ Protection: Solid State
✔ UPC: 785901722892
✔ GTIN: 00785901722892
✔ Country of Origin: United States
✔ Dimensions: Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 2.63
✔ Certification: CE, UL, CSA, NEMA, NOM, IEC, CCC
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
