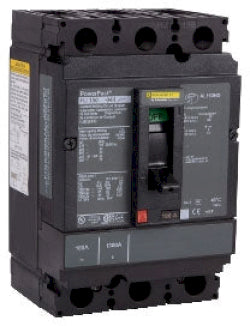

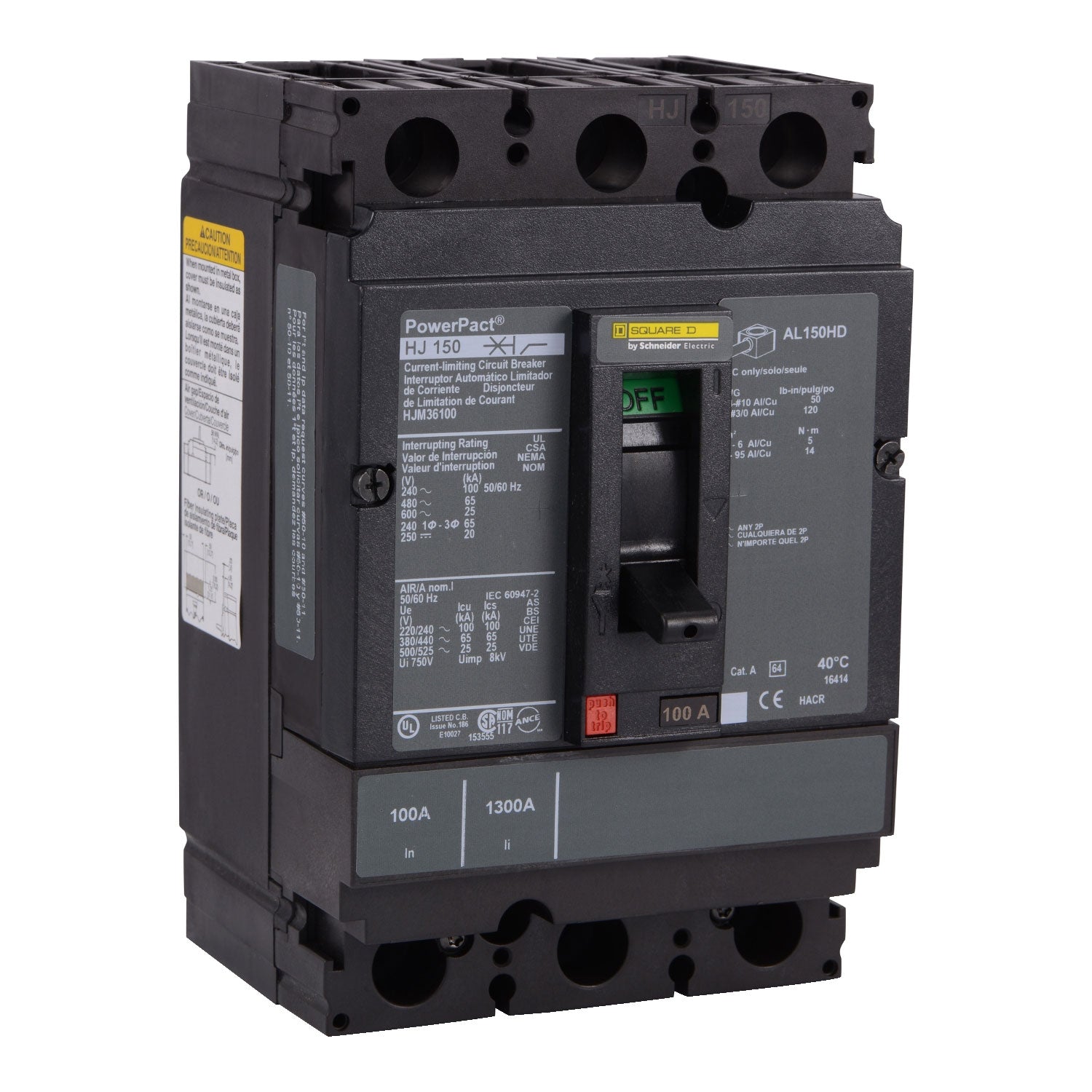

Square D HJM36100 Circuit Breaker | 600V 100A 3P 65kA@480V Bolt-On Powerpact

Product Description:
The Square D HJM36100 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 100A rating and a 65kA@480V AIC rating. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: HJM36100
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HJM
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: H Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901636663
✔ GTIN: 00785901636663
✔ Country of Origin: United States
✔ Dimensions: Depth 3.39 in (86 mm) Width 4.09 in (104 mm) Height 6.42 in (163 mm)
✔ Weight: 2.27
✔ Certification: IEC, CE, UL, CSA, CCC
✔ Wire Size: AWG 14, AWG 3/0 Aluminium/Copper
