Product Description:

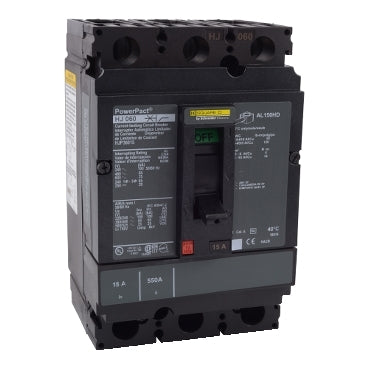

The Square D HJP36090 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 90A rating and a 65kA@480V AIC rating. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: HJP36090
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HJP
✔ Voltage: 600
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: H Frame
✔ Protection: Thermal Magnetic
✔ Dimensions: Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 5
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
