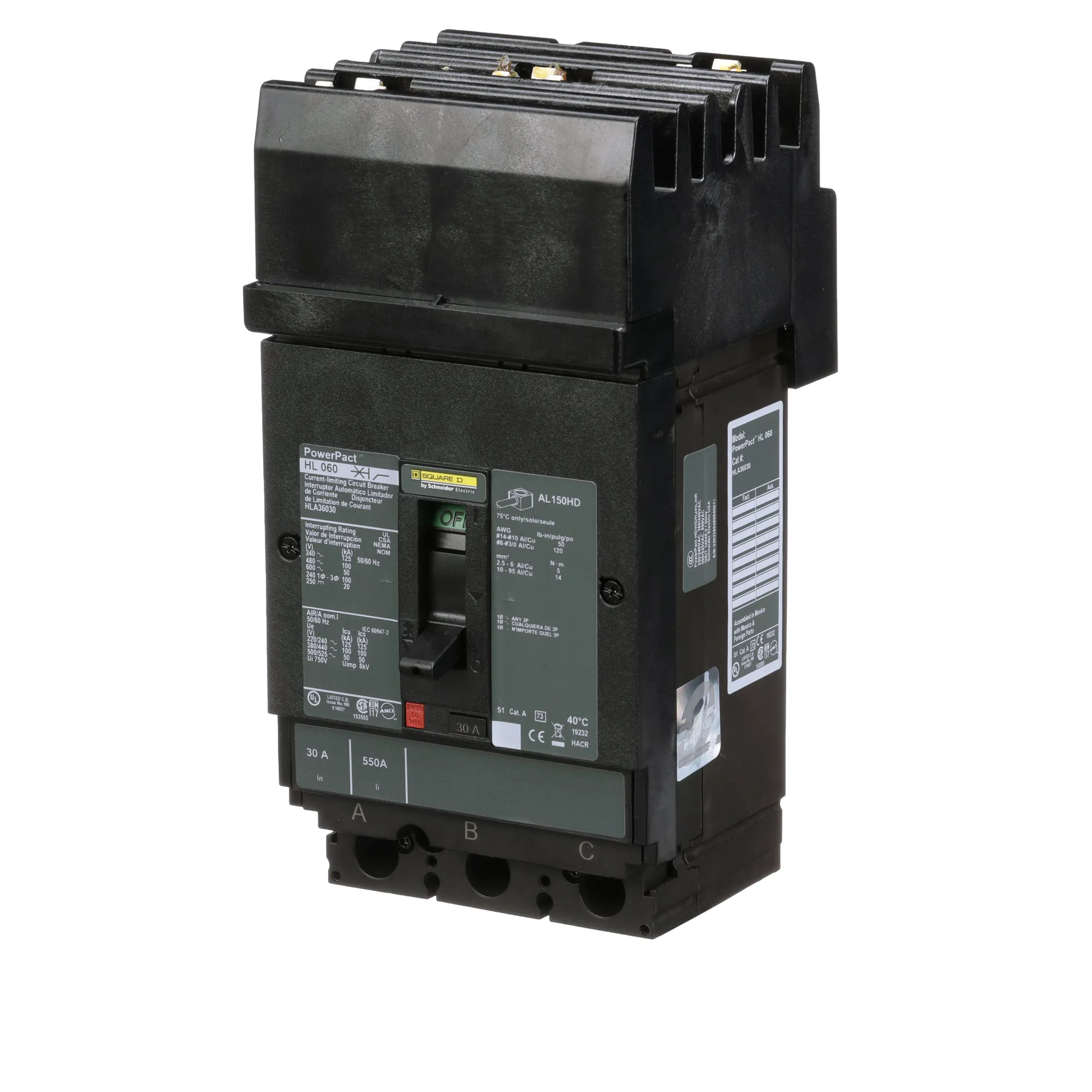

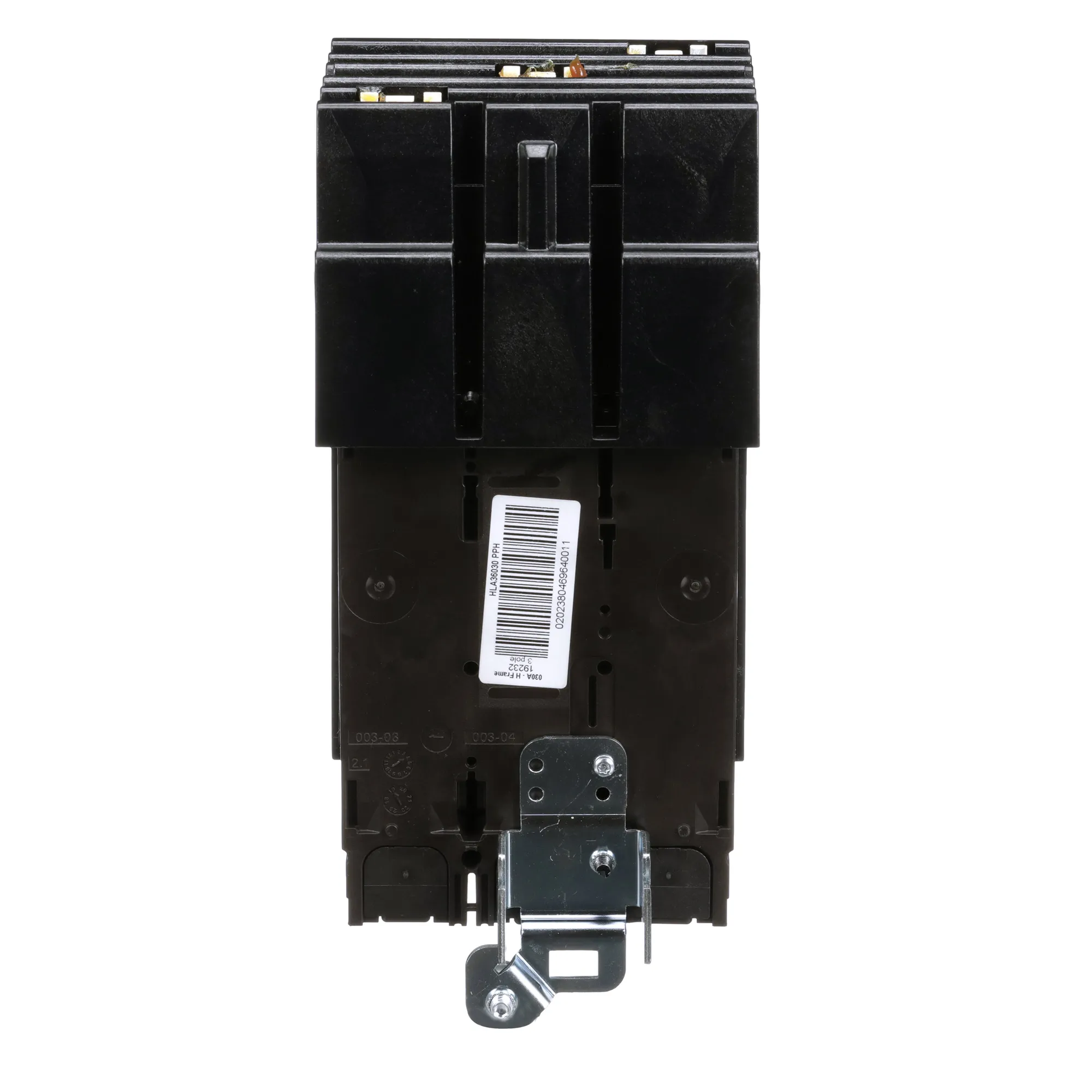

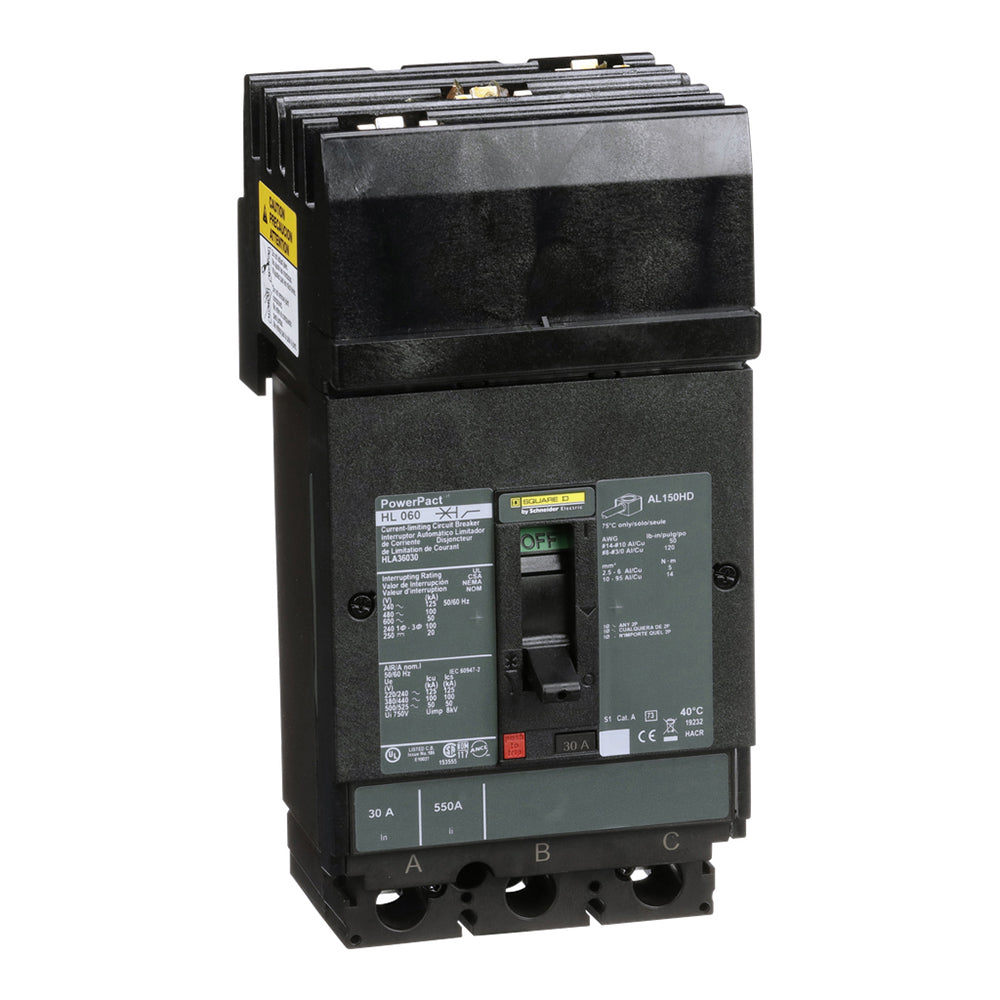

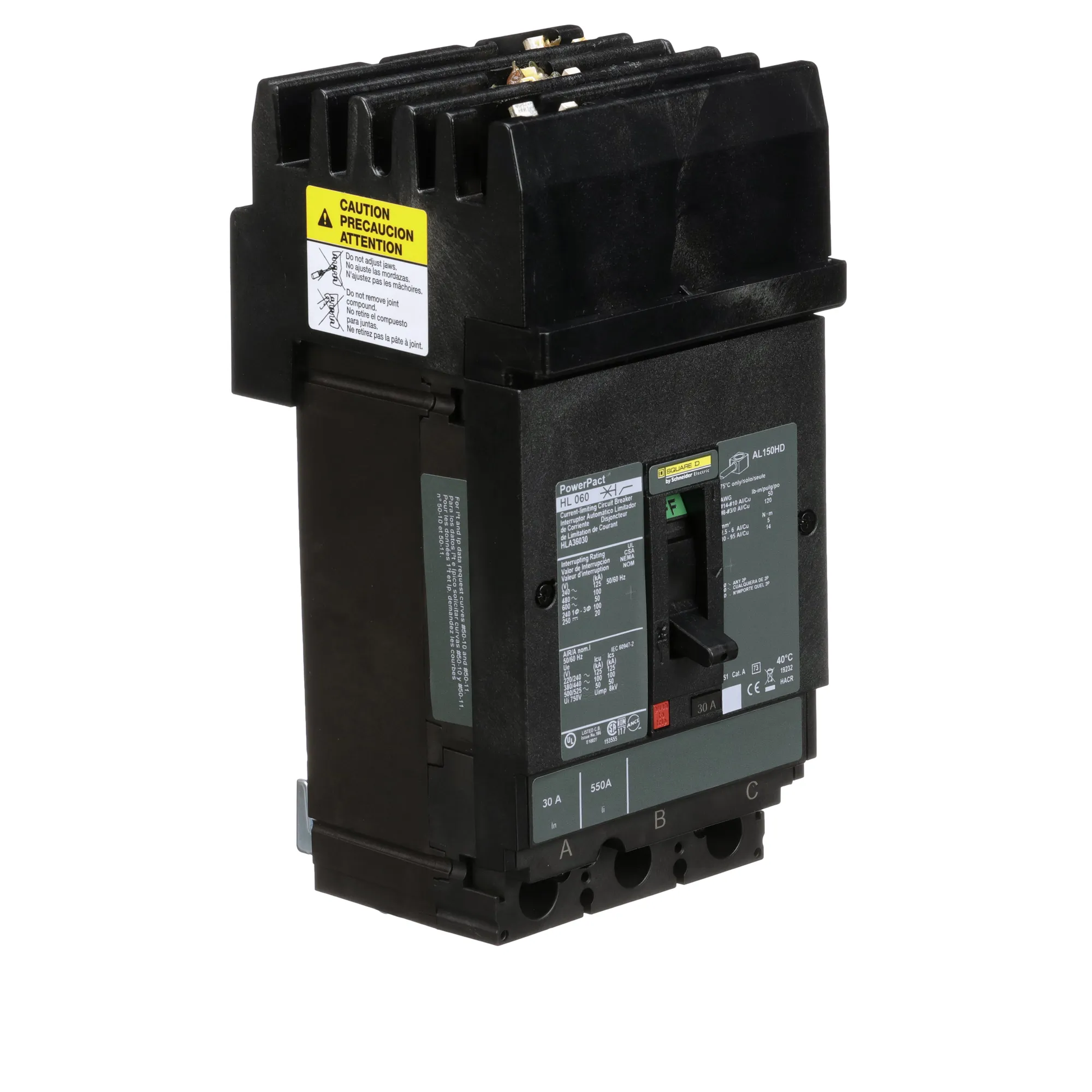

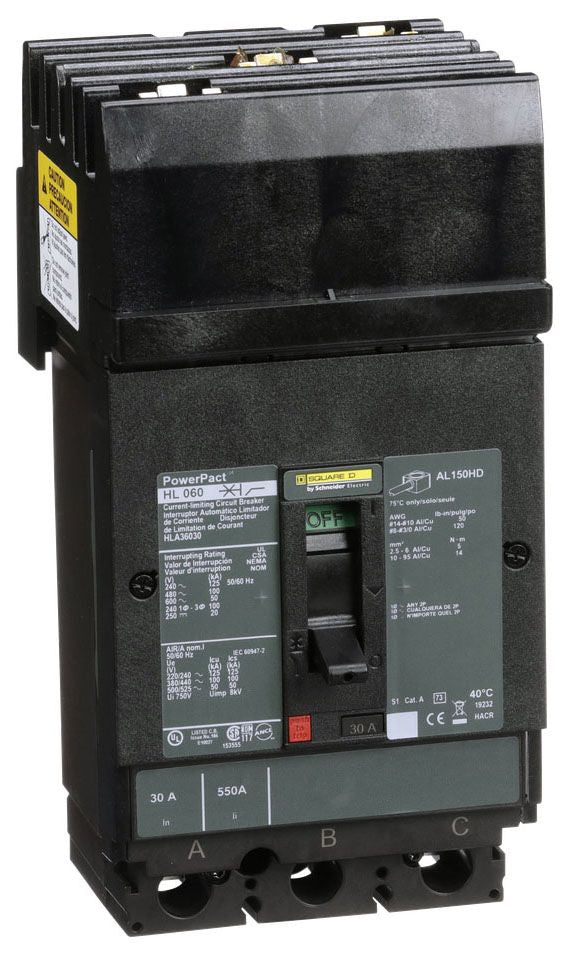

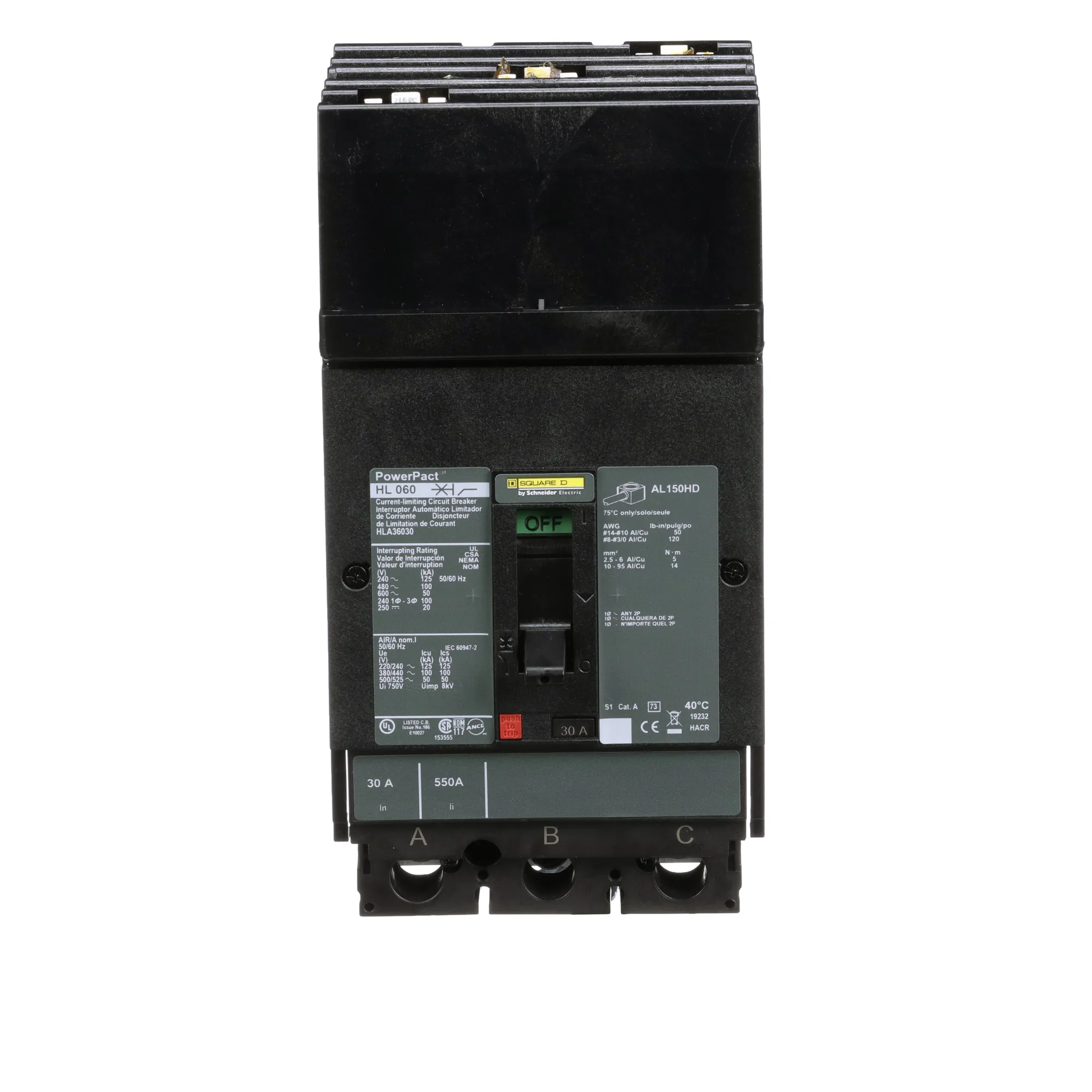

Square D HLA36030 Circuit Breaker | Powerpact HLA 600V 30A

Product Description:
The Square D HLA36030 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 30A rating and a 100kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes Thermal Magnetic protection. It is designed for reliable performance in electrical systems.

Key Features:
✔ Part Number: HLA36030
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HLA
✔ Voltage: 600V
✔ Amperage: 30A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 100kA@480V
✔ Connection: I-Line Style Plug-In
✔ Protection: Thermal Magnetic
✔ Frame Size: H Frame
✔ UPC: 785901507307
✔ GTIN: 00785901507307
✔ Country of Origin: Mexico

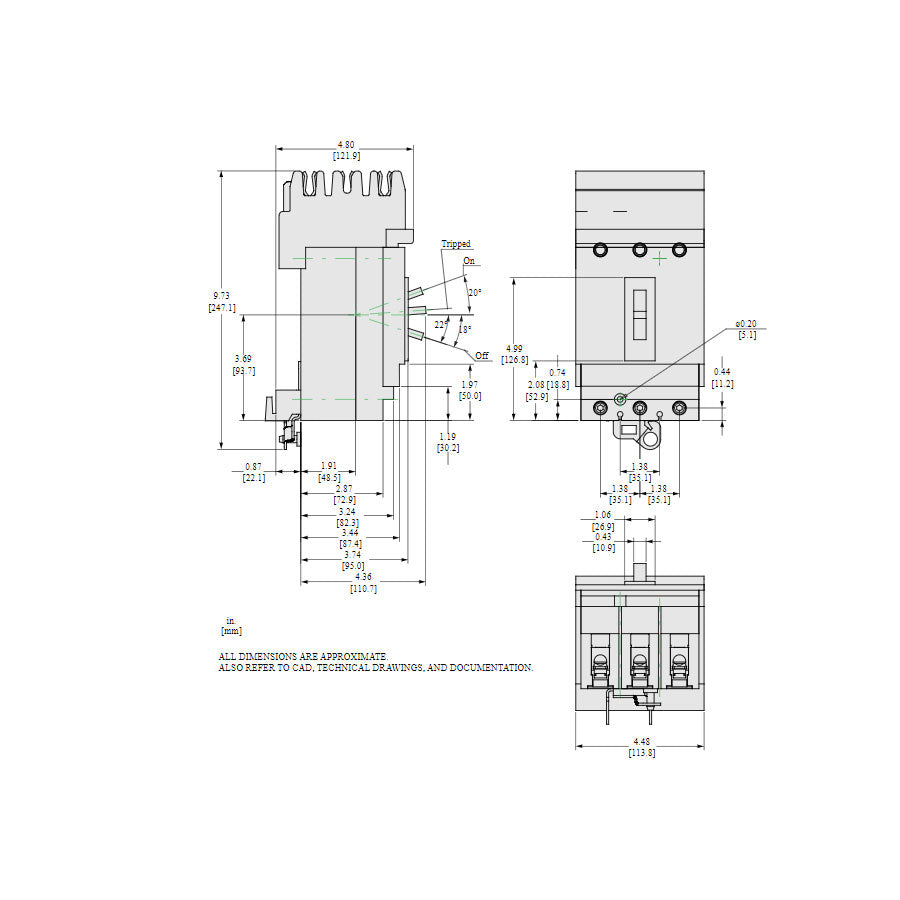

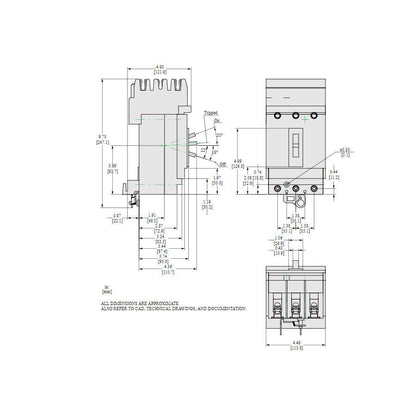

✔ Dimensions: 6.42 in (H) x 3.09 in (D) x 4.44 in (W)
✔ Weight: 5.75 lbs
✔ Wire Size: AWG 14
